Hilger&Kern รหัส TRUMMETER-RBTX-HUK-0001 เครื่องวัดความตึงสายพานแบบดิจิตอล,Belt tension measuring meter,meas.range:10～800Hz.

.Only an optimally tensioned belt achieves its maximum service life. Rolling bearings and wheels also last longer with the right belt tension. With the TRUMMETER measuring device, determining the belt tension is as easy as can be: Switch on the device, illuminate the belt and set it vibrating. You can already read the measurement result in Hertz (frequency) or Newton (tensile force) on the display. This enables clear logging (according to DIN EN ISO 9001 ff.) during commissioning or inspection.

Measuring Range	10 - 800 Hz
Digital Sample Error	1%
Display Errors	+/- 1 Hz
Total Error	5%
Temperature	+20 °C
Operation	+10 °C To +50 °C
Transportation	-5 °C To +50 °C
Housing	Plastic (ABS)
Dimensions Unit	80 X 126 X 37 Mm
Dimensions Case	226 X 178 X 50 Mm
Display	2 Lines LCD, 16 Characters
Voice Switching	10 Languages
Free Trum Length	Up To 9,99 M
Belt Mass	Up To 9,999 Kg/M
Voltage Supply	9 V Battery Or Battery

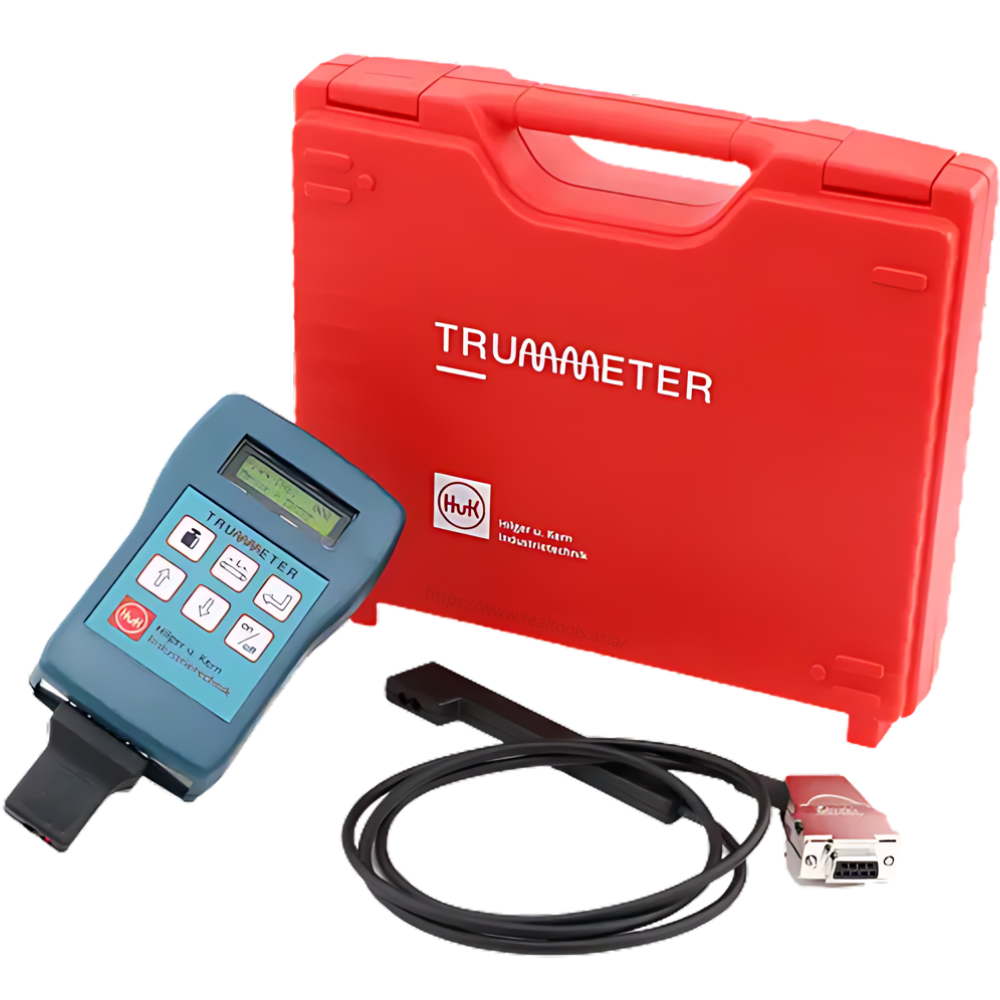

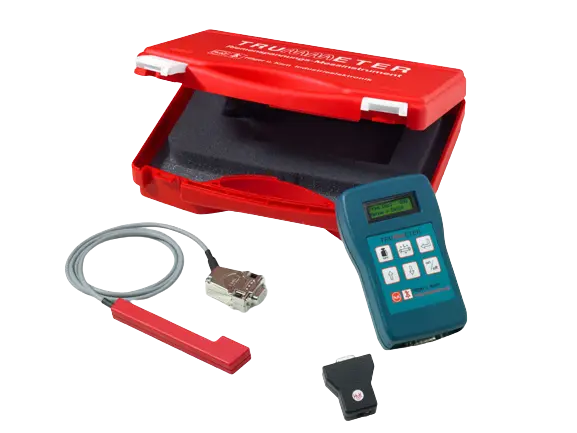

The measuring instrument with two measuring probes A measuring probe with cable for difficult-to-access measuring points A connector probe for open-access measuring points and for one-hand metering Transport case made of impact-resistant and resistant ABS A 9 V battery A Trummeter USB stick with the Hilger and Core calculation program
