Fluke รุ่น FLUKE-325 แคลมป์มิเตอร์,True-rms Clamp Meter

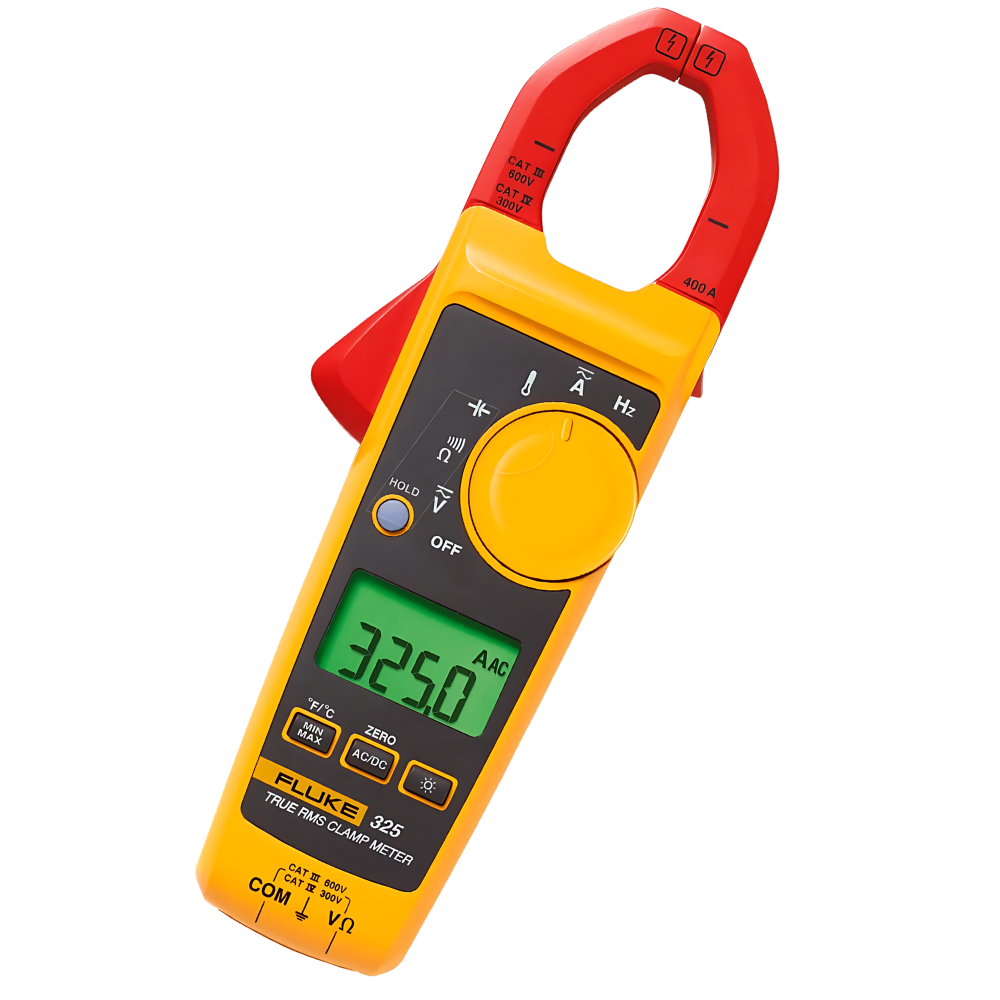

Fluke 325 True RMS Clamp Meter

The Fluke 325 True RMS Clamp Meter can measure an extended range of electrical parameters including AC/DC current (up to 400A), AC/DC voltage (up to 600V), resistance (up to 40kΩ), capacitance (up to 1000µF), and frequency (up to 500Hz). Further capabilities of this current clamp meter include continuity testing and surface temperature measurement between -10˚C and 400˚C whilst True RMS measurement safeguards accuracy for AC values.

The clear, backlit screen of the Fluke 325 displays readings and the options of different ranges and resolutions for the majority of measurement parameters give the user flexibility when using this clamp meter. In particular, it is easy to toggle between Fahrenheit and Celsius when measuring temperature and display hold provides the option of freezing a reading on screen. A simple push button allows AC/DC zeroing whilst the dial interface is very straightforward to use.

The Fluke 325 AC/DC clampmeter is light and portable, the inputs are also safety rated as Cat III to 1000V and Cat IV to 600V. This clamp meter is supplied with durable test leads, a type K thermocouple, and a soft carry case for ease of transportation.

• AC current: 0 to 400A
• AC/DC voltage: 0 to 600V
• Resistance: 0 to 40kΩ
• Capacitance: 0 to 1000µF
• Frequency: 500Hz
• Contact temperature: -10˚C to 400˚C
• True RMS
• Range and resolution options
• Continuity testing
• Type K thermocouple supplied as standard
• AC/DC zero button
• Backlit, digital screen
• Toggle from ˚C to ˚F
• Light, portable design
• Test leads and soft carry case
