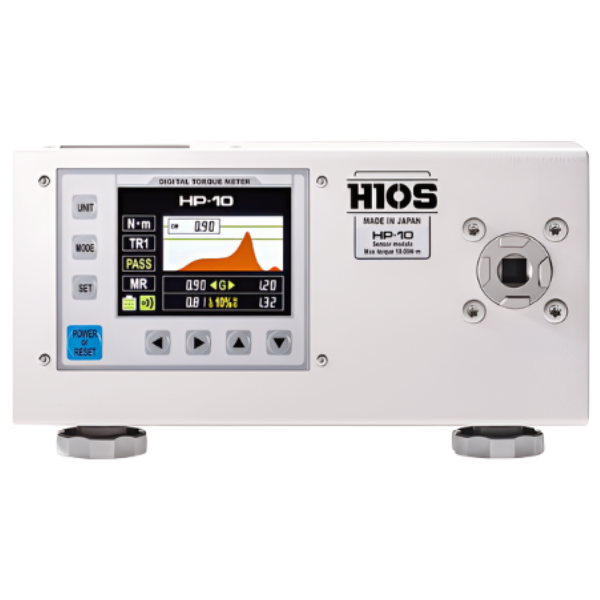

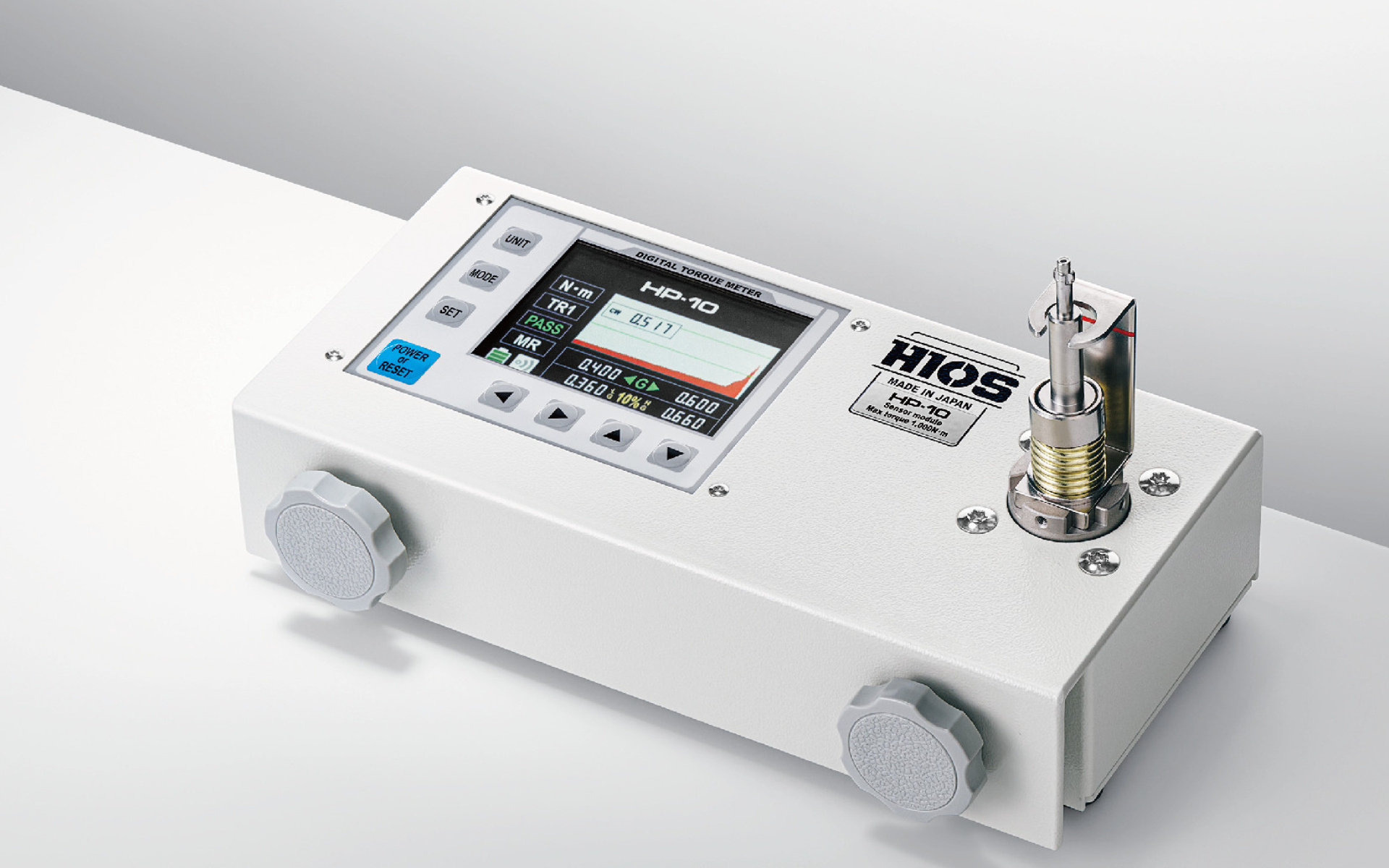

Hios รุ่น HP-10-R3 เครื่องทดสอบแรงบิดแสดงผลแบบตัวเลขแบบไร้สาย,Wireless digital torque meter,meas.range:0.015～1.00N.m

• supporting not only high-performance measurements but also safety

The HP series is a high-performance torque meter series that comes standard with data transfer capabilities in addition to basic features such as highly accurate torque measurement, measurement error check, highly visible display, and built-in battery for mobile use. In addition to accuracy and convenience, it also supports a wide range of measurements, from torque measurement of electric screwdrivers to torque wrenches. This high-performance series is highly popular in the manufacturing industry around the world.

• Send and receive data wirelessly

• The most powerful high-spec display in the history of the HP series. Easier to see and easier to use.

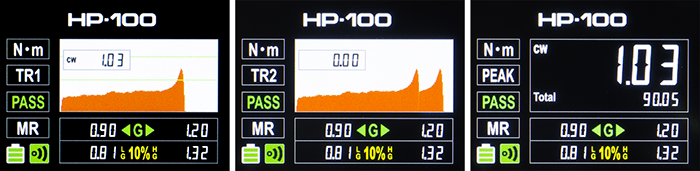

The new HP series model has an even stronger display. The continuity of the measured torque is realized with a graphical display. HIOS's highly accurate measurement method has evolved into three modes. You can check the torque change by pinpointing it with "peak value", "waveform", or "continuous waveform", or by visualizing it with a graph. We have taken care to make the display even easier to read than the precise and accurate display.

High-precision torque check and management for electric screwdrivers, torque screwdrivers, torque wrenches, etc.

• A wireless model is now available. Measurement data can be transferred wirelessly regardless of the measurement location. Cost reduction achieved by digitalizing and going paperless on-site
• Wired data output is also standard. Measurement results can be used for quality control records and maintenance
• An improved display. The larger display makes it easier to see and use
• Measurement mode now includes a waveform mode that visually displays the progression of torque values. Changes from the start of rotation to the peak and abnormal torque value detection are visualized, allowing for more detailed quality checks
• Measurements in CW (clockwise) and CCW (counterclockwise)
• Measurement units can be switched (N.m ←→ N.cm)
• Inspection report included with all products
• Can issue various product certificates, such as calibration certificates and traceability system diagrams
