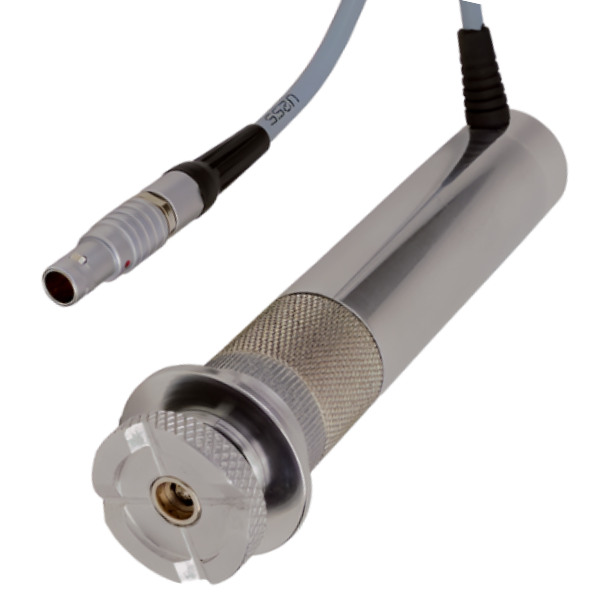

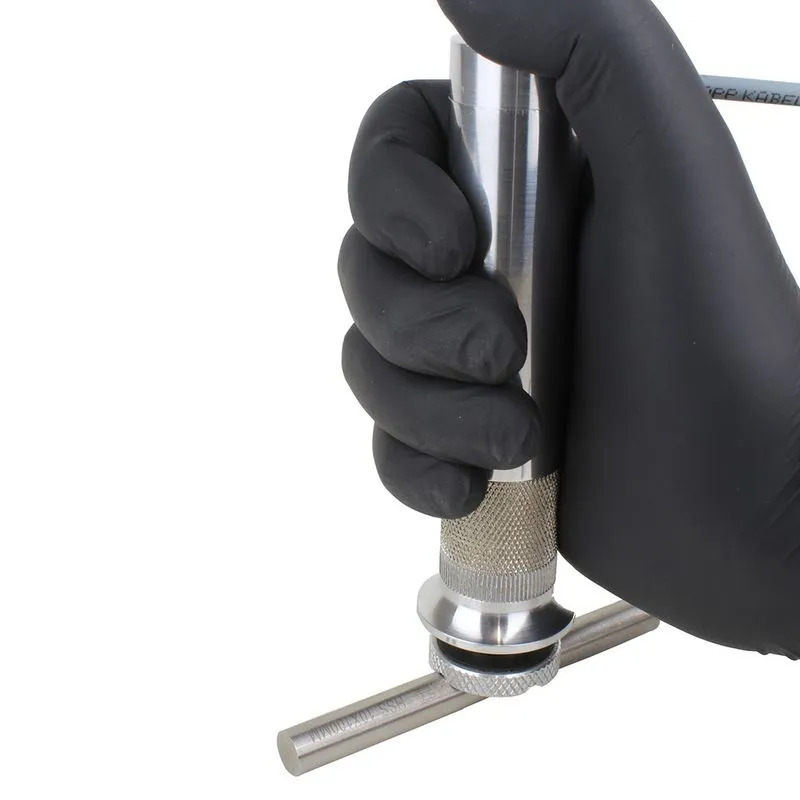

Novotest รุ่นUCI-U1-T-UD2โพรบสำหรับเครื่องวัดความแข็งรุ่นT-UD2,Ultrasonic Contact Impedance Probe U1 (10N, 50N, 98N)

Probe Type

U1 (98 N)

U1 (50 N)

U1 (10 N)

Overall dimensions, mm

Ø30х140

Ø30х140

Ø30х140

Weight, g, not more than

250

250

250

Roughness of the measured surface, Ra

3,2

2,5

1,5

Radius of curvature of the measured surface, mm

5

5

5

Weight of the controlled product, not less than, kg

0,1

0,1

0,1

Thickness of the controlled product, not less than, mm

1,5

1

0,8

Load, kgf

10

5

1

Model

Load

Features

Main applications

UCI U1

(98 N)

98 N

(10 kgf)

The main type of probe for solving most problems of hardness measurement. 10 kg load is to be applied for measurement (set automatically by the probe). Low requirements for surface cleanliness.

–   Heat-treated and cemented details.

–   Measuring in grooves, on teeth, on radius surfaces.

–   Measurement on the blades, on the internal surface of the pipes, openings.

UCI U1

(50 N)

50 N

(5 kgf)

The main probe type for the most tasks of hardness measurement. 5 kg load is to be applied for measurement (automatically controled by the probe). Average surface cleannes requirements.

–   Heat-treated and cemented parts, for example, shafts, turbines, gears, teeth, welds, heat affected zones.

–   Measuring in grooves, on teeth, in grooves, on radius surfaces.

–   Measurement on the blades, on the internal surface of the pipes, openings.

UCI U1

(10 N)

10 N

(1 kgf)

The reduced load probe is designed to measure the hardness of material with increased requirements to the imprint size (polished surfaces), to measure the hardness of surface hardened layers. 1 kg load is to be applied for measurement (automatically controled by the probe).
More sensible to the surface cleanliness, in comparison with U1 (50 N).

–   Nitrided and cemented surface layers of molds, stamps, stamps, thin-walled parts.

–   Bearings, lateral surfaces of saws teeth.

–   Measurement of hardness of hardening coatings.

–   Measurement on the blades, on the inner surface of the pipes, inside the holes.
