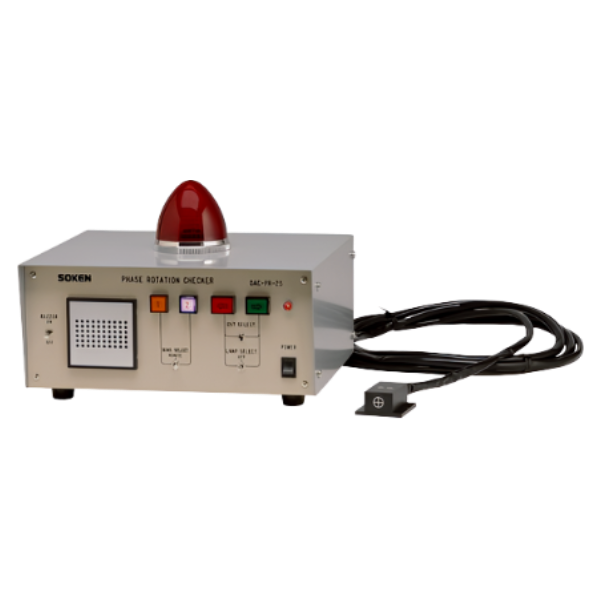

Soken รุ่น DAC-PR-2Sเครื่องตรวจสอบทิศทางการหมุนเฟสสำหรับมอเตอร์, Phase Rotating Direction Checke

DAC-PR-2S provides a non-contact means of detecting and displaying the direction of rotation of motors. The direction of a motor’s rotation can be determined even if the rotor

is visually hidden or absent, because this instrument senses the phase rotation of the leakage field of the motor’s rotating magnetic field.

The direction of rotation of a DC motor also can be determined when its rotor is in motion, generating a rotating magnetic field.

In addition, this phase rotation checker can also be used for any equipment that generates a shifting magnetic field, such as a linear motor.

• Applications

AC Motor, DC Motor, Pulse Motor, etc.

• Since it is non-contact, it is easy to incorporate into the line.
• The direction of rotation can be determined by the line lighting and buzzer.
• The NO/GO judgment of the direction of rotation is output as a warning light, buzzer, and contact signal.
• It is also equipped with a contact input for synchronization with the outside.
