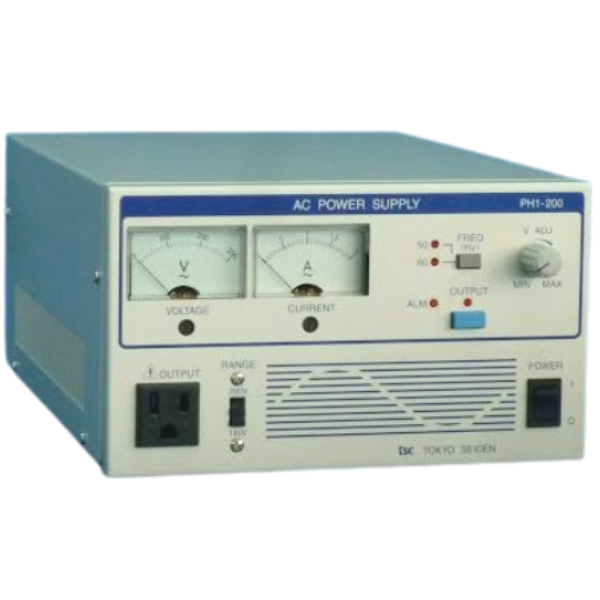

TokyoSeiden รุ่น PH1-200 เครื่องกำเนิดไฟฟ้ากระแสสลับ,AC stabilized power supply

name

AC POWER SUPPLY

Model name

PH1-200

PH1-201

PH1-202

input

Voltage

Single phase AC100V±10%

frequency

45-65Hz

capacity

600VA or less

Power factor

Over 60%

output

Voltage Range

0 to 140Vrms (140 range)/0 to 280Vrms (280 range)

Current Range

1.43A (140V range) /0.72A (280V range)

capacity

200VA

Load Power Factor

1.0 to 0.85 (output capacity is limited below 0.85)

frequency

50/60Hz switching

50Hz/60Hz switchable,
and variable from 10Hz to 999Hz (1Hz steps) However, there is a limit
to the output voltage below 45Hz

50/60/400Hz switchable

Voltage waveform distortion rate
(at rated resistive load)

Less than 0.5%

0.5% or less (45-99Hz)
1.0% or less (10-44Hz, 100-499Hz)
1.5% or less (500-999Hz)

0.5% or less (50/60Hz)
1.0% or less (400Hz)

Input voltage fluctuation
(at ±10% of rating)

±0.2% or less

Load fluctuation
(0⇔Rated load)

±0.6% or less

±1.0% or less (10-44Hz)
±0.6% or less (45-499Hz)
±2% or less (500-999Hz)

±0.6% or less (50/60Hz)
±2% or less (400Hz)

Frequency Stability

±0.01%

display

voltmeter

Rectifier 300VFS Accuracy ±2.5%FS

Ammeter

Moving iron type meter 2.0AFS Accuracy ±2.5FS

LED

Output ON, frequency, alarm (overload, over temperature)

others

Input Power

Terminal block (without power cord)

output

AC100V 3P outlet (front), terminal block (rear)

External dimensions

210Wx130Hx290D mm (excluding protrusions)

mass

9.6Kg
