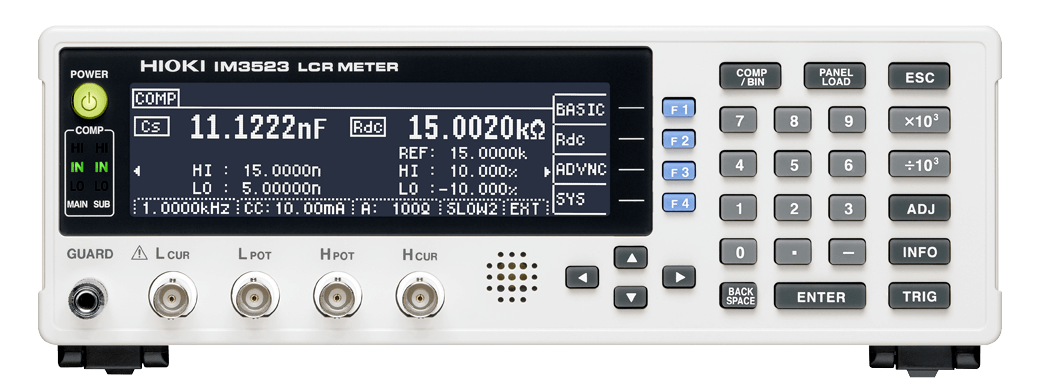

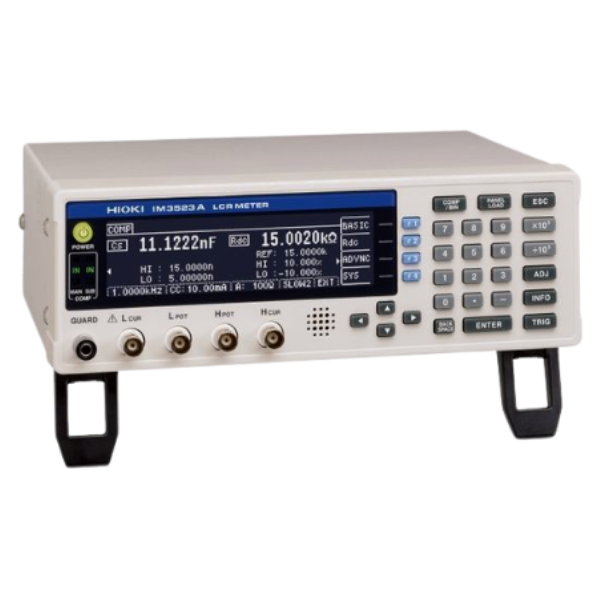

Hioki รุ่นIM-3523 เครื่องวัดความต้านทานขดลวด, LCR Meter,meas.frequency: 40Hz～200kHz, 5 mV～5 V, 2 ms Test Time,#M3523

For electronic component production lines and automated machines

• Basic accuracy of ±0.05% and wide range of measurement conditions (DC and 40 Hz to 200 kHz, 5 mV to 5 V, 10 µA to 50 mA can be set)
• When performing consecutive measurements of different parameters such as CD (120 Hz) and ESR (100 kHz), the overall measurement speed is improved to approximately 1/10 (compared to the conventional model 3532-50)

• Basic accuracy of ±0.05% and wide range of measurement conditions (DC and 40 Hz to 200 kHz, 5 mV to 5 V, 10 μA to 50 mA can be set)
• When performing different measurements such as CD (120 Hz) and ESR (100 kHz) consecutively, the overall measurement speed is improved to approximately 1/10 (compared to the conventional model 3532-50)
• Equipped with comparator and BIN measurement (classification function)
• High-speed measurement with a measurement time of 2 msec
