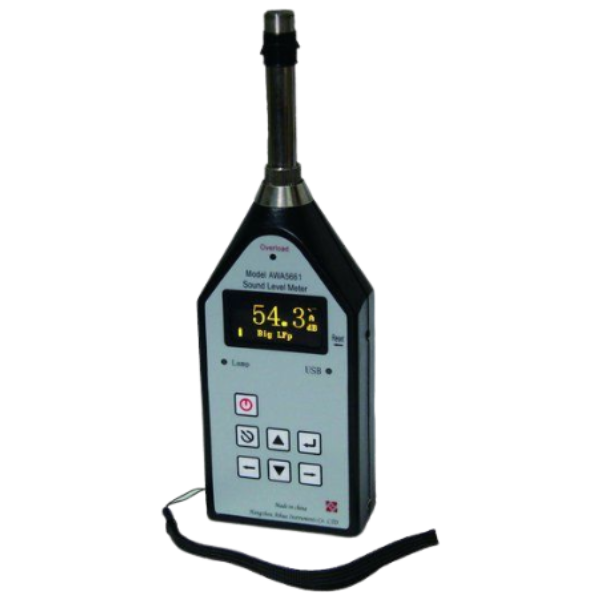

AIHUA รุ่นAWA5661-1Bเครื่องวัดความดังของระดับเสียง,Low noise measurement,sound level meter,class-1,meas.range:17dB~132dB

AIHUA รุ่นAWA5661-1Bเครื่องวัดความดังของระดับเสียง,Low noise measurement,sound level meter,class-1,meas.range:17dB~132dB
รหัสสินค้า SKU-21747
หมวดหมู่ Sound Level Meter(AIHUA)-เครื่องวัดเสียง
ราคาปกติ 55,000.00 บาท
ลดเหลือ 0.00 บาท
สถานะสินค้า Pre-Order
ลงสินค้า 22 พ.ค. 2567
อัพเดทล่าสุด 22 พ.ค. 2567
คงเหลือ 1 ชิ้น
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

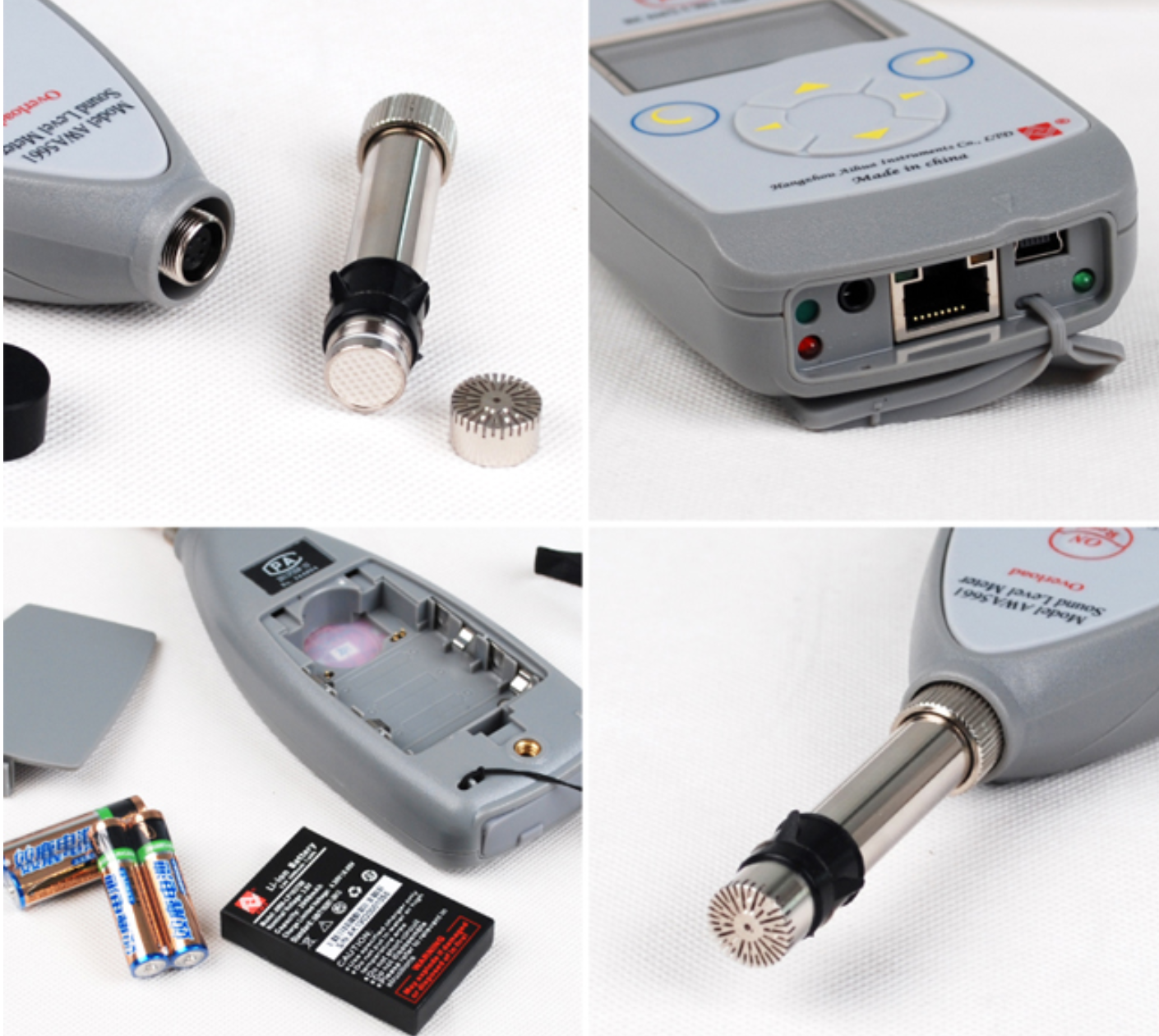

AWA5661 Series  Sound Level MeterThe model AWA5661 sound level meter has adopted advanced digital detection technology and has reliable and steady performance, wide linear operating range etc.

  • Product Uses

    • Widely use in Industrial Noise Surveys; machinery, vehicles, ships and etc
    • Community and industrial noise measurement
    • Checking compliance with noise rating recommendations
    • Traffic noise measurment
  • Digital signal processing technology, wide dynamic range and high precision.
  • Modular design, select on demand, cost-effective.
  • Wide temperature design, the working temperature range is increased to -15°C to 50°C.
  • Comply with IEC 61672:2002, GB/T 3785-2010 Class 1.
  • Choose a variety of microphones to get different measurement ranges.

Items

AWA5661-1

AWA5661-1B

AWA5661-1C

AWA5661-2

AWA5661-3

Specialty

Precision pulse

Low noise measurement

High noise measurement

Precision integral

Super function

Microphone

AWA14425

AWA14411

AWA14435

AWA14425

Frequency Weighting

A, C, Z

Time Weighting

F, S, I, Peak

Frequency Range

10 Hz ~ 20 kHz

Meas. Range

25dB(A)~140dB(A)

17dB(A)~132dB(A)

45dB(A)~160dB(A)

25dB(A)~140dB(A)

Self-generated Noise

<18 dBA

<10 dBA

<38 dBA

<18 dBA

Display

128 × 64 OLED

Outputs

AC, DC, RS 232

AC, DC, RS 232, USB

Sampling Frequency

48kHz

Integrating Function

NO

YES

Integrating Time

NO

Maunal,10s,1m,

5m,10m,20m,

30m,1h,2h,4h,

8h,12h,16h,24h

1s~24h

Main parameters of measurement

Lp, Lmax, Lpeak

Lp, Leq,T, Lpeak, Lmax, Lmin, SEL,E

LFp, LSp, LIp,Leq,t, Lpeak, Leq,T, LFmax, LFmin,LSmax,LSmin,LImax,LImin,SEL,Lex8h,LAVG,TWA,DOSE,L5,L10,L50,L90, L95,SD,Ts,Tm, Volt,Date,Time,E.

Statistical analysis function

NO

Optional (software authorized)

YES

Over limit indication

YES, Limits can be settled

Data Storage

NO

YES,8000 Groups

Recoding Function

NO

Optional (softwar authorized)

Power Supply

Battery 4×LR 6 or Lithium battery

Working Temperature

-15 ℃~ 50 ℃
