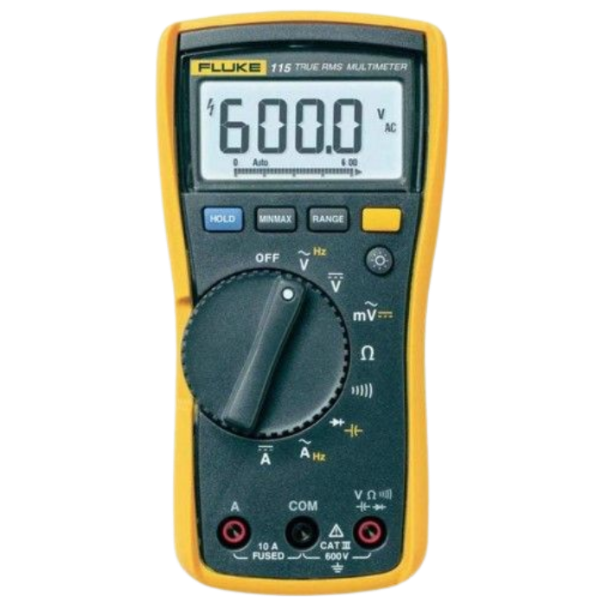

Fluke รุ่น Fluke-115 ดิจิตอลมัลติมิเตอร์ขนาดกะทัดรัด,True RMS Digital Multimeter

DC Millivolts

Range

600 mV

Resolution

0.1 mV

Accuracy

0.5% + 2

DC Volts

Range

6 V
60 V
600 V

Resolution

0.001 V
0.01 V
0.1 V

Accuracy

0.5% + 2

Auto Volts

Range

600 V

Resolution

0.1 V

Accuracy

2.0% + 3 (dc 45 to 500 Hz)
4.0% + 3 (500 Hz to 1kHz)

AC Millivolts1 True RMS

Range

600 mV

Resolution

0.1 mV

Accuracy

1.0% + 3 (dc 45 to 500 Hz)
2.0% + 3 (500 Hz to 1kHz)

AC Volts¹ True RMS

Range

6 V
60 V
600 V

Resolution

0.001 V
0.01 V
0.1 V

Accuracy

1.0% + 3 (dc 45 to 500 Hz)
2.0% + 3 (500 Hz to 1kHz)

Continuity

Range

600 Ω

Resolution

1 Ω

Accuracy

Beeper on <20 off> 250; detects opens or shorts of 500 µs or longer

Ohms

Range

600 Ω
6 kΩ
60 kΩ
600 kΩ
6 MΩ
40 MΩ

Resolution

0.1 Ω
0.001 kΩ
0.01 kΩ
0.001 MΩ
0.01 MΩ

Accuracy

0.9% + 2
0.9% + 1
5% + 2

Diode Test

Range

2 V

Resolution

0.001 V

Accuracy

0.9% + 2

Capacitance

Range

1000 nF
10 µF
100 µF
9999 µF
100 to 1000 µF
>1000 µF

Resolution

1 nF
0.01 µF
0.1 µF
1 µF

Accuracy

1.9% + 2
1.9% + 2
5% + 20

Lo-Z capacitance

Range

1 nF to 500 µF

Accuracy

10% + 2 typical

AC Amps True RMS (45 to 500 Hz)

Range

6 A
10 A
20 A overload for 30 seconds max

Resolution

0.001 A
0.01 A

Accuracy

1.5% + 3

DC Amps

Range

6 A
10 A
20 A overload for 30 seconds max

Resolution

0.001 A
0.01 A

Accuracy

1.0% + 3

Hz (V or A Input)²

Range

99.99 Hz
999.9 Hz
9.999 kHz
50.00 kHz

Resolution

0.01 Hz
0.1 Hz
0.001 kHz
0.01 kHz

Accuracy

0.1% + 2
