Leitech รหัสสินค้า L-M6x1.0-DC เกจวัดความลึกสำหรับเกลียวในอ่านค่าแบบดิจิตอล , Digi-COMBI - Digital Depth Readout ,Thread size: M6 x 1.0 , meas.depth: 24 mm.

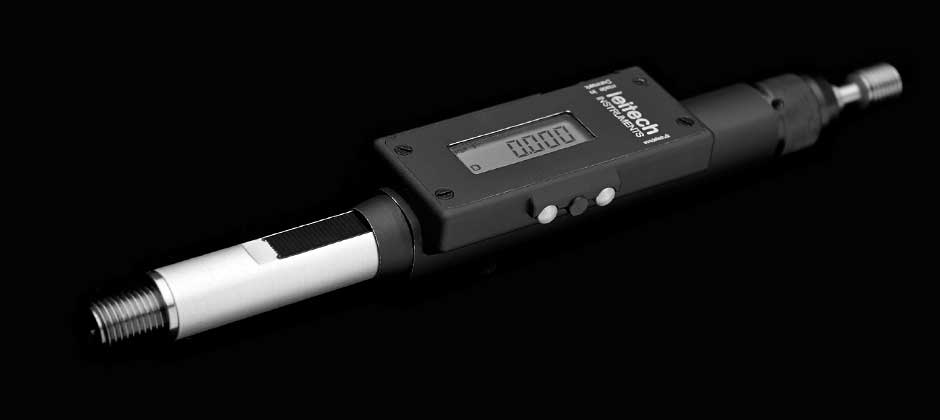

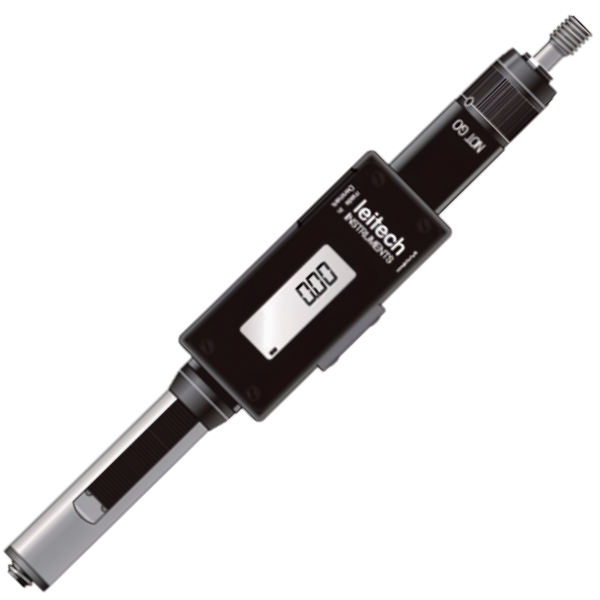

• Leitech Digi Gauge

The Leitech Digi Gauge is a refined model of the Leitech High-Resolution Gauge. The Digi Gauge reveals the exact measurement on a digital screen. By using the Leitech Digi Gauge you can improve the accuracy of your measurement.

The resolution of the scale on Leitech Digi Gauge System is 0.01 mm/0.0005".

When the requirement for the accuracy is not at this scale, we recommend Leitech Combi gauge, which has a measuring accuracy of 0.5 mm/0.025".

Alternatively, we recommend the Leitech High-Resolution Gauge, which has a measuring accuracy of 0.1 mm/0.005".

• Maintenance

Replacement of inserts and calibration of depth.
A new gauge in approx. 2 min.!

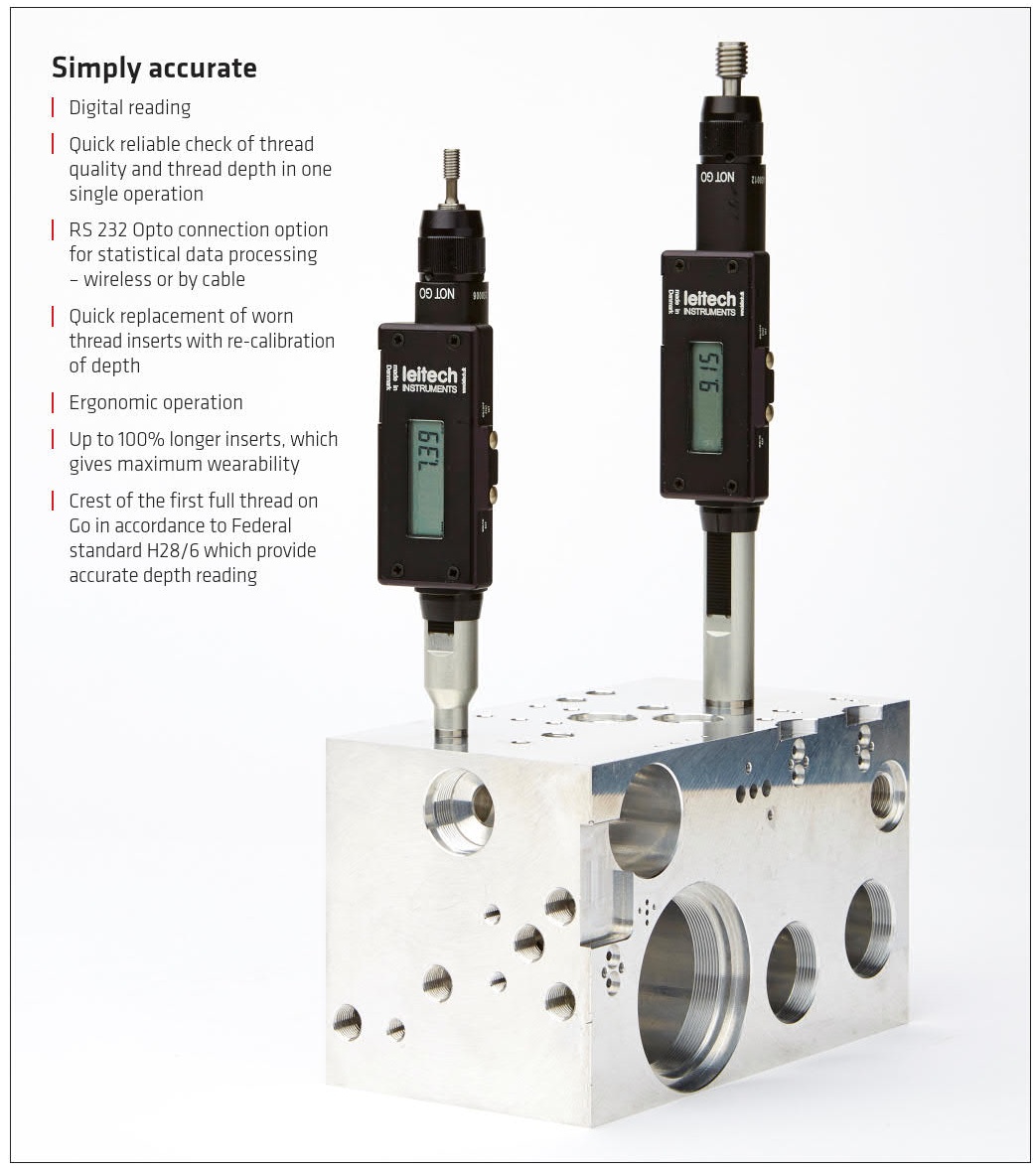

• Digital Depth Readout
• Quick reliable check of thread quality and thread depth in one single operation
• RS 232 Opto connection option for statistical data processing wirelessly or by cable
• Quick replacement of worn thread inserts with re-calibration of depth
• Ergonomic operation
• Up to 100% longer inserts, which gives maximum wearability
• Crest of the first full thread on Go in accordance to Federal standard H28/6 which provide
• accurate depth reading

• Resolution of 0.01 mm / 0.0005 inches
• Measuring accuracy +/- 0.025 mm / .0001"
• Display switch between mm and inches
• Thread size from 4 mm – 22 mm
• Data output: RS 232 Opto by cable or wireless
• The accuracy of measuring liner is +/-1mμ.
• Repeatability: +/-1mμ due to digital readout.
• Accuracy of depth - Depends on depth calibration of the gage, and operator proficiency.
