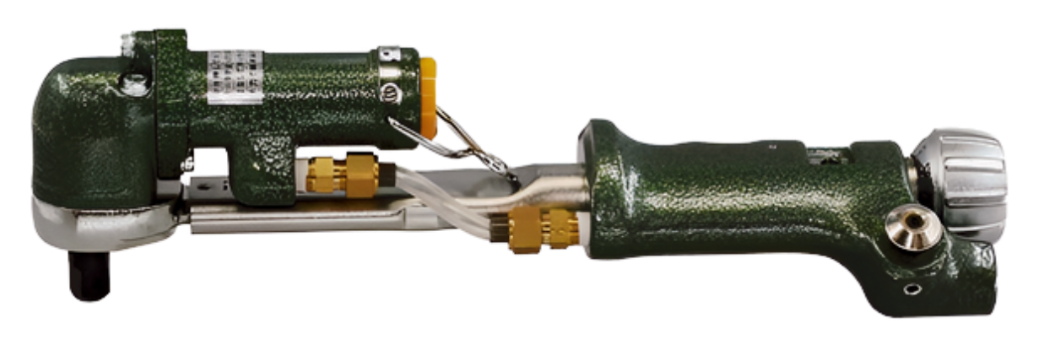

Tohnichi รหัส CSPFMA100N3X15D A10N3 เครื่องวัดแรงบิดกึ่งอัตโนมัติแบบลม , Semi-Automatic Airtork, 3～10, 0.1N.m, 3/8" Square Drive

Accuracy +/- 3%

STANDARD, S.I.

A10N3

A25N3

A50N3

-

A100N3

A180N3

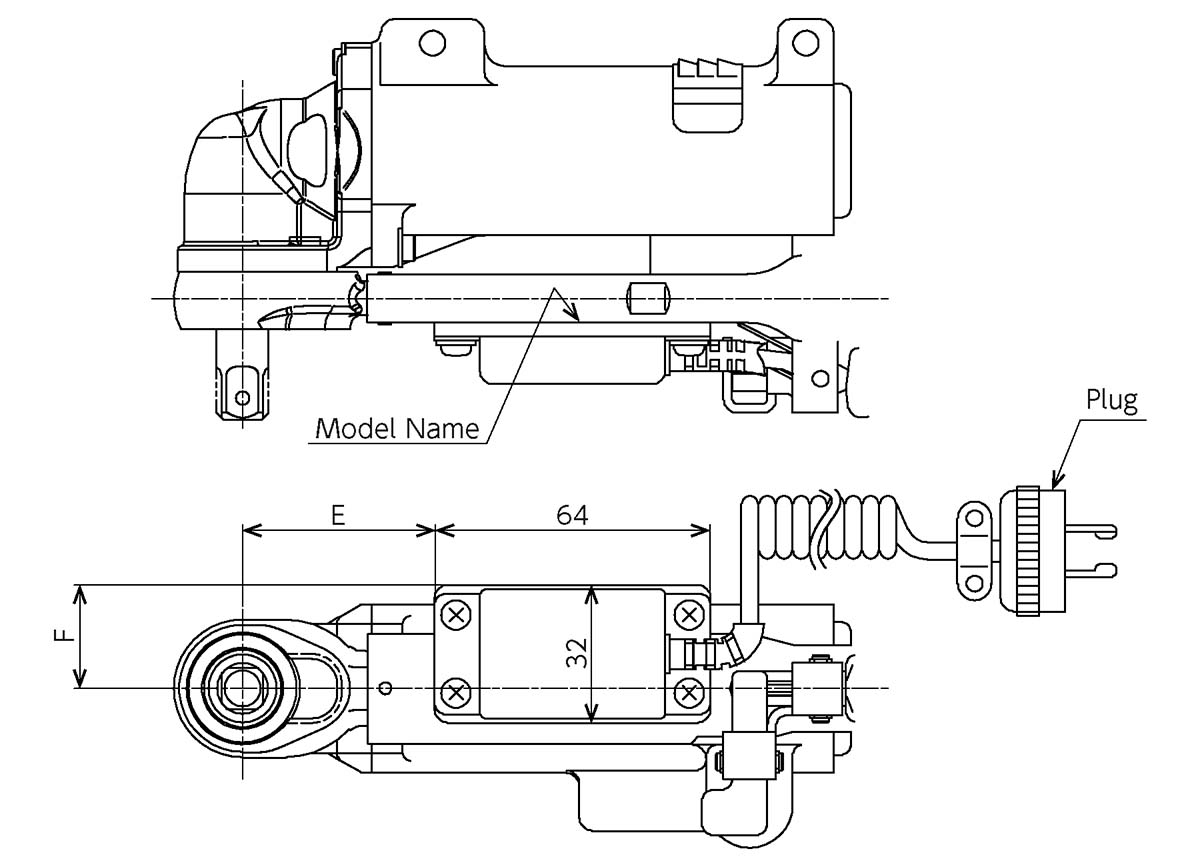

W/ LIMIT SWITCH

ALS10N3

ALS25N3

ALS50N3

-

-

-

N.m

Range

3-10

5-25

10-50

-

20-100

40-180

Grad.

0.1

0.25

0.5

-

1

2

METRIC MODEL

A100M3

A250M3

A500M3

-

A1000M3

A1800M3

W/ LIMIT SWITCH

ALS100M3

ALS250M3

ALS500M3

-

-

kgf.cm

Range

30-100

50-250

100-500

-

200-1000

400-1800

Grad.

1

2.5

5

-

10

20

AMERICAN MODEL

A90I3-3/8

A200I3-3/8

A400I3-3/8

A800I3-3/8

A75F3-3/8

-

A130F3-1/2

W/ LIMIT SWITCH

ALS90I3-3/8

ALS200I3-3/8

ALS400I3-3/8

-

-

-

lbf.in/ lbf.ft

Range

30-90

50-200

100-400

[lbf.in] 200-800

[lbf.ft] 15-75

-

30-130

Grad.

1

2.5

5

[lbf.in] 10

[lbf.ft] 1

-

2

Provisional Tightening [Nm]

1.8

2.5

5

Free Rotation [r.p.m]

750

800

Air Pressure [MPa]

0.6

Air Mass Flow [m3/min]

0.2

0.29

0.31

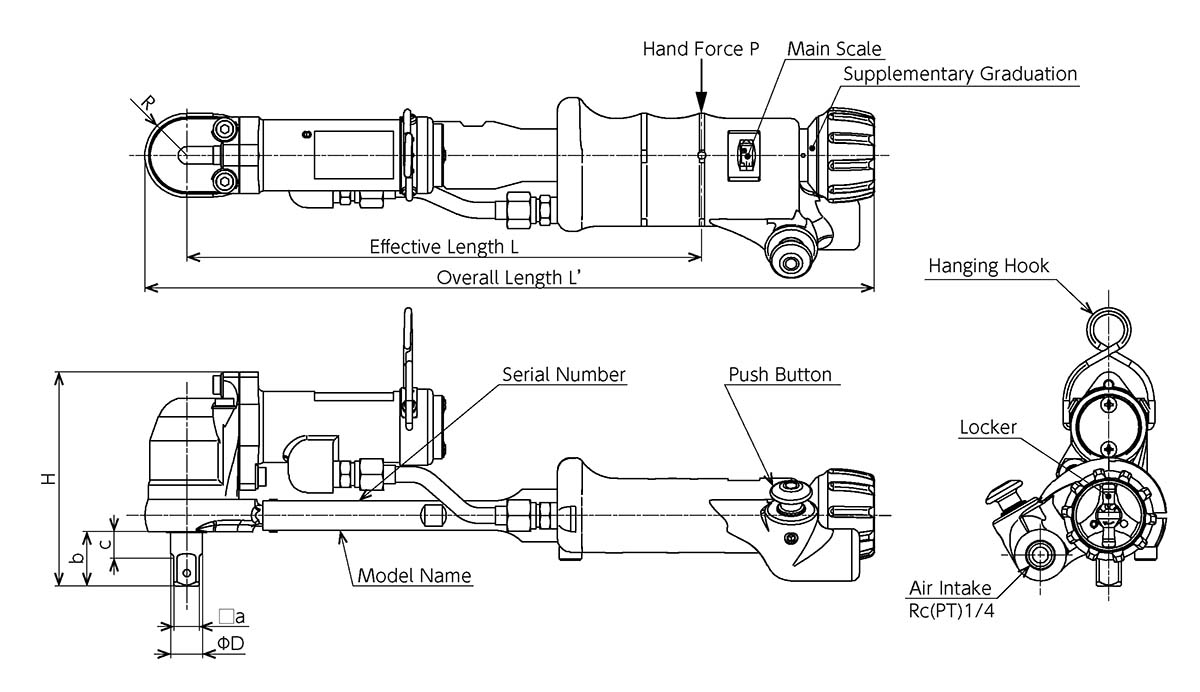

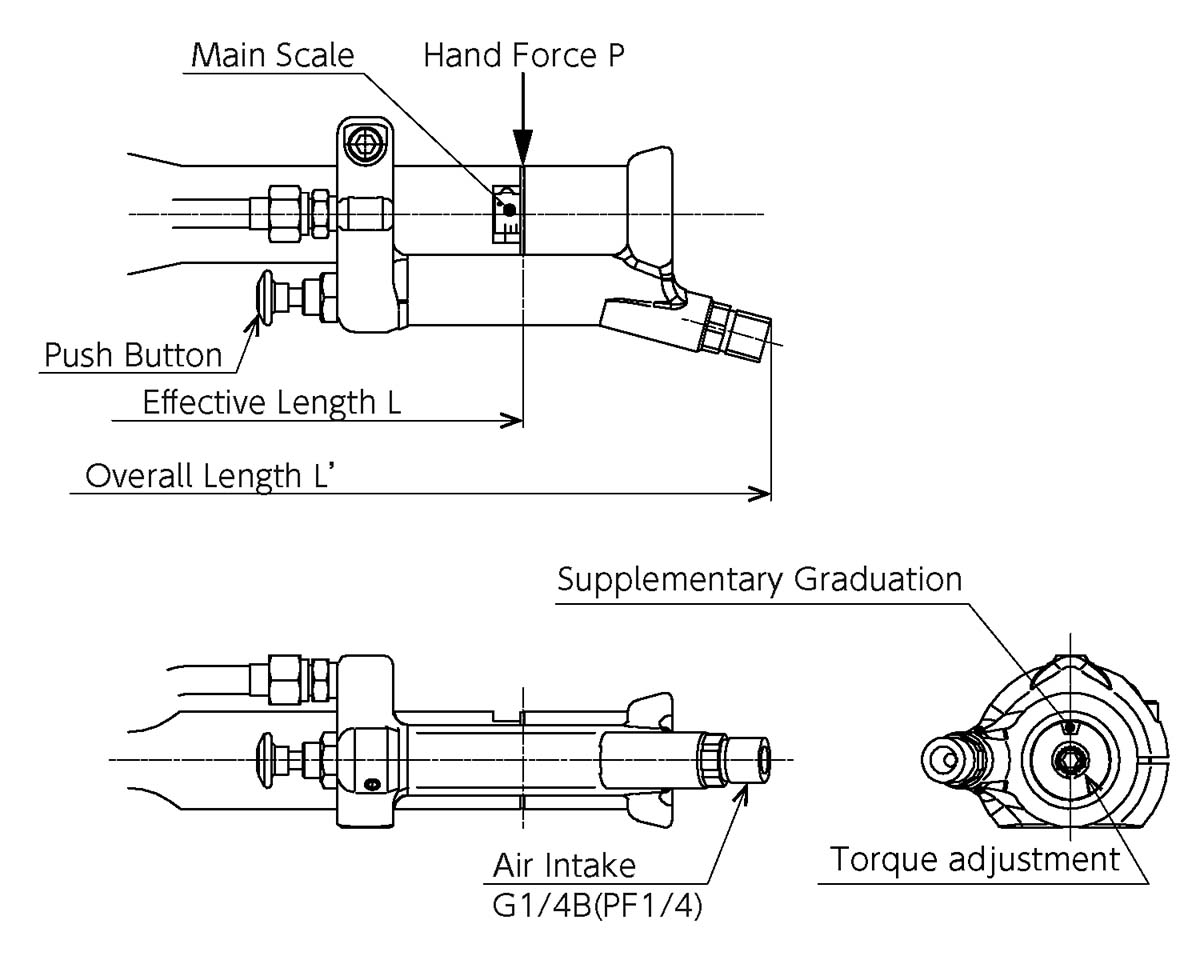

L

196

252

400

L’

277

338

487

H

82.8

95.2

114

R

16

17

20

□ a

9.53

12.7

b

20.9

24.9

26.4

c

11

12.2

φ D

12

16

φ d

3.1

4.1

Weight [kg]

1.0 (1.2)

1.4 (1.7)

2.6 (3.5)
