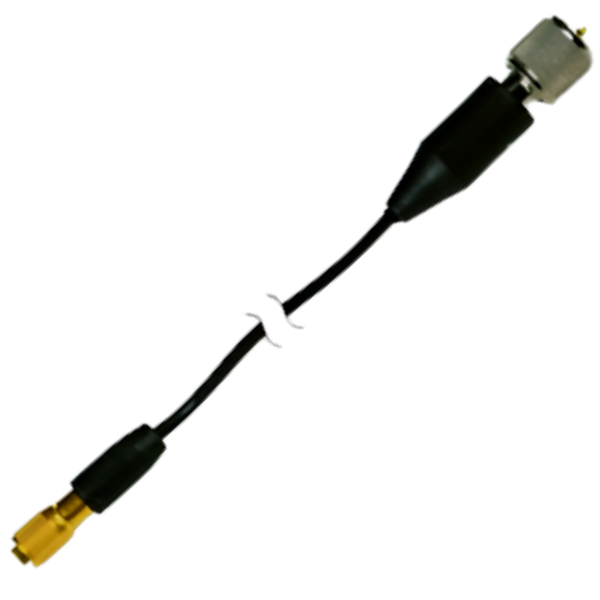

PCB รหัสสินค้าPCB-018G10สายสัญญาญ,Cables miniature, lightweight, black coaxial cable, vinyl insulation jacket, 10-ft, 5-44 plug to 10-32 plug

connector/cable end 1

connector type

5-44-KoaxialStecker

Connector (signal)

female

Connection method

coupling

connection threads

5-44 cap ring

temperature range

- 320 … 500 ° F

-196 … 260 ° C

housing material

brass

size - od

0.16 in

4.1 mm

size - length

0.66 in

17 mm

mass

0.02 oz

0.72 grams

Connector/cable end 2

connector type

10-32 coaxial plug

Connector (signal)

male

Connection method

coupling

Thread

cap 10-32 ring

strain relief

moulded spout

Temperature range

-320 … 500 ° F

-196 … 260 ° C

Size - od

0.25 in

6.4 mm

size - length

0.94 in

24 mm

Mass

0.1 oz

2 grams

cable

cable length

10 ft

3 m

cable type

Thin coaxial cable

Temperature range

-22… 221 ° F

-30 … 105 ° C

train load capacity

25 lb

110 N

[1]

capacity (head to head at 21 ° C)

55 pF / ft

pF/m for 180

diameter of the sheath

0,054 in

1.37 mm

[1]

Jacket material

PVC

Jacket colour

Black

wire version

solid

conductor material

Tinned copper

Head diameter (28 AWG)

0.013 in

0.33 mm

[1]

Conductor insulation

Polypropylene

Shielding

Braided (at least 90% covered)

Shielding material

Copper

Minimum bending radius

0.5 in

14.0 mm

Mass

0.16 oz/ft

14.88 gm/m

[1]

Notes

[1]

Typically
