Mitutoyo รหัส 192-614-10 เกจวัดความสูงแบบดิจิตอล,LCD digiMatic height gauge,0～600mm,resolution:0.02mm-0.005mm,accuracy:-/+0.05mm,8.3kg mass

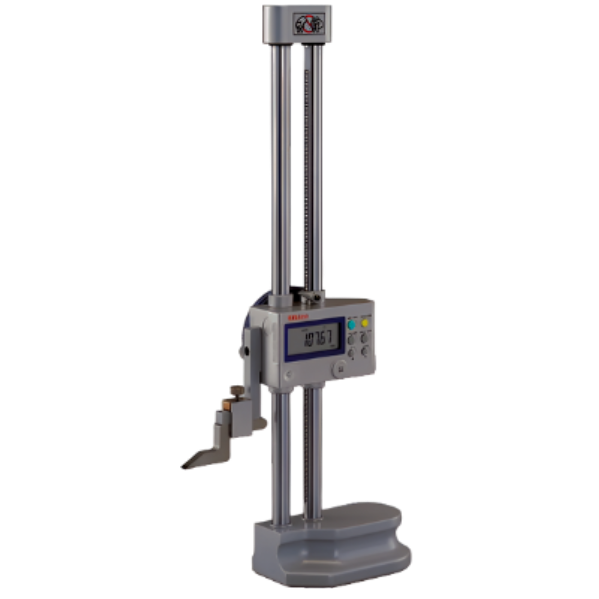

192-614-10 Mitutoyo Digimatic Height Gage – Standard Type with SPC Data Output: 0-600mm

Mitutoyo 192-614-10 electronic height ruler is a high quality product used to measure the height of parts within the range of 600mm. To flatten, you can attach a folding clock to use. Measure most accurately and quickly. Many applications for industry, construction, manufacturing, mechanical engineering, etc. auxiliary helps measure technical parameters for equipment, materials or machinery.

• Available in Metric and Inch/Metric models
• Metric models are available in three measurement ranges
• Inch/Metric models are available in four measurement ranges
• Resolution is switchable between 0.005mm/.0002” and 0.01mm/.0005”
• Display features large LCD characters (11mm in height) for easier measurement reading and reduces eye strain
• Large function buttons on display are positioned for easy operation
• Inclined slider handle improves slider ergonomics
• Base is shaped to provide a secure grip
• Coarse/fine feeding switch for fast adjustments and precise measurements

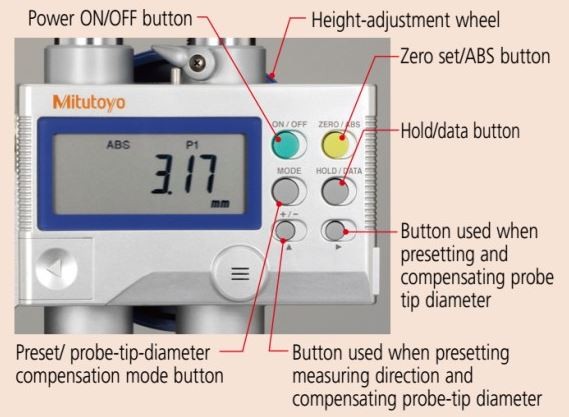

• Functions include Zero setting, ABS/INC switching, 2 Presets, Probe tip diameter compensation, -/+ switching, Power On/Off, Data hold, Data output, and inch/mm conversion (on inch/metric models only)
• Alarm: Low Voltage, Counting Value Composition Error

The Mitutoyo 192-614-10  Digimatic Height Gage – Standard Type with SPC output achieves highly accurate height measurements with improved ease of operation. Measurements are shown on an easy-to-read LCD display. The Mitutoyo standard type digimatic height gage provides precise measurement in a unit that is easy to use. This height gage has a rigid, double-column structure which ensures high measuring accuracy and repeatability. The included carbide-tipped long scriber is highly durable and provides accurate marks on your workpiece.
