Tohnichi รุ่นDB-100N-Sประแจปอนด์แบบหน้าปัดเข็ม,Dial Indicating Torque Wrench,Capacity:10～100,1N.m,1/2"Square Drive,#DB100N-S

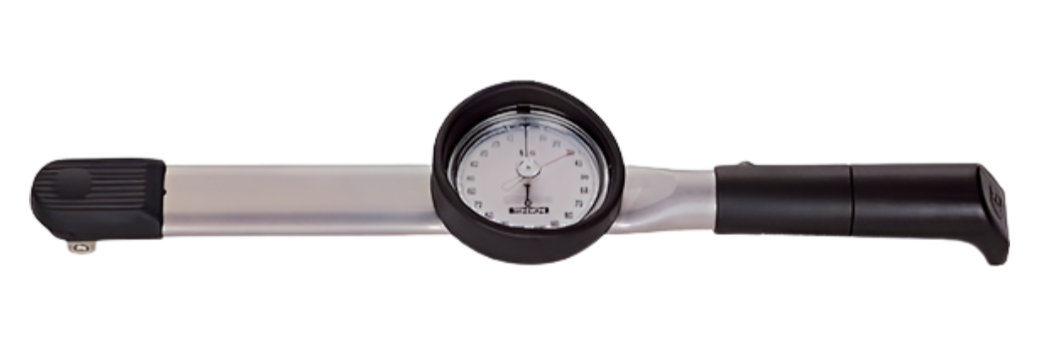

The Tohnichi DB 100N-S torque wrench is an indicator type wrench with an arrow display of the current tightening torque. The range of the fixed moment is 10.0 N•m - 100.0 N•m. The duplicate arrow retains the last tightening torque. The key pressure gauge is protected from damage by a rubber rim. Rubber key handle. Light weight and easy to use. The relative measurement error does not exceed ±3%. Tightening is carried out in two directions. The accuracy of torque measurement is independent of the operator's hand position. Scope of use: to check and control the operations performed when tightening fasteners. Connecting square 1/2". Key length 1398 mm. Key weight 0.7 kg.

• Wide range and high accuracy
• Dial indicating torque wrench.
• Ideal for torque quality inspections

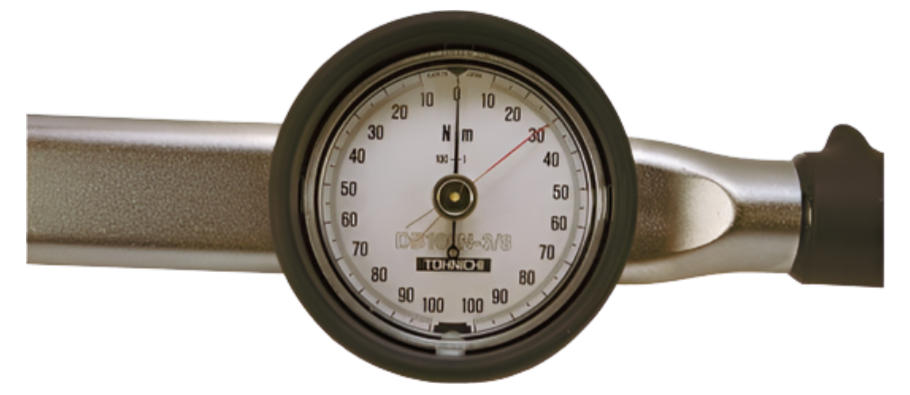

• Easy to ready dial face has follower hand memory pointer that stays on peak torque for convenient reference
• Use for tightening purposes by simply rotating the dial to the desired torque. Completed tightening is achieved when the pointer indicates "0".

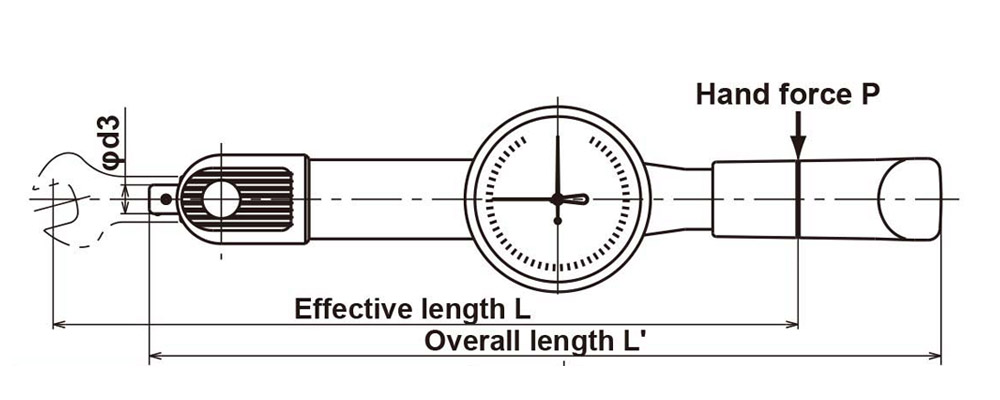

• DB is not length dependent. Therefore, accuracy is consistent regardless of where the hand is placed during operation.
• The dial indicator has a full-surround protective cover to prevent damage to external objects (except DB420N, DBE, and DBR series models).

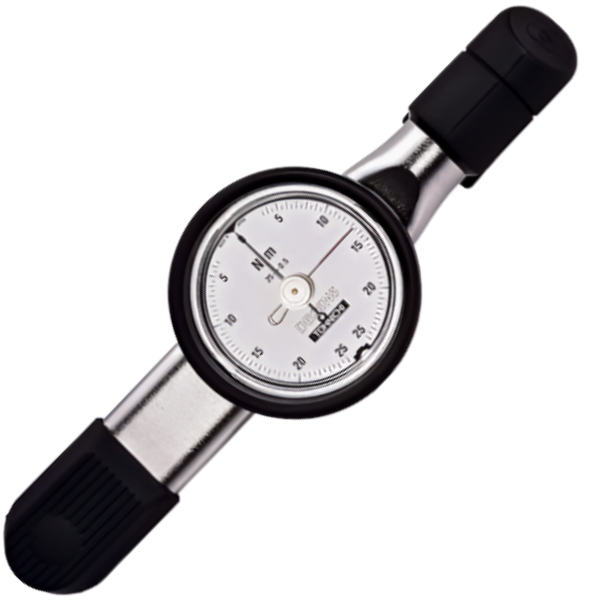

• DB25N to DB280N models have a resin grip. Lowest torque range models have index finger handles designed to guide you to use light hand force to avoid possible over-torque.
• DBE has an extension handle.
• For DBR models, applies load by lever block or winch.
• Applicable for international use including the EU region. Compliant with calibration procedures of ISO 6789 Type I Class B.
