List-Magnetik รุ่นMP-800เครื่องวัดสนามแม่เหล็ก,เกาส์มิเตอร์ขนาดกะทัดรัด,Compact magnetic field meter/gaussmeter,MP-800

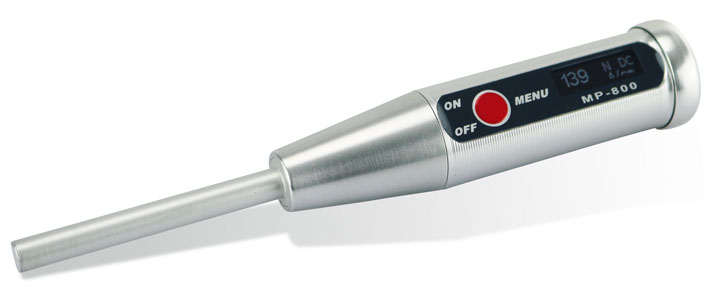

The List-Magnetik MP-800 is small and compact, but it works just as accurately as any other magnetometer. The MP-800 is easy to operate and can accurately measure the maximum value of DC and AC magnetic fields as well as pulsed magnetic fields. In order to be able to perform any measuring task, the device has different measuring ranges and measuring units such as A/cm, Gauss/Oersted and (milli)Tesla.

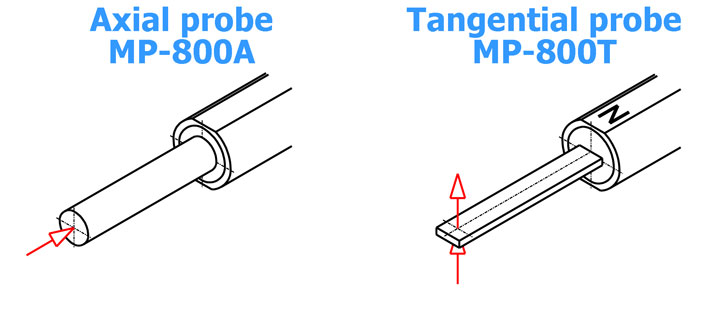

We provide you with practical magnetic field testers that are compact and hand-held, such as MP-800A with axial probe) or MP-800T with tangential probe .
The axial probe measures the magnetic field in the axial direction, and the sensor distance measures The head end is 2.0mm, which is suitable for surface or in-hole measurement.
The best areas of application for tangential probes are air gaps, cavities and workpiece surfaces for crack detection.

Using magnetic field meter/magnetometer/Gauss meter/Tesla meter (different names for the same type of instrument), during the magnetic field measurement process, small differences in magnetic field strength can be seen. From low magnetic field values just above the earth's magnetic field, lower remanence all the way up to magnetic field peaks, List-Magnetik has a solution. List-Magnetik magnetic field meters are very durable and you can get high repeatability during magnetic field testing. Measurement results. Additionally, we provide calibration standards (reference magnets) so you can check the accuracy of your magnetic field tester at any time.

• Axial and tangential probes

• Simple operation
• Precise measurements
• Measurement of direct and alternating fields
• Measurement of maximum values for pulse fields
• Reproducible field strength values
  • in measuring ranges of low field strength values just above the earth's magnetic field
  • above the residual magnetism/remanence with low residual magnetic field values up to peak fields

• MP-800TL with spare battery and case,
• including a calibration certificate.
