Magsys รุ่นHGM-09sเครื่องวัดความแรงสำหรับสนามแม่เหล็ก,Handheld Gauss Meter with Standard Transversal Probe สำเนา

The MagSYS HGM09s is a handheld gauss meter that offers complete functionality with only 4 push buttons that is very easy to use and has a good price/performance ratio.

Handheld gauss meters are used to measure DC and AC magnetic fields. The measurands are flux density in Tesla or Gauss and the field strength in Amps per meter.

The MagSYS HGM09s comes with rechargeable batteries is easy to use as a portable device.

The HDM09s also comes with a power supply for stationary use. A USB cable included with delivery acts as an additional battery charger.

The measuring range is up to 4.5 Tesla for the flux density and 3800 kA/m for the field strength, respectively. The resolution is down to 1 µT or 1 A/m.

The standard HGM09s kit comes equipped with a transversal probe.

An axial probe and a thin transversal probe for the measurement inside small gaps are also available.

All probes have an internal memory for identification, parametrization, and linearization.

CE Certified

• Peak Hold (positive and negative)
• Linearity adjustment
• Null balance
• Battery condition indicator with energy-saving mode
• The measuring values can be easily stored and seen on the PC by pressing a key via the USB interface and a software package. Service and control functions are also available with the software.

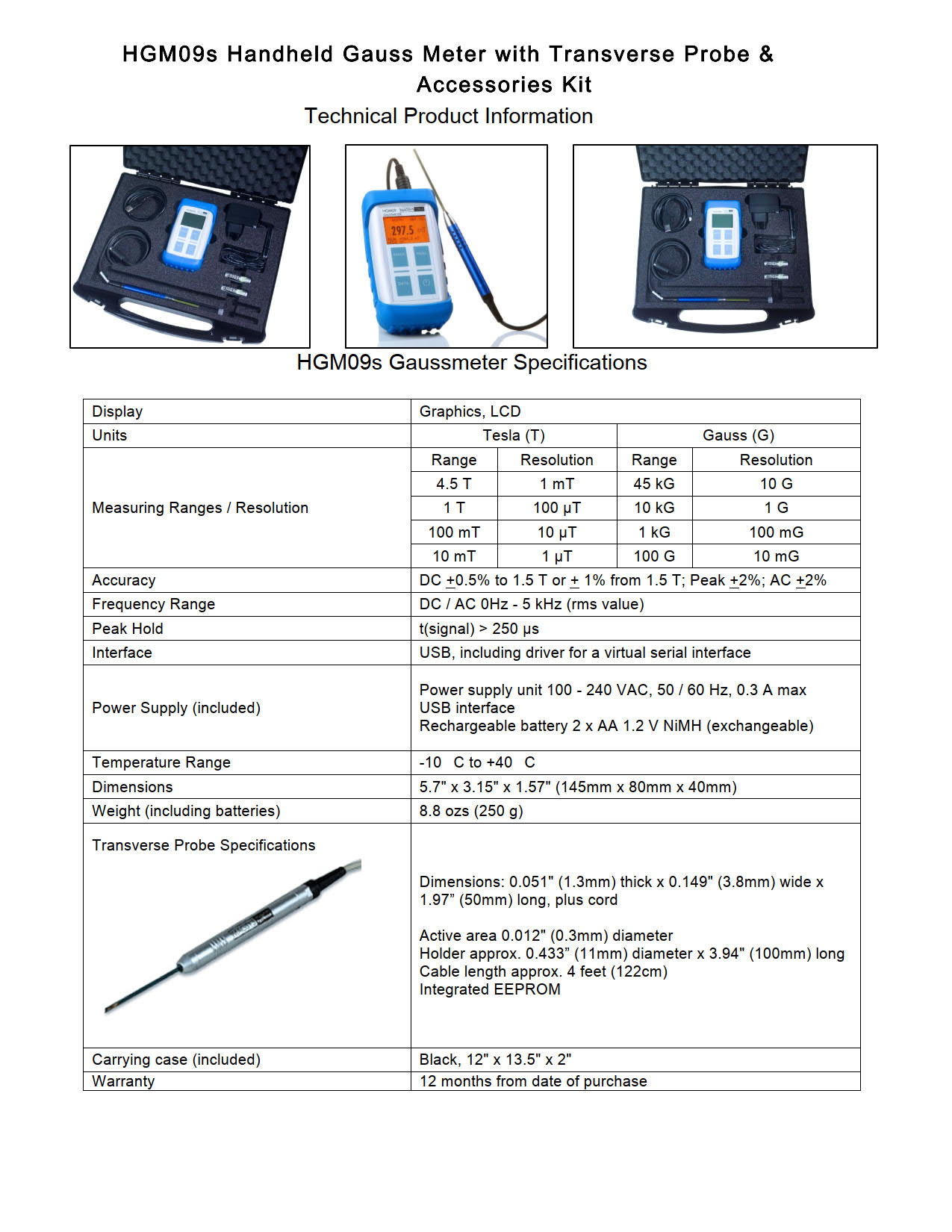

Display	Graphics LCD
Measuring Range (Resolution)	Tesla (T)	Gauss (G) Oersted (Oe)	Amps/Meter (A/m)
	4.5 T (1 mT)	45 kG (10 G) 45 kOe (10 Oe)	3800 kA/m (1 kA/m)
	1 T (100 µT)	10 kG (1 G) 10 kOe (1 Oe)	1000 kA/m (100 A/m)
	100 mT (10 µT)	1 kG (100 mG) 1 kOe (100 mOe)	100 kA/m (10 A/m)
	10 mT (1 µT)	100 G (10 mG) 100 Oe (10 mOe)	10 kA/m (1 A/m)
Accuracy	DC ±0.5 % up to 1.5 T and ±1 % from 1.5 T; Peak ±2 %; AC ±2 %
Frequency Range	DC / AC 0 Hz..5 kHz (r.m.s. value)
Peak Hold	tsignal > 250 µs
Interface	USB; incl. software for easy data storage on a personal computer (included in delivery)
Power Supply	Power supply unit 100..240 V AC, 50/60 Hz, 0.3 Amax USB interface Rechargeable battery 2 x AA 1.2 V NiMH (exchangeable) - completely included in delivery -
Dimensions	approx. 145 x 80 x 40 mm
Weight	approx. 250 g incl. battery, without probe
Temperature Range	-10 °C .. +40 °C (not bedewing)

Gaussmeter Kit Includes:

• MAGSYS HGM09 Gaussmeter with Standard Transversal Probe (Package Includes):
• MAGSYS HGM09 Gaussmeter Instrument (1)
• with Built-In Rechargeable & Portable Battery
• Standard Transversal Probe (1)
• Black Foam Protected Case (1)
• Power Charger Base Plugin - Black (1)
• USB to Mini USB Charging Cord- Black (6ft/72in Long) (1)
• Digital Operating Manual on USB Drive Stick (1)
