3nh รุ่นPS-2080เครื่องวัดเฉดสี,PS2080 Spectrocolorimeter Is Equipped With Six Apertures MAV:Φ8mm(Flat+Tip)

"Fat girl" is the nickname of PS20 series domestic color spectrometer. It is serious about color measurement and high user satisfaction.

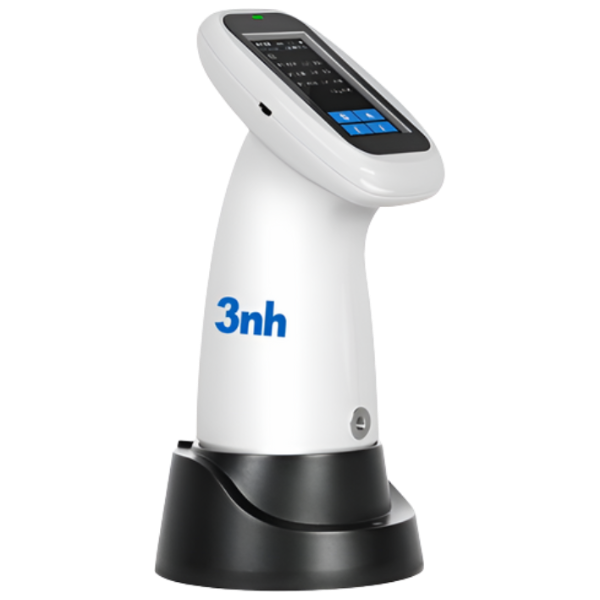

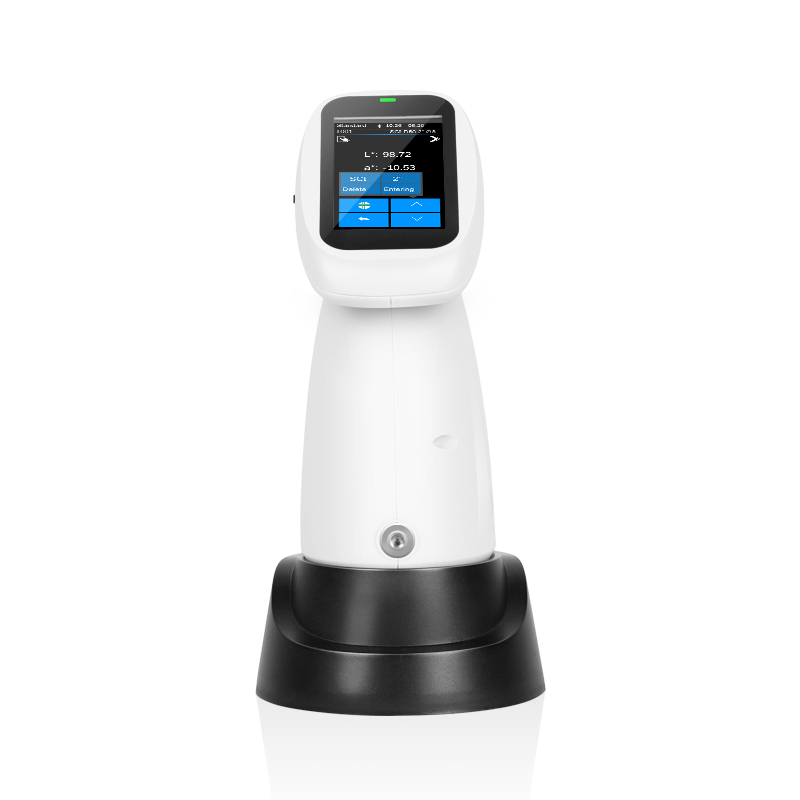

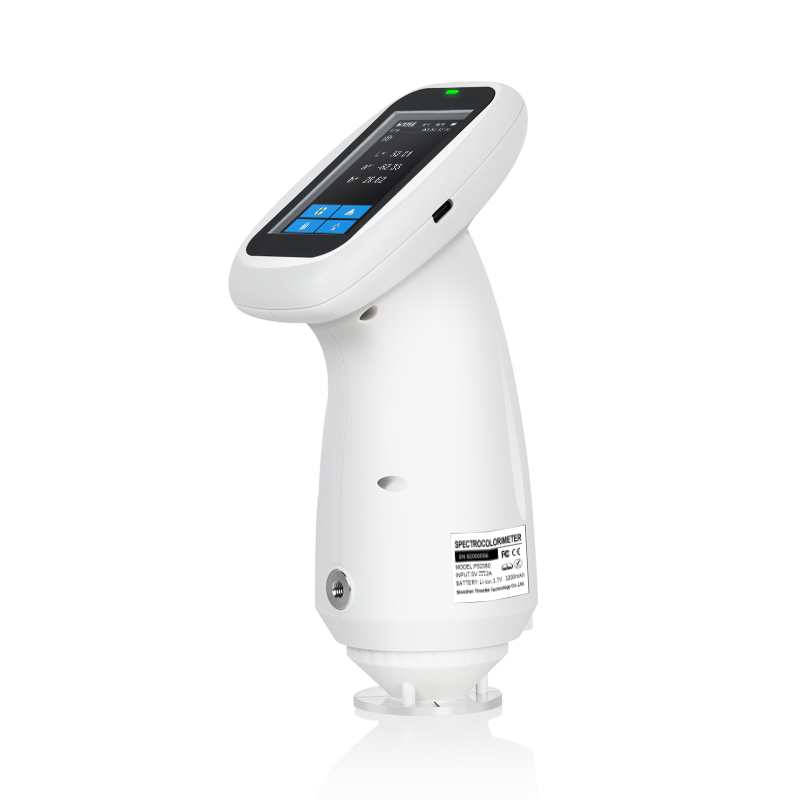

 PS2080 "Fat girl" spectrocolorimeter is 3nh developed by CMOS dual-channel  spectrocolorimeter sensor, which is not only a colorimeter, but also a spectrocolorimeter，with excellent repeatability and the inner-instrument error. The measurement data is stable, accurate and reliable. with a comfortable and round appearance more people love it. It also has quality management software facilitate quality monitoring and data management.

 PS2080 spectrocolorimeter is equipped with six apertures MAV:Φ8mm(flat+tip)、SAV:Φ4mm (flat+tip)、LAV:1x3mm(flat+tip), widely used for plastic electronics, paint ink, textile and garment printing, printing, ceramics and other industries color difference quality control. UV is included for the measurement of fluorescent samples.

 1、 Adopt D/8 optical structure and SCI/SCE mode.

PS2080 spectrocolorimeter adopts D/8(diffused illumination, 8-degree viewing angle) which is widely applicable in the world, and SCI/SCE (specular component included/specular component excluded) Synthesis technology. It is suitable for color management and quality control in various industries such as color matching and coating, textile, plastic, food, building materials, cosmetics, etc.

2、Adopt full waveband balanced LED light source + UV light

The 400~700nm full waveband balanced LED light source and UV light ensures sufficient spectral distribution in the visible light range, avoids the spectral loss of white LED in specific waveband, Fluorescent materials can also be easily measured and ensures the measurement speed and accuracy of the measurement results.

3、CMOS dual beam splitting sensor

High speed and high sensitivity CMOS dual beam splitter sensor makes color data processing more efficient and accurate.

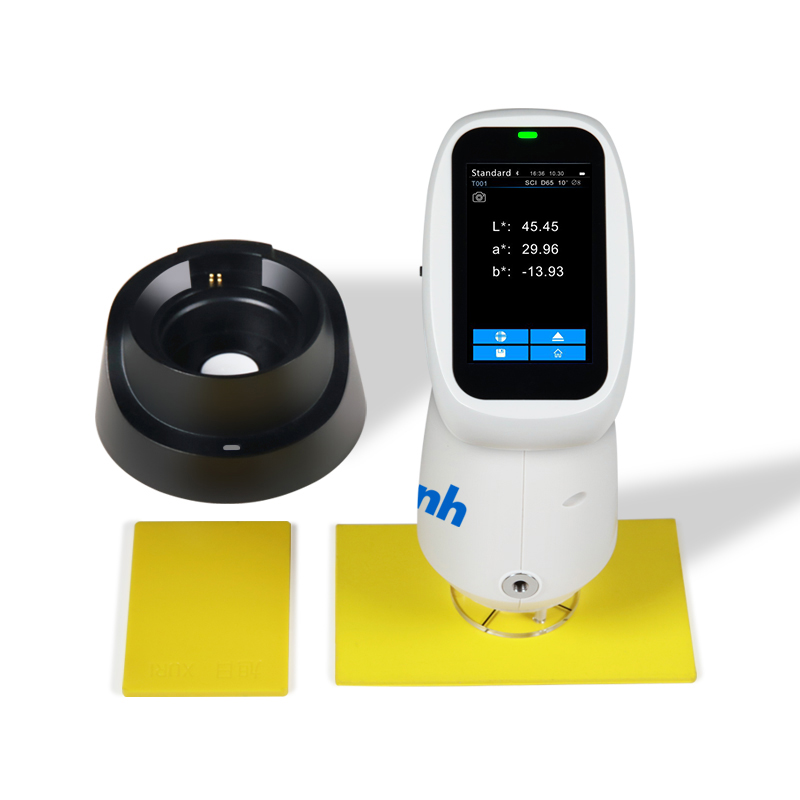

4、Non-Contact automatic whiteboard calibration

The spectrocolorimeter PS2080 is equipped with an intelligent calibration base.Contact automatic whiteboard calibration is available, professional standard Whiteboard reflectivity R%≥95%, good surface uniformity. It has high stability and can obtain repeated and accurate data.

5、Multiple color measurement spaces, multiple illumination source

The spectrocolorimeter PS2080 support CIE LAB, XYZ, Yxy, LCh, CIE LUV, S- RGB, βxy, DIN Lab99 Color space and D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30), U35, NBF, ID50, ID65 multiple illumination source,Meet different measurement requirements.

6、Ergonomic design and easy measurement

The fitted palm is suitable for continuous detection, which makes you fast and easy to use. An easy to measure device for automatic measurement is added. which is portable, fast, easy to measure and use.

7、 Cloud storage, carrying massive color databases

Use apps and applets to establish your private color database in the cloud,without carrying heavy color cards, you can share them with partners anytime and anywhere.

8、Calibration Certificate

Each PS2080 spectrocolorimeter has been verified and tested. After leaving the factory, each instrument is verified according to the measurement standards of authoritative verification departments, and the measurement data are traceable to the National Metro technical Institute to ensure the authority of the instrument test data.

9、The camera can clearly observe the measured area

The built-in camera is used for view taking and positioning. Through real-time view taking, it can accurately determine whether the measured part of the object is the target center, which improves the measurement efficiency and accuracy.

10、Color management software

Quality management software Andriod, IOS, Windows, Wechat app and Hongmeng system are applicable to quality monitoring and color data management in various industries. Data the user's color management. compare colon differences, and generate test reports.
