EKO รหัส MS-40S เครื่องวัดพลังงานแสงอาทิตย์,Pyranometer,ISO 9060:2018 class-C,wavelength range(nm):285～3000(50%points)

แคตตาล็อก>>>

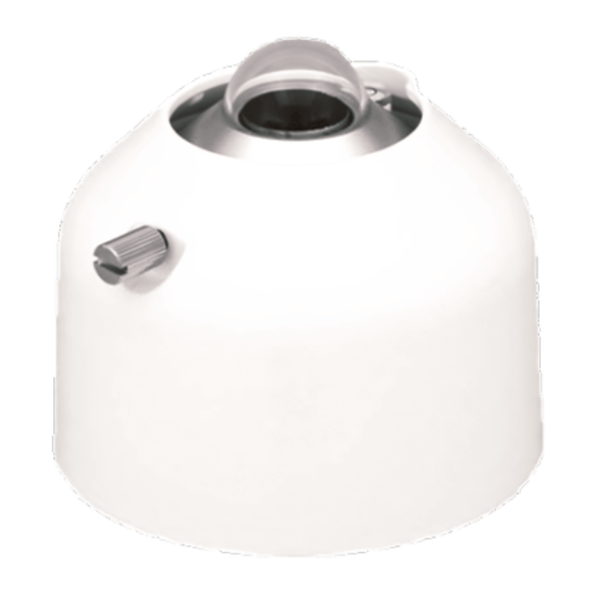

The S-Series ISO 9060:2018 MS-40S Class C Pyranometer is a cost-efficient part of the most accurate, reliable and robust family of pyranometers in the world, and the class-leading solution for system integrators, agrometeorological networks, and professional small-scale PV sites.

The MS-40 is an ISO 9060:2018 Class C pyranometer which is based on the EKO's universal sensor platform. It is the most cost effective irradiance sensor to measure Solar irradiance accross the full Solar spectrum. It can be used for agro meteorological networks and professional small scale PV sites where solar radiation is taken seriously. The MS-40A and MS-40M provide a digital output (4-20mA or Modbus 485 RTU). The MS-40/40A/40M can be used with the optional MV-01 ventilator / heater or can be combined with the optional mounting kit for albedo measurements.

The MS-40 pyranometers are manufactured in a consistent way followed by strict quality inspection and performance evaluation. EKO provides a unique calibration compliant to the international standards defined by ISO/IEC17025/9847.

The sensor has a 5 year warranty with a 2 year re-calibration interval recommended and it is no longer necessary to change the desiccant.

• Wavelength Range (nm): 285 - 3000 (50% points)
• Irradiance range (W/m²): 0 - 2000 W/m²
• Signal Output: MODBUS 485 RTU, SDI-12, 4-20mA, configurable 0-10mA / 0-1V*
• Sensor Diagnostic: Relative Humidity ± 2%, Temp. ± 0.1% / Tilt Angle ± 1°
• Operating temperature: -40 to 80 °C
• Supply voltage: 5 - 30 VDC
• Power Consumption: < 0.2 W
• Standard Cable Length: 20 / 30 / 50 m
