Cleanliness management is more convenient with a large screen that is easy to see and ease of use.
Introducing a reasonable new model that combines quality and functionality.
-Large and easy-to-use touch panel type 4.3 inch color display.
-Remote operation from a PC with the attached software, and easy monitoring of changes over time.
・ Two models with different particle sizes are available (3 particle sizes and 6 particle sizes).
・ Supports 4 languages: Japanese, English, Chinese, and Spanish.
-An optional temperature / humidity probe can be connected (3889 only).
-Data can be easily retrieved via USB (memory / cable).
-Compliant with ISO21501-4 and JIS B9921.

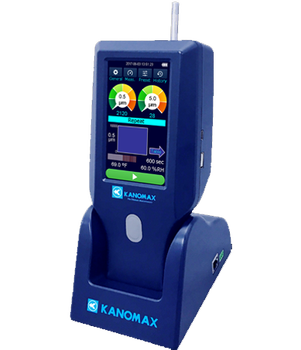

Handheld particle counters for accurate measuring and monitoring

Kanomax’s innovative Handheld Particle Counters (Models 3889) set the standard of instrumentation in cleanroom / operating room monitoring and verification, filter testing, IAQ investigation, data center cleaning and many more highly specialized and highly sensitive applications. These beautifully engineered devices boast some of the most highly advanced technology in the industry. A combination of accuracy and practicality, these devices are designed for accuracy and performance.

Since their inception, Kanomax particle counters have been the trusted choice in measuring instruments of by an ever-growing group of leaders in pharmaceutical, semiconductor, food and beverage industries. The 3888 and 3889 models perform with the same reliability and accuracy as their predecessors, but now feature assets that make them easier to use and measurements can be gathered significantly faster. They have very large, full color 4.3 inch LCD touchscreens, which can actually display data graphically for speedy interpretation. Despite the fact that measurements can very easily be taken directly from the instrument, these new models also include the easiest options for transferring data to PCs and other devices. There is an onboard USB input, which will accept a USB drive and download any number of the possible 10,000 data logs and transferred into a Windows 10 application.

The Kanomax Handheld Particle Counters also meet ISO 21501-4 Standard and are fully RoHS compliant.

  • Model 3889 displays 6 particle sizes simultaneously (0.3, 0.5, 1.0, 3.0, 5.0, 10.0μm) in cf or m3
  • Large, 4.3-inch full-color touchscreen
  • 0.3 micron minimum sensitivity
  • Store up to 10,000 measurements
  • Compact and Lightweight
Remote control software *NIST traceable calibration included

Product

Handheld Particle Counter

Model

3889

Particle Measurement

Sizes

6 channels (0.3, 0.5, 1.0, 3.0, 5.0, 10.0μm)

Flow Rate

0.1CFM (2.83L/min)
Accuracy: ±5% (Compliant with JIS B9921 and ISO21501-4)

Maximum Measurable Concentration

10% for 2,000,000 particles/CF
(compliant with JIS B9921 and ISO21501-4)

Counting Efficiency

50±20% (for PSL particles near the minimum measurable size)
100±10% (for PSL particles of 1.5 to 2 times as large as the minimum
measurable size)
(Compliant with JIS B9921 and ISO21501-4)

False Count

≦1 particle/5 minutes
(Compliant with JIS B9921 and ISO21501-4)

Size Resolution

≦15% (for PSL particles near 0.3μm)
(Compliant with JIS B9921 and ISO21501-4)

Display

4.3 inch color LCD, Resistive touch panel

Communication

Standard

USB (Host: for printer and USB flash memory, Device: for PC)

Stand (option)

RS485, Ethernet, and WiFi connection points in the base/stand

Recording Media

Media

Internal memory

Number and Format

Up to 10,000 records in CSV format

Language

English, Japanese, Chinese, and Spanish

Power

Internal Supply

Li-ion rechargeable battery (Replaceable)

External Supply

AC adapter - Input 100 to 240 V

Continuous Operation Time

5 hours (Single measurement)

Operating Environment

Main Body

From 10 to 40 ℃, from 0 to 85%RH (With no condensation)

Probe

From 0 to 50 ℃, from 2 to 98%RH (With no condensation)

Dimension

W213 X H100 X D55 mm

Weight

650g






Hydrothermal
Measurement
(Available as an
option for the 6-
channel portable
particle counter)

Measurement Range

(Temperature) From 0 to 50℃
(Humidity) From 2.0 to 98.0%RH

Display Resolution

(Temperature) 0.1℃
(Humidity) 0.1%

Humidity Accuracy

±3.0% (30 to 85%RH), ±5% (other range of humidity)

Temperature Accuracy

±0.5℃

Response Time

Approximately 60 seconds or less (90% response)
