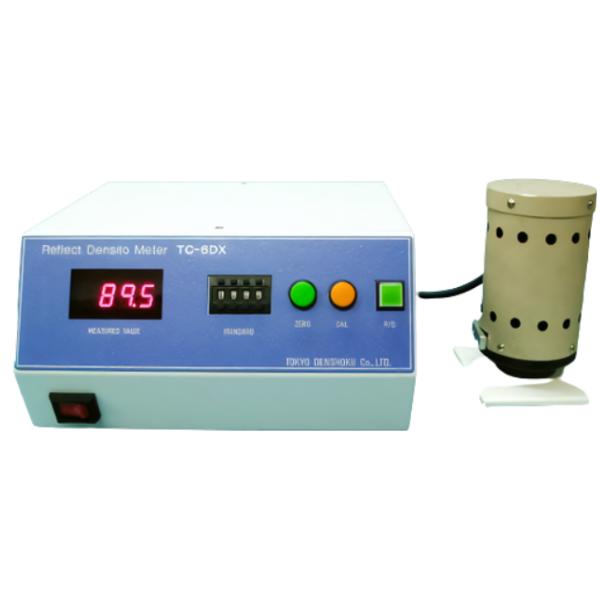

TokyoDenShoku รุ่นTC-6DXโฟโตมิเตอร์สีขาว,White Photometer

• It is a precision grade, simple, and one-touch operation of a whiteness meter.

• • This instrument is a whiteness meter developed and manufactured based on JIS Z8722, and can perform precise measurement with simple operation.
  • The measurement unit adopts the 0°-45° photobolt method.
  • The TC-6D and TC-6DS/A have been made smaller and lighter than the conventional TC-6D and TC-6DS/A, and the visibility of the meter and the operability of the switch have been improved.

* Appearance and colors are subject to change without notice.

• Detector: Sensor unit ................................................1 unit
• Measurement part: Digital display (automatic color) Operation switch (push button type) ..... 1 unit
• Measurement method: Measurement of whiteness with standard light C viewing angle 2° based on JIS Z8722
• Measurement area: 20mmφ
• Measurement conditions: Diffuse illumination → 0°-45° method
• Operation switch: ZERO, CAL, R/D, standard value setting
• Working voltage: AC100-220V 50/60Hz
• Temperature and humidity conditions: 15-30°C 20-80%
• Light source: Tungsten lamp 12V 10W
• Detection element: silicon photodiode
• Accessories: 1 standard white board, 1 black board, 1 instruction manual
• Sensor unit diameter: φ80mm
• Body: width 257 mm x depth 250 mm x height 140 mm
