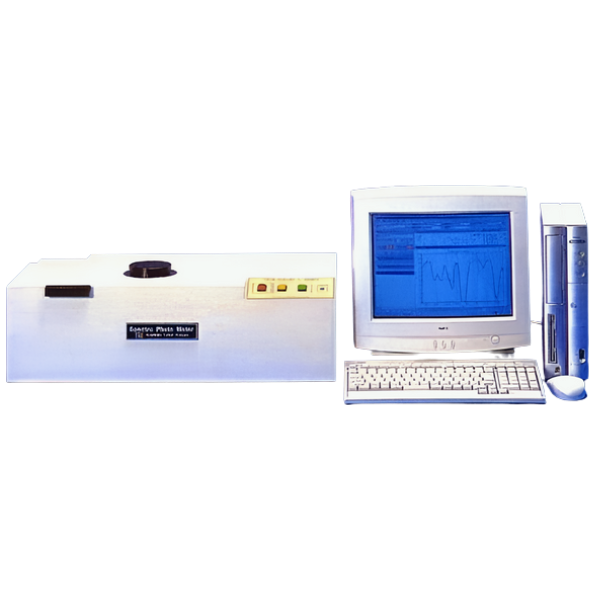

TokyoDenShoku รุ่นTC-1800MK-Ⅱเครื่องวิเคราะห์สีอัตโนมัติ,Automatic Color Analyzer,Meas.range:400～700nm

This instrument measures the spectral transmittance of colored glass filters and measures visible light from 400 to 700nm in 10 steps.

[Specifications of this device]
Optical system........ Grating spectrometer
Light receiving element...Fort diode array 31 CH
Light projection/reception... nn method (transmitted light 0° - 0° method)
Standard..... JIS-Z 8722
Measurement wavelength... 10nm step size 400 to 700nm
measurement area..... 0.1mmφ and 1mmφ
light source.............Halogen lamp 12 V 100 W 2,000 H
Stage size....200 x 2 00 x H 50 mm (Movement range 100 x 100 mm)
Dimensions .400 x 400 x H 500 mm
(Note) Even if the size is 300 x 400, the measurement sample can be placed on the stage
