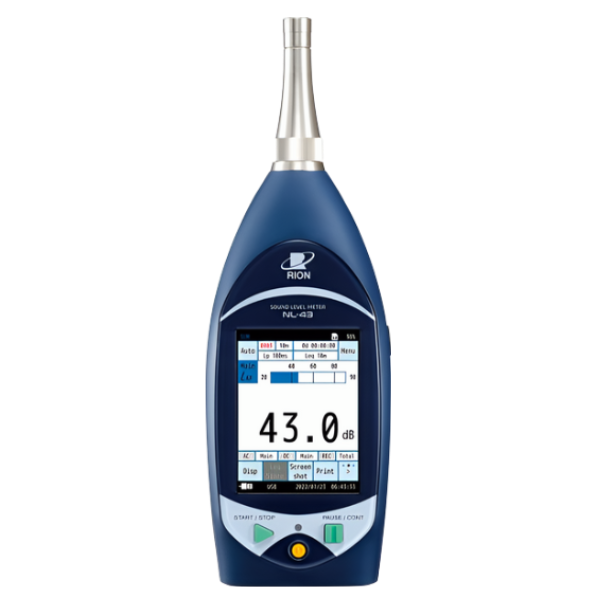

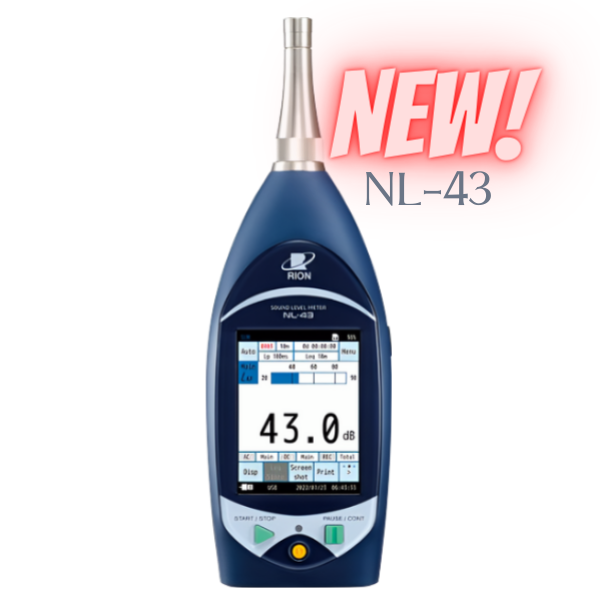

Rion รุ่น NL-43 เครื่องวิเคราะห์เสียงมาตรฐาน,Sounds level meter,JIS C-1516:2020 class 2,frequency range:20Hz～8kHz.

• We cope with long-term measurements such as environmental measurements  Record more than 1,000 hours (approximately one month) is possible.
• Auto store function Continuous recording of

  Lp (instantaneous value) and L eq calculation (calculated values such as equivalent noise level, hourly rate noise level, and maximum value) can be performed at the same time. Each data is saved in the SD card in CSV format. In addition to managing data with the environmental measurement data management software AS-60, it can also be displayed using spreadsheet software.

• Three types of trigger functions Level trigger/timer auto/external trigger Three types of trigger functions
  Start measurement when a trigger occurs.


• LNA function  It is possible to operate and grasp the situation from a remote location.

• Waveform recording program NX-43WR

The recorded data can be played back on a computer and supports frequency analysis (uncompressed WAVE files).
Waveform processing software AS-70 enables graph display, level processing, frequency analysis, file output and playback of analysis results.

• FFT analysis program NX-43FT (to be released)

FFT analysis can be performed to measure the loudness of each frequency.
Analysis frequency range is 20kHz, frequency resolution is 2.5Hz (8000 lines).
It is possible to read out the saved analysis results and display them overlaid on the graph being analyzed.
Up to 40x zoom magnification and 20 peak lists can be displayed.

• Octave/1/3 octave real-time analysis program NX-43RT (to be released)

Measurements conforming to JIS C 1513-1: 2020 "Octave band and 1/N octave band filter" are possible.
Equipped with a function to read out the saved analysis results, display them overlaid on the graph being analyzed, display graphs of NC curves required for evaluating indoor noise, and calculate and display NC values.
Using the environmental measurement data management software AS-60RT enables recalculation and data management on a computer.
It is also possible to output the voltage (AC out, DC out) of the arbitrarily selected band.

* NX-43EX is required separately.

• Intuitive operation without the need to refer to manual

• New Feature

• Optional program function list

Type approval number		No. TS231 (designated sound calibrator: NC-72B, NC-75)
Compliant standard		Ordinary sound level meter JIS C 1516: 2020 class 2, IEC 61672-1: 2013 class 2, JIS C 1509-1: 2017 class 2, ANSI/ASA S1.4-2014/Part1 class 2
		ISO 7196 : 1995 CE Marking ・ EMC Directive Directive 2014/30/EU EN 61326-1:2013 ・ RoHS Directive Directive 2011/65/EU EN IEC 63000:2018 ・ Low Voltage Directive Directive 2014/35/EU EN 61010-1: 2010/AI:2019 UKCA Marking, China RoHS, VCCI Class B

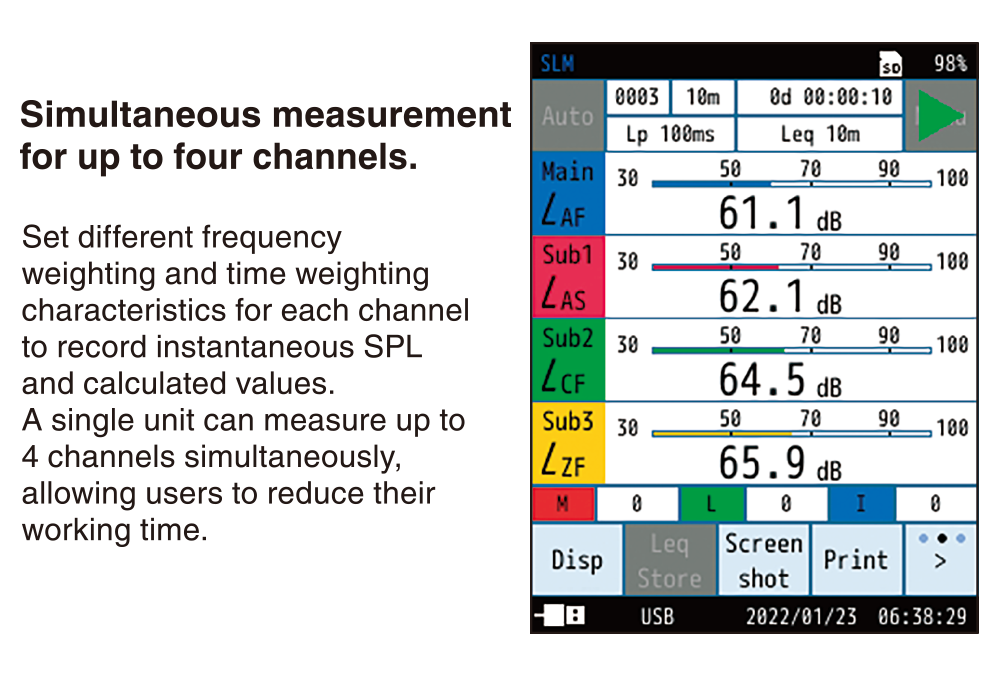

Measurement function	Measurement function	Simultaneous measurement of up to 4 channels (Main channel, Sub1 to Sub3 channels) with selected time weighting and frequency weighting characteristics
	instantaneous value	time-weighted sound level Lp
	Calculated value	Time-average sound level L eq, Sound exposure level L E, Maximum time-weighted sound level L max Minimum time-weighted sound level L min, Percentage sound level LN Peak sound level L Cpeak
microphone	Model	UC-52
	Sensitivity level (typical value)	-33 dB
Measuring level range		A-weighted: 25 dB to 138 dB, C-weighted: 33 dB to 138 dB, Z-weighted: 38 dB to 138 dB, C-weighted peak sound level: 55 dB to 141 dB, Z-weighted peak sound level: 60 dB to 141 dB
Self-noise level	A-weighted	19 dB or less
	C characteristic	27 dB or less
	Z-characteristic	32 dB or less
Measurement frequency range		20Hz to 8kHz
Frequency weighting characteristic		A, C and Z characteristics
time weighting characteristics		F (Fast), S (Slow) and I (Impulse)*2
Input range		automatic switching
bar graph display	upper limit	70 dB to 130 dB configurable in 10 dB steps
	lower limit	20 dB to 60 dB configurable in 10 dB steps
sampling period		Lp , L eq, L E, L max, L min, L peak: 20.8 μs (sampling frequency 48 kHz), L N: 100 ms
Proofreading		A reference signal is input from the sound calibrator NC-75/NC-74 or pistonphone NC-72B/NC-72A, and the calibration history for adjusting the signal input sensitivity can be managed up to 30 items and saved on an SD card .
Reference signal output to external equipment	frequency	1 kHz
	output level	Bar graph upper limit -6 dB
Correction function	Windscreen correction function	Corrects the influence on the frequency characteristics so that it conforms to the standard when the windscreen (WS-10, WS-15, WS-16) is attached.
	Diffuse sound field correction function	Compensates for effects on frequency response to comply with standards in diffuse sound fields
delay time		Start measurement after the specified time has elapsed after the measurement start operation (OFF, 1, 3, 5, 10 seconds)
Back erase function		From the time this function is executed, excludes data from the specified time before calculation (OFF, 1, 3, 5 seconds), Auto store mode, cannot be used with waveform recording
display		3.5-inch TFT-LCD QVGA with backlight * With touch panel (resistive film type) function Numeric display update cycle: 1 s, time-level graph/bar graph update cycle: 100 ms
Manual store	Manual store	Manually record one address at a time to the internal memory or SD card
	Number of recorded data	Internal memory: Up to 1000 data sets SD card: Depends on SD card capacity*1
	measurement time	10 seconds, 1, 5, 10, 15, 30 minutes, 1, 8, 24 hours, user setting (1 second to 24 hours)
Auto store*2	auto store	Automatically records instantaneous values ( Lp store) at set times and calculated values (Leq store) at set times on an SD card continuously.
	Lp store period	Off, 10ms, 25ms, 100ms, 200ms, 1s
	L eq operation cycle	Off, 10 seconds, 1, 5, 10, 15, 30 minutes, 1, 8, 24 hours, or user set (1 second to 24 hours)
	Number of recorded data	SD card: Can be saved with a store name from 0000 to 9999
	measurement time	10 seconds, 1, 5, 10, 15, 30 minutes, 1, 8, 24 hours, user setting (1 second to 1000 hours), continuous (depending on SD card capacity*1)
data form		CSV file
data recall		Browse store data and screen capture images
Setting memory		Setting information can be saved in internal memory or SD card and recalled at startup or specified
Waveform recording*2*3	file format	Uncompressed WAVE file
	sampling frequency	Select from 48 kHz, 24 kHz, 12 kHz
	Data length	Select from 24 bit or 16 bit
output	AC output	Output voltage: 1 Vrms (effective value) at the upper limit of the output range (simultaneous output of DC and AC output possible)
	DC output	Output voltage: 2.5 V, 25 mV/dB at the upper limit of the output range (simultaneous output of DC and AC output possible)
	Output range	Linked to bar graph upper limit, or settable from 70 dB to 130 dB in 10 dB steps
	Comparator*2	Comparator output turns ON when the specified channel exceeds the set level (maximum input voltage 24 V, internal resistance approx. 480 Ω, power dissipation 300 mW)
RS-232C communication		By using a dedicated cable, it is possible to acquire measured values and change settings using communication commands.
USB	Communication control	Measured values can be acquired and settings can be changed using communication commands.
	data transfer	It is possible to make the computer recognize the data on the SD card as a removable disk and transfer the data.
LAN*2	Communication control	Measured values can be acquired and settings can be changed using communication commands.
	data transfer	It is possible to transfer the data of the SD card to the computer
	Web browser display	It is possible to access from a web browser, display measured values, change settings, and play audio*3 (Google Chrome on a computer only).
Continuous data output*2	Data type (instantaneous value)	Lp
	Data type (calculated value)	Leq , Lmax , Lmin , Lpeak _
	Output interval	100ms (0.1s)
power supply	power supply	Power supply to 4 AA batteries, external power input terminal and USB terminal
	Operating time (23°C, ECO setting)	Alkaline battery LR6: Approx. 16 hours Ni-MH rechargeable battery HR6: Approx. 16 hours Mobile battery: Approx. 24 hours at 5000 mAh The operating time varies depending on the device settings and the battery manufacturer.
	AC adapter	NE-21P (Input: AC100-240V, 50/60Hz, Output: DC12V)
	External power supply voltage	5.7 V to 15 V (Rated voltage 12 V) USB port: 5 V (See notes on using mobile battery)
	Primary side (100 V side) power consumption	Approx. 3 W (when using NE-21P)
Operating temperature and humidity range	temperature	-10°C to 50°C
	humidity	10% to 90% RH (non-condensing)
Dustproof and waterproof performance*4		IP rating: IP54 (excluding microphone section)
size and weight		Approx. 258 mm (H) x 83.5 mm (W) x 34.5 mm (D), Approx. 400 g (including batteries)
accessories		Carrying case x 1, windscreen WS-10 x 1, windscreen fall prevention rubber x 1, strap x 1, AA alkaline batteries x 4, SD card 512 MB (only with NX-43EX)

*1 Please use products sold by our company whose operation is guaranteed.
*2 NX-43EX is required separately.
*3 NX-43WR is required separately.
*4 Protected against harmful dust (dust-proof type) and water splashed from all directions (splash-proof type).
