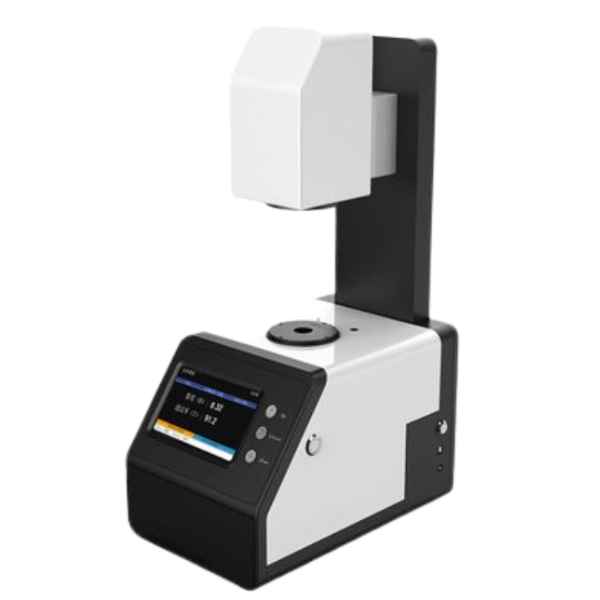

CHN Spec รุ่นTH-100เครื่องวัดค่าความใสหรือความขุ่น,Haze Meter Test Light Transmittance,Wavelength Range:400～700nm

TH-100 light transmittance haze meter, in line with ISO&ASTM double standards, equipped with double caliber (21mm/7mm), suitable for haze, transmittance of transparent and translucent materials such as plastic, film, glass, LCD panel, touch screen, etc. Overrate one-stop measurement solution.

• open measuring area
• No interference from external ambient light
• no preheating required
• Data output in 1.5 seconds

Transmittance and haze measuring meter are designed for plastic sheets, films, glasses, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement. Our haze meter does not need warm-up during the test which saves customer's time. Instrument conforms to ISO, ASTM, JIS, DIN and other international standards to meet all customers’ measurement requirement.

• Three kinds of light sources AC and D65 for haze and total transmittance measurement.
• It can realize transmittance compensation measurement which can provide higher accuracy test result.
• Open measurement area, no limit on sample size.
• The instrument is with 5.0 inches TFT display screen with good human-computer interface.
• It can realize both horizontal and vertical measurement to measure different kinds of materials
• It adopts LED light source whose lifetime can reach 10 years
• No need to do warm-up, after instrument is calibrated, it can be used. And measurement time is only 3 seconds.
• Small size and lightweight which makes it much easier to carry
