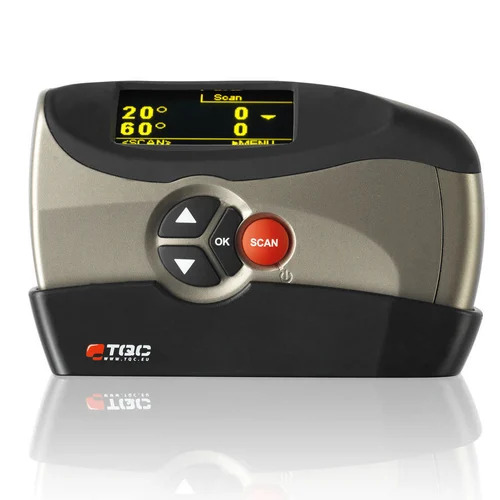

TQC รุ่นGL-0030เครื่องวัดความเงา3มุมองศาโพลีกลอส,Professional Tri-Gloss Meters,PolyGloss 60˚/20˚/85˚


  • They are portable precision glossmeters for production and laboratory
  • Easy to use, no special training or skills are required.
  • Memory for 2000 gloss readings (max 8 batches)
  • Adjustable gloss limits with visual and acoustic alarm
  • LCD colourdisplay with wide viewing angle
  • Menu-driven interface
  • Stable LED-light source
  • USB-C port for quick data transfer to PC
  • Calibration gloss standard integrated in protective holder
  • The TQC Sheen Glossmeter comes in two models.
    • The Sologloss glossmeter measures 60°
    • The Polygloss glossmeter 20°/60°/85°
  • The 60° measuring angle can be used for any surface, from matte to glossy. For better gloss measurements on high gloss surfaces the 20° angle is available, while for low gloss surfaces the 85° angle suits best.
  • Ideal Finish Analysis Software is included to analyze the gloss measurement results. This software provides the user the power to do all analysis of interest. Trend, Gaus and many other statistical evaluations are possible.
  • Unique double hybrid frame system has been engineered with the highest precision. Carefully controlling the interior of the light patch helps to give the TQC Gloss meter robust and stable structure.
  • Applications: Flooring, yacht and boat buliders, paint and coatings, automotive, furniture, military goods, finishing, plastics, leather, reaserach and developement

Measurement Angle

20°

60°

85°

Range:

0-2000 GU

0-2000 GU

0-2000 GU

Repeatability r*:

0.4 GU

0.2 GU

0.2 GU

Reproducibility R*:

1.7 GU

1.6 GU

1.9 GU

Bias*:

1.2 GU

0.6 GU

1.6 GU

*Acc. ISO 2813 (range 0-100GU)
(Repeatability is the variability of the measurements obtained by one person while measuring the same item repeatedly)

Operational:

Calibration Standard:

Integrated tile in dust cover

Display:

High Contrast OLED display

Light Source:

Extreme low drift LED light source

Power Source:

2x AA alkaline batteries

Batches:

Max 8

Readings Per Batch:

Max 500, non-dependant of number of angles

Total Max Readings:

2000 readings with time stamp

Scan Function:

Yes

Statistics:

Min./Max. / Avg. / Std.dev / number of measurements

Security:

Password protection

Software:

Ideal Finish Analysis

Dimensions:

Size:

3.54”H x 5.55”W x 1.7”D (90H x 140W x 45mmD)

Weight:

13.7 oz (398g)

Base Dimensions:

1.7” x 5.12” (45 x 130mm)

Orifice Size:

0.4” x 2.0” (10 x 50mm)

Spot Sizes:

Approx. Spot Size 5 x 5mm @ 20° / 0.2” x 0.2” @ 20°
Approx. Spot Size 20 x 9mm @ 60° / 0.8” x 0.35” @ 60°
Approx. Spot Size 40 x 9mm @ 85° / 1.5” x 0.35” @ 85°

Measurement speed:

70 measurements per minute at 3 angles

Simultaneous measurement:

3 geometries

Power Saver Option:

User selectable

Units:

Gloss Units (GU)

Resolution:

0.1 GU (0-100GU)
1GU (>100GU)

  • Glossmeter,
  • 2 AA type batteries,
  • Plastic case - Screwdriver,
  • USB stick with Ideal Finish Analysis software,
  • Micro fiber cleaning towel,
  • SB cable and Calibration Certificate
