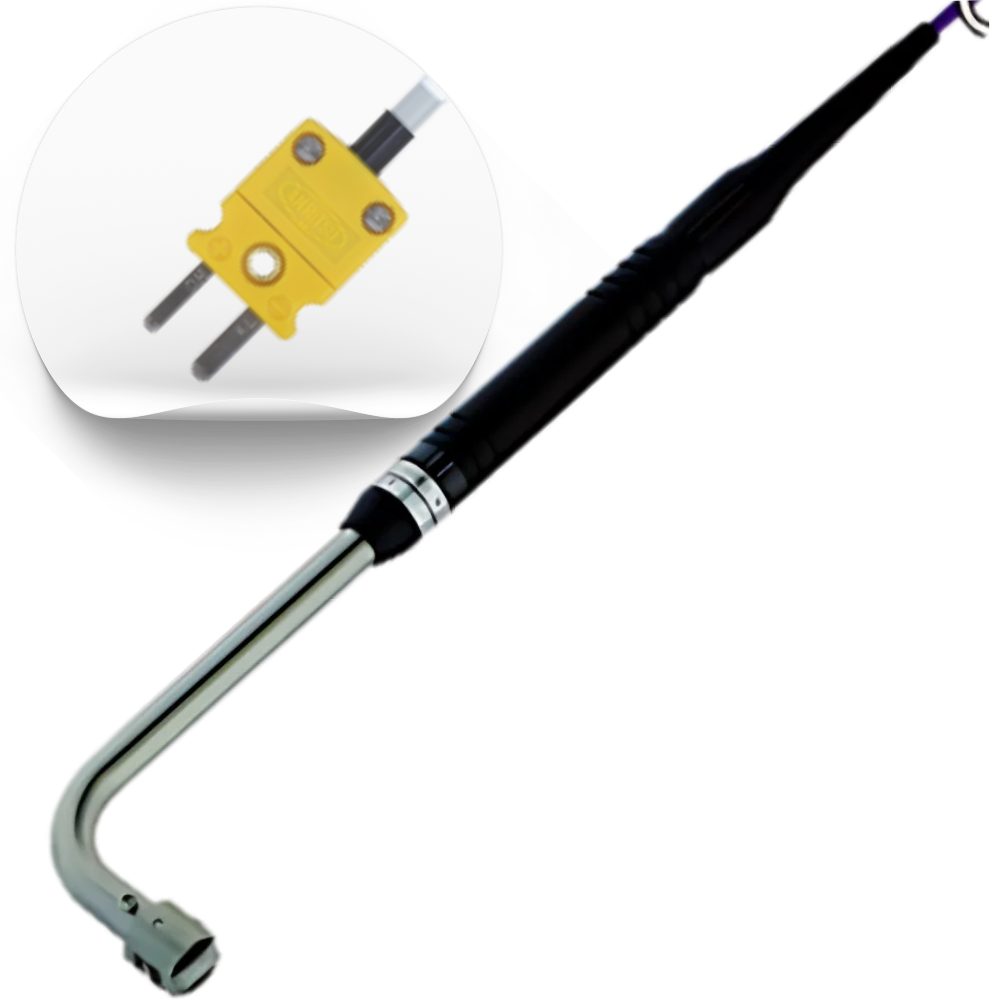

Anritsu รุ่น A-233K-01-1-TC1-ANP โพรบวัดอุณหภูมิแบบพื้นผิว,General stationary suface probes,w/ANP plug,pipe/L=100mm,head size Ø15mm,cable/L=1000mm,type-K ,temp.range:-50°C～500°C

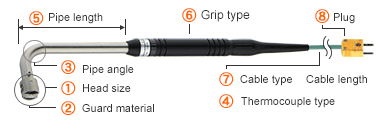

1

Head size

1

φ 27mm

2

φ 15mm

3

φ 12mm

2

Guard material

1

Teflon guard

2

Polyimide guard

3

Stainless steel guard

4

Stainless steel guard for High Temp. *1

5

Teflon guard contact plate coating

6

Polymide guard contact plate coating

7

Without guard (only A-1＊＊)

3

Pipe angle

1

Straight

2

45 degrees

3

90 degrees

4

90 degrees (elbow)

5

45 degrees *2

6

90 degrees *2

7

90 degrees (elbow) *2

4

Thermocouple

K

Type K

E

Type E

5

Pipe length

00

30mm *1,*3

01

100mm

02

200mm

…

……

09

900mm

10

1000mm

6

Grip type

0

No grip *1,*3

1

Standard grip

7

Cable type
see cable page

TC

φ4 Silicone rubber cable

8

Cable length

1

1000mm

1.5

1500mm

2

2000mm

2.5

2500mm

…

……

9

Plug
see plug page

ANP

Miniature plug

ASP

Anritsu standard plug

W

Without plug

WT3

Spade terminal for φ3mm

WT4

Spade terminal for φ4mm

WT5

Spade terminal for φ5mm

WC3

Ring terminal for φ3mm

WC4

Ring terminal for φ4mm

WC5

Ring terminal for φ5mm
