PCE Instruments รหัส HVAC-2 เครื่องวัดความเร็วสำหรับลมแบบมัลติฟังชั่น,Pilot tube air flaw meter

PITOT TUBE ANEMOMETER FOR HIGH FLOW VELOCITIES

For flow velocities up to 80 m/s (178.66 mph); also determines differential pressure, flow rate, temperature; with data storage; Software for real-time transmission included

The PCE-HVAC-2 is a pitot tube anemometer for measuring differential pressure, airflow, air velocity and temperature. Due to its design, the anemometer equipped with an angled pitot tube, is particularly suitable for the rapid and precise determination of high air velocities of up to 80 m / s. During the measurement of the flow velocity, this pitot tube anemometer offers a choice of units (m / s, knots, km / h, mph, ft / min).

The 33.5-cm long pitot tube with a diameter of only eight millimetres, attached to the pitot tube anemometer, makes the application in confined work spaces, small openings and pipe systems possible. The manufacturer has equipped the meter with some practical features, which makes its application versatile. So that it could be mounted on a tripod, the pitot tube anemometer has a thread on the bottom side. Thus, in this position, the user has two free hands which provides a much better flexibility in the handling of the pitot tube. PCE-HVAC 2 by by determining of the air velocity in industry factory.The supplied two pressure hoses, each 85 centimetres long, are attached to the top of the pitot tube anemometer and then can be connected to the L-shaped pitot tube.

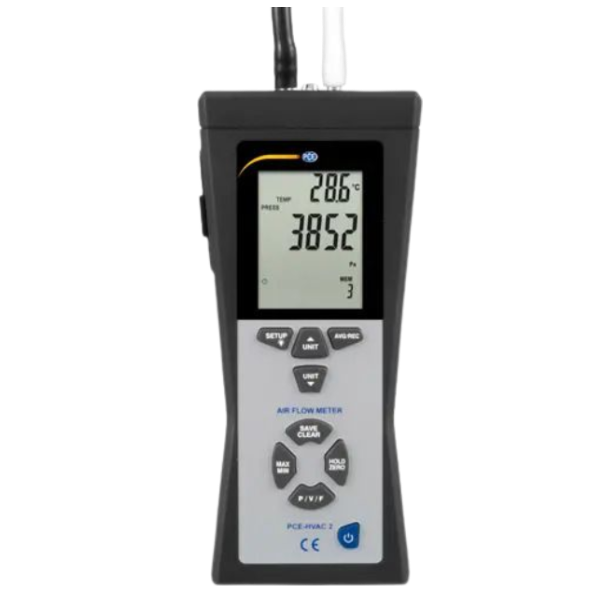

In order to be able to optimally read-out the measurement results even under the unfavourable lighting conditions, the manufacturer has provided the pitot tube anemometer with a large backlit LC display. The internal measured values memory of the pitot tube anemometer provides storage for up to 99 readings per parameter. This allows to save the collected data and to retrieve them at any time. In addition, the pitot tube anemometer allows the storage of maximum and minimum values. The anemometer has a practical Data-Hold function so that the last measurement results could be read-out again. Via the USB interface of the pitot tube anemometer used in a combination with the software supplied, a real-time measurement can be performed. To protect the battery, the manufacturer has equipped the meter with an auto-power-off function. The pitot tube anemometer turns off automatically when not in use after a short time.

• Measures air speed, air pressure, airflow
• Displays ambient temperature
• Zero adjustment function
• MIN, MAX, AVR, REC and HOLD functions
• Backlit LCD
• Dual display on the LCD
• Suitable for high flow rates
• Internal memory for 99 measurement values per parameter
• USB cable included
• Downloadable PC-compatible software
• Real-time measurement
• Pitot tube measurement
• Differential pressure and standard measurement
• 2 connecting hoses (each 85 cm / 33.46 in)
• Adjustable measuring units (adjustable)
• ISO calibration available - see accessories for details

Air pressure
Accuracy	± 0.3% of reading at 25°C / 77°F
Repeatability	± 0.2% (± 0.5% of reading)
Linearity / hysteresis	± 0.29% of reading
Pressure range	5000 Pa
Maximum pressure	10 psi
Response time	Typically 0.5 seconds
Measuring range	0.7252 psi 50.00 mbar 20.07 inH2O 509.8 mmH2O 5000 Pa
Resolution	0.0001 psi 0.01 mbar 0.01 inH2O 0.1 mmH2O 1 Pa
Selectable units	Mbar, psi, inH2O, mmH2O, or Pa
Air speed
Measuring range	1 ... 80 m / s 200 ... 15733 ft / min 3.6 ... 288 km / h 2.24 ... 178.66 MPH 2 ... 154.6 knots
Resolution	0.01 m / s 1 ft / min 0.1 km / h 0.01 MPH 0.1 knots
Accuracy	At m / s: ± 2.5% of measured value At ft / min, Km / h, MPH and Node: Depending on the air speed and the size of the air duct
Flow rate
Measuring range	0 ... 99999 m³ / min 0 ... 99999 ft³ / min
Resolution	0.001 ... 100 m³ / min 0.0001 ... 100 ft³ / min
Temperature
Measuring range	0 ... 50°C / 32 ... 122°F
Resolution	0.1°C / 0.18°F
Accuracy	± 1°C / ± 1.8°F
General
Diameter of pitot tube	8 mm / 0.3 in
Length of measuring hoses	Each 85 cm / 33.46 in
Total length of the tube	335 mm / 13.18 in
Low battery indicator	Yes
Power supply	9V block battery
Operating conditions	0 ... 50°C / 32 ... 122°F / <90% RH non-condensing
Storage conditions	-10 ... 60°C / 14 ... 140°F / <90% RH non-condensing
Internal memory	99 measured values per parameter
Interface	USB
Display	LCD
Housing material	ABS plastic
Dimensions	Device: 206 x 95 x 45 mm /  8.11 x 3.7 x 1.7 in Pitot tube: 335 mm / 13.18 in - Ø 8 mm / 0.31 in
Weight (incl. pitot tube, battery and measuring hoses)	600 g / 1.3 lbs

• 1 x PCE-HVAC 2 multifunction manometer with pitot tube
• 2 x connecting hoses
• 1 x 9 V block battery
• 1 x PC software
• 1 x USB cable
• 1 x carrying case
• 1 x user manual
