PCE รหัส PCE-GM-75 เครื่องวัดความเงา,Gloss meter, measuring geometry:60°,meas.range:0～99.9GU

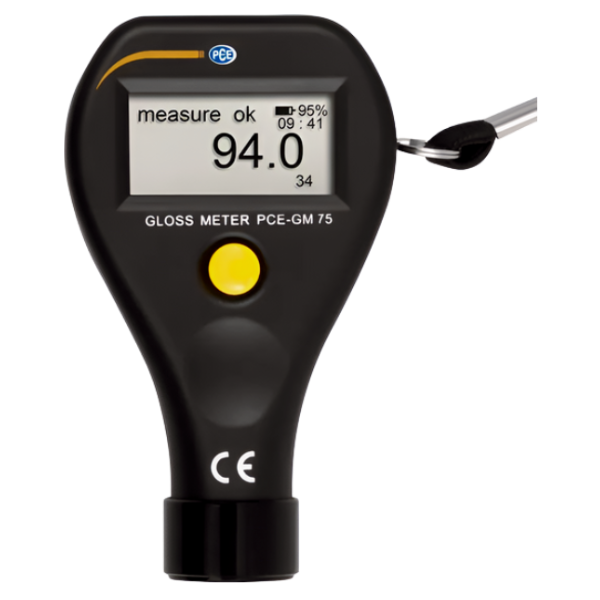

 Gloss meter

Surface testing for curvy and small surfaces / Data memory for 1,245 readings / Measuring geometry 60° / Evaluation also possible without additional software / One-key operation / Calibration standard included

The gloss meter has a measuring surface of Ø 4.5 mm. Thanks to this small measuring surface, the gloss meter enables measurements on particularly small surfaces. With a maximum inaccuracy of 1%, the gloss meter is a high-precision measuring instrument for fast and easy measurements on surfaces. The one-button operation allows quick and easy operation of the surface inspection device.

Another special feature of the gloss meter is the data storage function. This gloss meter automatically stores up to 1,245 measurements. To read the data, the gloss meter must be connected to a computer. No additional drivers or software are required to read the data from the gloss meter. The stored data is saved in the .txt file format on the surface inspection device and can be analyzed directly. In addition to the storage of the measured data, a time stamp is created per measurement.

Gloss and ISO requirements

Gloss – is one of those parameters that has got its own paragraph in ISO requirements, which means that as all the other parameters, it should be treated with attention and responsibility. Curvy surfaces often have more functionality and a much better optical look, and should not be ignored and left in the background by the producers just because the measurements on them are much more challenging. Application of the correct device destroys this type of obstacle and turns the challenging tasks into doable.

- Data memory for later evaluations
- For measurements on small surfaces
- Measuring range up to 1000 GU
- Precise measurements thanks to high accuracy
- Micro USB interface for PC connection
- Simple one-button operation


• 1 x Gloss meter PCE-GM 75
• 1 x Calibration standard
• 1 x Micro-USB cable
• 1 x Cleaning cloth
• 2 x 1.5V AAA battery
• 1 x User manual
