Schmidt รุ่นHVAC-100(10)เซ็นเซอร์สำหรับวัดการไหลและอุณหภูมิ,Flow and Temperature Sensor,Meas.range:0-10m/s

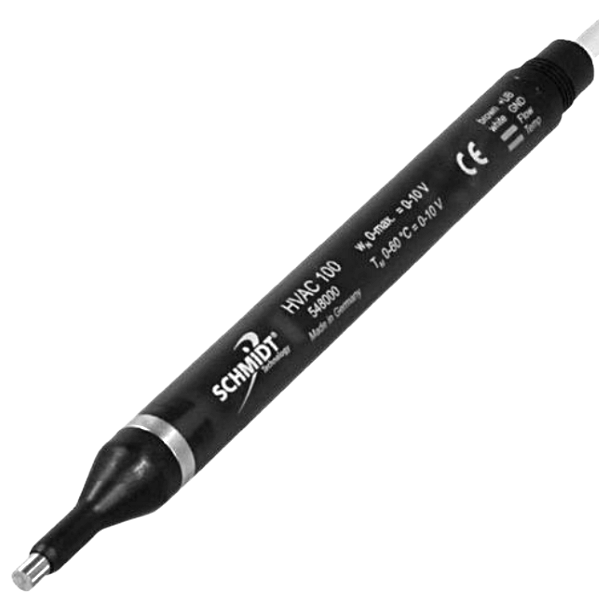

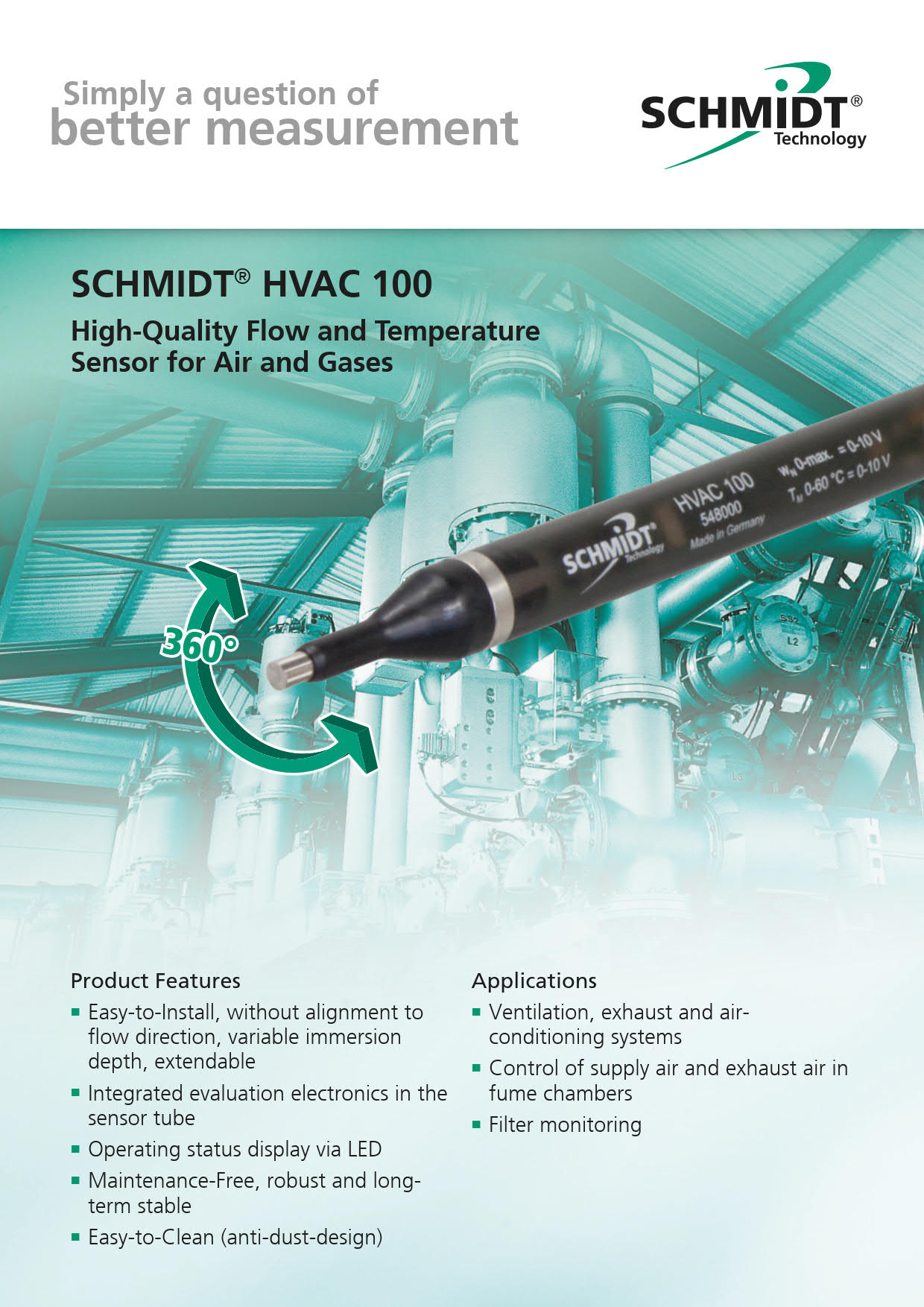

The SCHMIDT  HVAC 100 is designed for stationary measurement of the flow velocity and temperature of clean air at atmospheric pressure conditions. The resulting output signal is independent from the pressure and temperature of the medium to be measured. This device features a 360° measuring head which does not have to be aligned to the flow direction and can be extended by additional tubes (variable immersion depth). Furthermore, this sensor is maintenance-free, robust, long-term stable and easy-to-clean and therefore fulfills the main requirements for an efficient installation process.

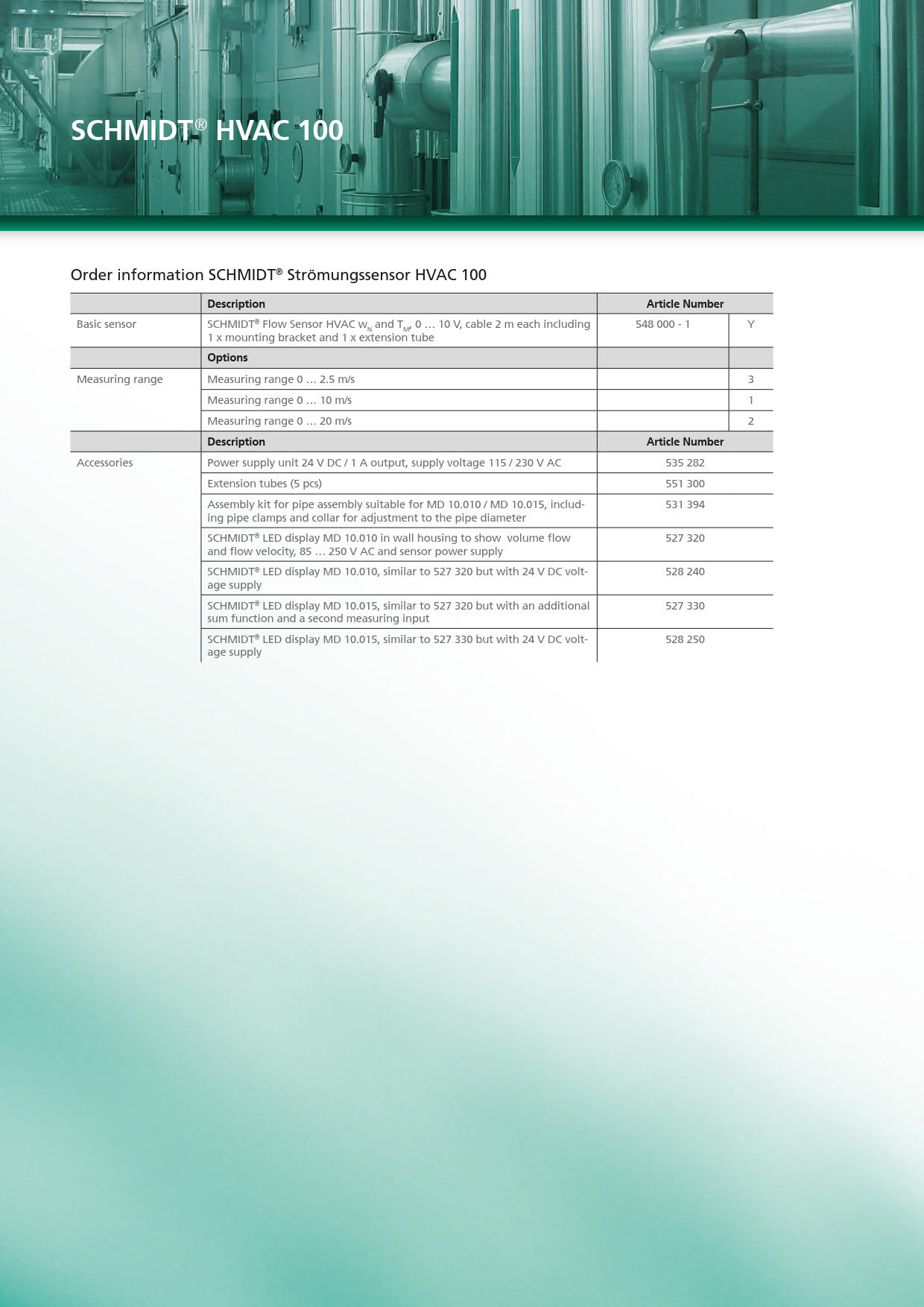

Schmidt HVAC 100 flow sensor models

• HVAC 100 – 2,5 m/s
• HVAC 100 – 10 m/s
• HVAC 100 – 20 m/s

*Flow rates are normalised to standard conditions of air @ 20°C and 1,013.25hPa.

Schmidt HVAC 100 flow sensor specifications

• Uncertainty within ±(4% reading + 2% full range)
• Operating temperature conditions -10…+60°C
• 0…10 V outputs (volume flow and temperature)
• Lower detection limit: 0.2 m/s
• IP40 III type of protection
• Probe length: 144 mm
• Extension tube pieces can be included to ensure an ideal straight length in/out of the flowmeter and ease of install to your process.

This instrument is a low cost solution for applications like: ventilation, exhaust and air-conditioning systems, filter monitoring, fume chambers, among others.
