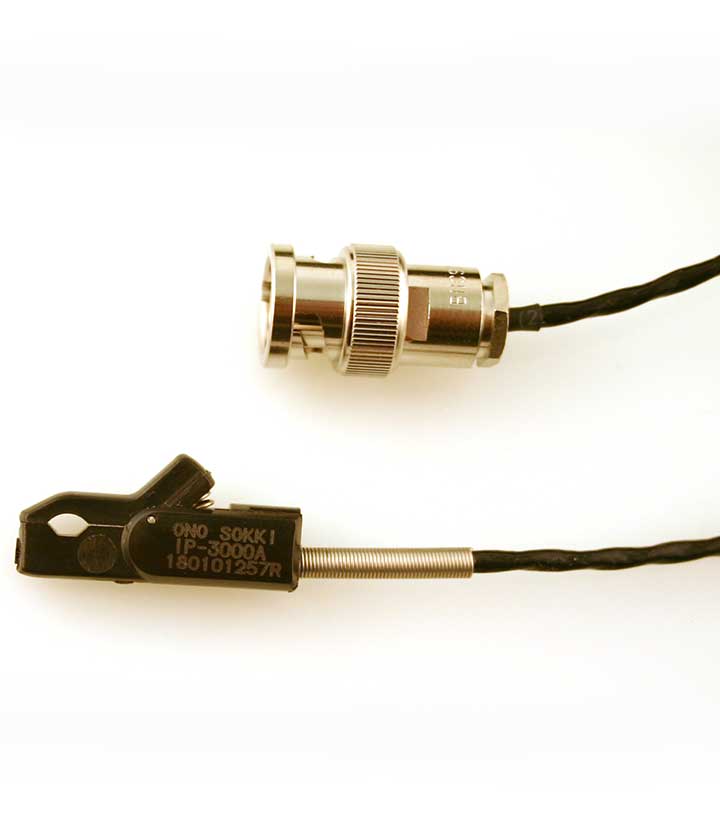

OnoSokki รุ่น IP-3000A เซ็นเซอร์สำหรับเครื่องวัดความเร็วรอบของเครื่องยนต์,Engine vibration detector

OnoSokki รุ่น IP-3000A เซ็นเซอร์สำหรับเครื่องวัดความเร็วรอบของเครื่องยนต์,Engine vibration detector
รหัสสินค้า SKU-13834
หมวดหมู่ Ono sokki
ราคาปกติ 12,000.00 บาท
ลดเหลือ 0.00 บาท
สถานะสินค้า Pre-Order
ลงสินค้า 21 ธ.ค. 2565
อัพเดทล่าสุด 18 ม.ค. 2568
คงเหลือ 1 ชิ้น
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
OnoSokki รุ่นSE-1620เครื่องวัดความเร็วรอบของเครื่องยนต์,Digital Engine Tachometer

Input Section Applicable Detectors
(option)
  • IP-292 Ignition pulse detector (For primary side cable of ignition coil)
  • IP-296 Ignition pulse detector (For secondary side cable of ignition coil)
  • IP-3000A Ignition pulse detector (Low sensitivity type)
  • OM-1500/1200 Motor/gasoline engine RPM detector(Electro-magnetic type)
  • VP-202 Gasoline/diesel engine detector (Low sensitivity type)
  • VP-1220 Gasoline/diesel engine detector (High sensitivity type)
  • LG-916 (TTL signal input) Photoelectric reflection type detector
Applicable Engines Gasoline Engine
2-cycle (1 to 4 cylinders)
4-cycle (1 to 6, 8, 10, 12 cylinders)
Measurement Ranges
■ 2-cycle
1, 2 cylinders : 500 to 20,000 r/min
3 cylinders : 500 to 16,000 r/min
4 cylinders : 500 to 12,000 r/min
■ 4-cycle
1 to 5 cylinders : 500 to 20,000 r/min
6 cylinders : 500 to 16,000 r/min
8 cylinders : 500 to 12,000 r/min
10 cylinders : 500 to 10,000 r/min
12 cylinders : 500 to 8,000 r/min
Input Connectors Sensor input: BNC connector
TTL input: 6-pin connector (R03RB6F, externally-supplied power supply; 12 V 100 mA)
Input Gain Selector x1, x5, x10, x20, selectable
Display Section Display 100-mm wide-angle meter, Class 1.5
Meter Scale (Double scale) 0 to 10,000 r/min or 0 to  20,000 r/min
Scale printed in monochrome
Analog Output
Section
Output Voltage 0 to 10 V
(In proportion to 0 to 10,000 r/min or 0 to  20,000 r/min)
Output Voltage Setting Accuracy Zero; ±0.2%/FS (25°C)
Span; ±0.3%/FS(25°C)
Linearity ±0.2%/FS at most
Ripple 250 mVp-p or less (at 500 r/min)
Output Impedance 1 Ω or less (25°C)
Response Approx. 20 ms
Load Resistance At least 10 kΩ
Output Connector R03-RB3F
Pulse Output
Section
Output Waveform Rectangular waveform
Pulse width; Approx. 2 ms
Output as 1 pulse/2 revolutions (1 pulse /revolution available as an option)
Output Voltage Hi level; At least 4.5 V
Lo level; Up to 0.5 V
Load Resistance At least 50 kΩ
Output Connector R03-RB3F
General Specifications Power Supply 12 V to 24 VDC
Current Consumption Approx. 500 mA (at 12 VDC)
Operating Temperature Range 0 to 40 °C
Storage Temperature Range -10 to 60 °C
Operating Humidity Range 80 % RH max. (non-condensing)
Storage Humidity Range 80 % RH max. (non-condensing)
Weight Approx. 1.3 kg
External dimensions 221 (W) x 116 (H) x 150 (D) mm
Accessories ・Analog output cable (1.9m)
・Pulse output cable (1.9m)
・Power cable (3.4m)
