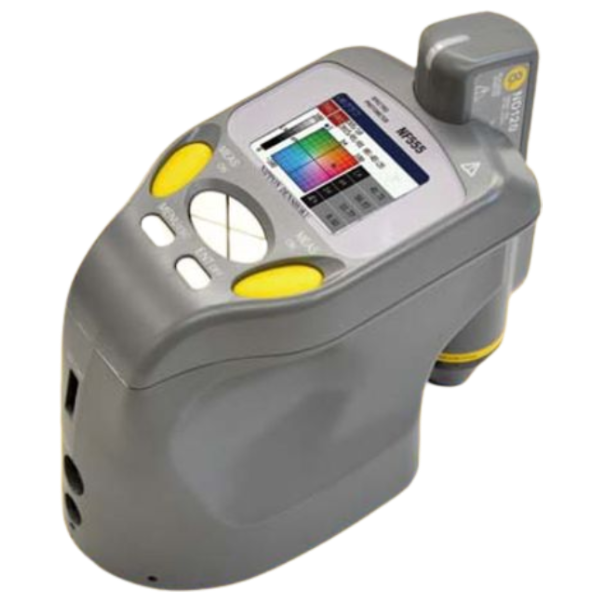

NipponDenshoku รุ่น NF-555 สเปกโตรโฟโตมิเตอร์,Spectrophotometer,meas.wavelength:400nm-700nm 20nm interval wavelength

• Instrument with three test methods to choose from

1. Pen test method.It has the characteristics of optical mobility and is particularly suitable for measuring recessed places, hidden places, such as recessed places of objects, skin, fruits, bagged powders, etc. Positioning frame type  Allows confirmation of target position, particularly suitable for partial determination of objects such as printed materials.Mouse Type It combines optical sensing test and physical test in one, and can be tested on horizontal or vertical surfaces with one hand.

• Color management system

Connecting the PC to the measuring instrument allows data to be processed, including management, analysis, and even copying. It supports copying the generated screen to the table information software and other external software to facilitate further management of the instrument measurement data.

• Standard specifications:

JIS Z8722 JIS Z8781-4 JIS 8730 ASTM E308 ASTM E313

• Characteristics

• Two basic measurement standard Compare the standard color with the sample by operating the instrument buttons to set the standard value Export the data stored in the instrument and set it as the standard value  Adapt to the samples measured on the market and provide two measurable apertures  Color management for printed materials, small area painting, etc. Aperture 4mm

• Color management for decoration, synthetic resin, building materials, etc. Aperture: 8mm

• Clear color LCD display The instrument uses a color LCD display and generates a color chart similar to the measured value, so that the observer can clearly analyze the test results.

• A handy, lightweight, compact and portable spectrophotometer.
• Three measurement methods can be selected according to the shape and size of the sample.
• One unit can measure spectral reflectance, various color values, reflection density, etc.
• Each measurement item is measured in the wavelength range of 400nm to 700nm, with output at 20nm intervals.
• By using a long-life, multi-color LED light source , lamp replacement and running costs are significantly reduced.
• The standard LCD display can also display graphs such as color deviation criterion charts and chromaticity coordinates.
• By using the standard color management software, data can be displayed on a PC screen and analysis can be performed using various chromaticity diagrams.
