รหัสสินค้า | SKU-13808 |

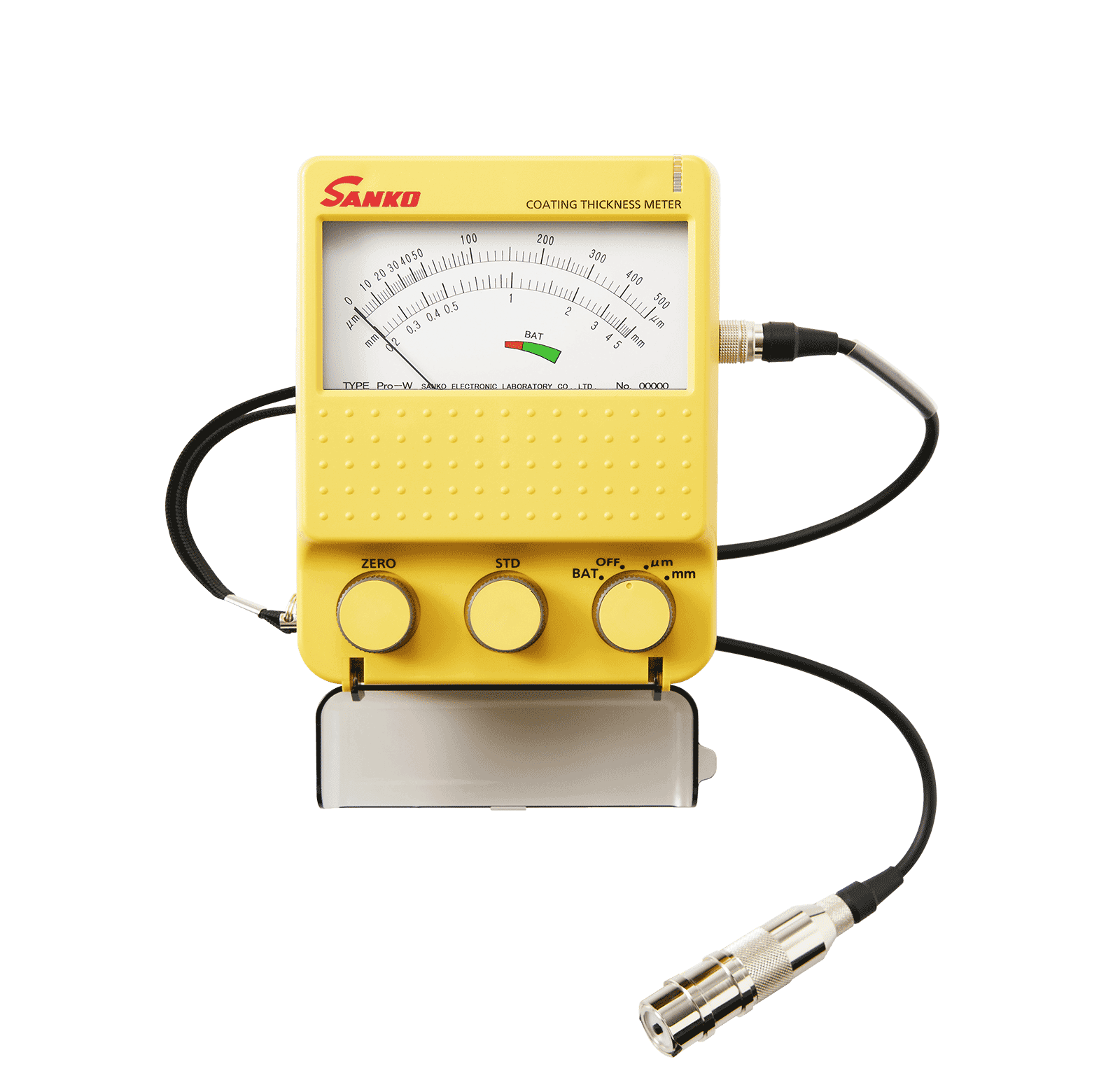

หมวดหมู่ | •เครื่องวัดความหนาของสารเคลือบ(Electro-Magnetic Coating thickness Meter) |
ราคาปกติ | |
ลดเหลือ | 0.00 บาท |
สถานะสินค้า | Pre-Order |
ลงสินค้า | 12 ธ.ค. 2565 |
อัพเดทล่าสุด | 12 ธ.ค. 2565 |
คงเหลือ | 1 ชิ้น |
จำนวน | ชิ้น |
|
SPECIFICATIONMethod
Electromagnetic Type
Measuring object
Non-conductive film and non-magnetic film on the ferrous substrate (including and ferritic stainless such as SUS430 etc.)
Measuring range
0~500μm・0.2~5mm
Measuring accuracy
±2μm against uniform surface or±5% of reading (whichever is larger)
Probe
One point contact constant
Pressure type φ17x85mm Electrode: Ultra anti-abrasive with CVD treatment Power source
Dry batteries (1.5 V) x 6 pcs
Operating temperature
0~40 (w/o condensation)
Dimensions
137 (D) x 50 (H) x 110 (W)
Weight
about470g
Accessories
Carrying case, standard plates, Standard plate case, Batteries, Instruction manual
|
