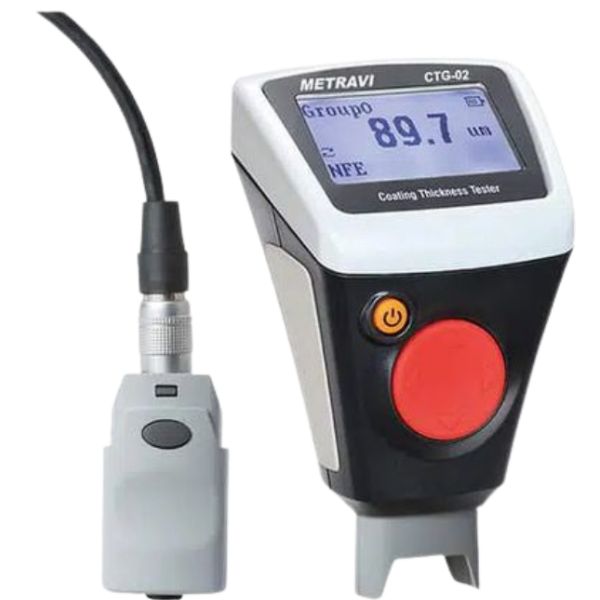

Metravi รุ่นCTG-02เครื่องวัดความหนาผิวเคลือบ,Coating Thickness Gauge

Measures Coating thickness on both ferrous and non-ferrous materials. Also comes with an external probe.
  • Measures coating thickness on both Ferrous and Non Ferrous materials with interface cable & Software. Measures Coatings: Non-magnetic coatings (e.g. paint, zinc) on steel; Insulating coatings(e.g. paint, anodizing coatings)on non-ferrous metals.
  • Operates with MENU easily. Memory for 2500 readings. Delete single readings and all group readings easily. Error indication.
  • Disable Auto-Power-off function via MENU setting. Separate sensor with cable to be attached to the instrument for external probe.
  • Measuring Ranges :- Ferrous: 0 ~ 2000um / 0 ~ 78.7mils Non Ferrous: 0 ~ 2000um / 0 ~ 78.7mils. Guaranteed Tolerance :- Ferrous : ±2% +2um / ±2% + 0.08 mils Non Ferrous: ±2% +2um / ±3% + 0.08mils.
  • Precision :- Ferrous: 0.1um / 0.01 mils Non Ferrous: 0.1um / 001 mils. Minimum Curvature radius :- Ferrous: 1.5mm / Non-Ferrous: 3mm. Diameter of Minimum Area :- Ferrous: 7 mm / Non ferrous: 5 mm. Basic critical thickness:- Ferrous: 0.5mm / Non Ferrous: 0.3mm.


Specification:

  • Measures coating Thickness on both Ferrous and Non Ferrous materials with interface cable & S/W
  • Measured Coatings: Non-magnetic coatings (e.g. paint, zinc) on steel; Insulating coatings(e.g. paint, anodizing coatings)on no-ferrous metals
  • Operating with MENU easily
  • Memory for 2500 readings
  • Delete single readings and all group readings easily
  • Error indication
  • Disable Auto-Power-off function via MENU setting
  • Separate sensor with cable to be attached to the instrument.
  • Disable Auto Power Off function via MENU setting.
  • Measuring Ranges :-
  • Ferrous : 0 ~ 2000um / 0 ~ 78.7mils
  • Non Ferrous : 0 ~ 2000um / 0 ~ 78.7mils
  • Guaranteed Tolerance :-
  • Ferrous : ±2% +2um / ±2% + 0.08 mils
  • Non Ferrous : ±2% +2um / ±3% + 0.08mils
  • Precision :-
  • Ferrous : 0.1um / 0.01 mils
  • Non Ferrous : 0.1um / 001 mils
  • Minimum Curvature radius :-
  • Ferrous : 1.5mm / Non-Ferrous : 3mm
  • Diameter of Minimum Area :-
  • Ferrous : 7 mm / Non ferrous : 5 mm
  • Basic critical thickness :-
  • Ferrous : 0.5mm / Non Ferrous : 0.3mm
