Spirax Sarco รุ่นUP-100เครื่องทดสอบกับดักแบบอัลตราโซนิก,Ultrasonic Trap Tester,Operating range:0～50°C

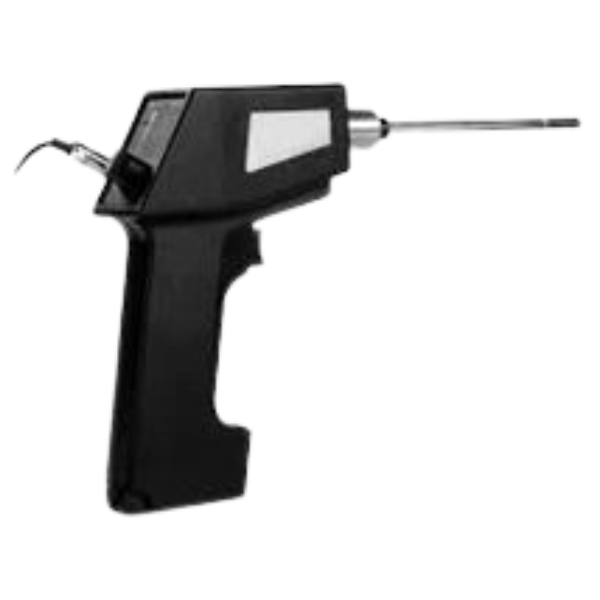

The UP100 is a portable battery powered instrument which gives visible and audible indication of ultrasonic frequencies. It is intended for use as a diagnostic tool in the analysis of steam trap operation and can also be used to detect leaks in steam and compressed air systems. Some experience, together with a working knowledge of steam trap operation, is required to correctly interpret the signals.

The UP100 consists of 4 components:

1. The pistol housing.

2. The stethoscope probe module with extension rods.

3. The headset with extension cable.

4. The flexible carrying case.

Limiting conditions

Ambient temperature operating range: 0 to 50°C

Ambient temperature storage range -18 to 54°C

Operation

 Full operating instructions are included with each UP100.

Note: The UP100 is not suitable for use in hazardous areas.

Materials of construction

Spares

The following spares are available:
• 9 volt alkaline battery
• Sony MDR 24 headset (non standard male plug)
• STM-1 probe
• 788 mm extension rods

Dimensions (approximate) in millimetres
