Model
|
Description
|
Assessed Profile
|
R (Roughness), W (Waviness), P (Primary profile)
|
Measuring Range
|
800µm, 80µm, 8µm
|
Filtering
|
RC, PCRC, Gauss, D-P, ISO 13565
|
Evaluation Parameters
|
- R: Ra, Rp, Rv, Rt, Rz, Rq, Rsk, Rku, Rc, RS, RSm, Rlo, RHSC, Rpc, Rmr(c), RzJIS, R3y, R3z
- W: Wa, Wp, Wv, Wt, Wz, Wq, Wsk, Wku, Wc, WS, WSm, Wlo, WHSC, Wpc, Wmr(c), WzJIS
- P: Pa, Pp, Pv, Pt, Pz, Pq, Psk, Pku, Pc, PS, PSm, Plo, PHSC, Ppc, Pmr(c), PzJISRk: Rk, Rpk, Rvk, Mr1, Mr2
|
Cut off Length
|
0.08mm, 0.25mm, 0.8mm, 2.5mm, 8mm
|
Max. Driving Length
|
40mm
|
Analysis Graphs
|
ADC, BAC
|
Evaluation Length
|
1L-5L
|
Resolution
|
0.0001μm/8μm
|
Display
|
LCD
|
Memory
|
10 groups of primary data
|
Data Output
|
USB, RS232
|
Power Supply
|
Li battery / AC adapter
|
Dimensions
|
409 × 96 × 98mm
|
Weight
|
2.3Kg
|
Standard Configurations
|

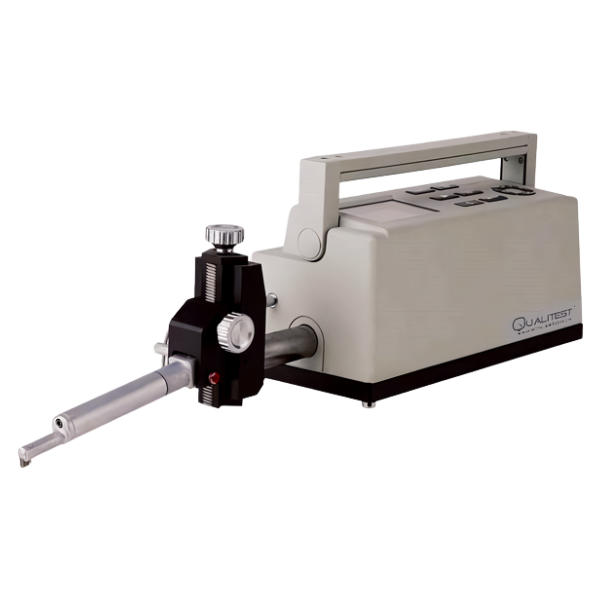

- Main unit
- Pickup transducer probe
- Roughness test block
- Calibration certificate
- Software program
|
- USB and RS232 cable
- Power adapter 9V/4A
- Instruction manual
- Carrying case
|
|
