Qualitest รุ่นQualisurf-II-Sเครื่องวัดความเรียบผิวแบบพกพา,Portable Surface Roughness Tester,#Qualisurf-II-S

QualiSurf II surface roughness tester is suitable for the scientific labs, factory metrology rooms and working site. It can test the surface roughness of various machining components and allows for user selectable 45 roughness units in Ra, Rz etc. The testing results and surface profile can be stored in QualiSurf II unit and be output to PC.

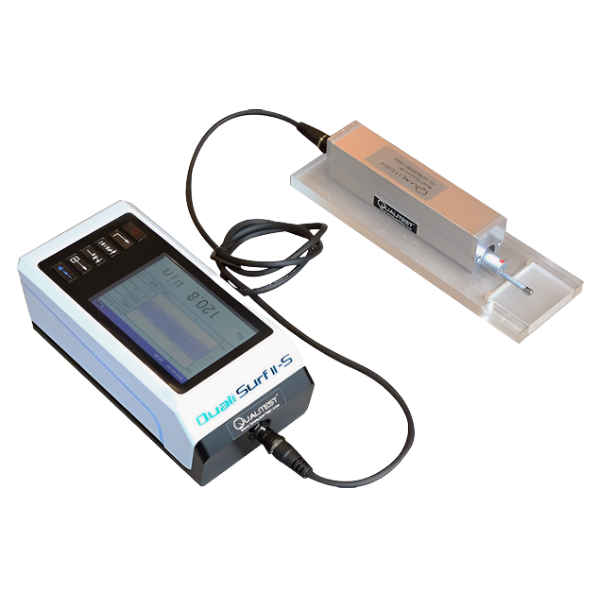

Besides QualiSurf II, Qualitest also offers QualiSurf IIS which has an external transducer with extended connection cable. QualiSurf II S is suitable for measuring the surface roughness inside the pipes and tubes.

• Multi-parameter measuring: Ra, Rp, Rv, Rt, Rz, Rq, Rsk, Rku, Rc, RPc, RSm, Rmr(c), tp, Rmr, Rpm, Rz1max, RzJIS, Rmax, Htp, Rδc, RΔq, RΔa, Pa, Pp, Pv, Pt, Pz, Pq, Psk, Pku, Pc, PSm, Pmr(c), Pmr, Pz1max, PzJIS, Pδc, PΔq, Rk, Rpk, Rvk, Mr1, Mr2, A1, A2
• Touch screen / TIFT coloured LED display
• High accuracy inductance pickup
• Filtering methods of 2RC, GAUSS
• Conforms to standards of ISO1997, ANSI and JIS2001
• Display showing all parameters values and graphs after measurement
• Can be connected to PC or mini printer to print all parameters and graphs
• Both USB port and RS232 interface
• Automatic switch off

• • QualiSurf IIS main unit
  • Standard pickup stylus transducer
  • Probe driver
  • Connection cable for transducer to the QualiSurf IIS unit
  • Calibration certificate
  • Roughness standard block
  • Software and communication cable
  • Portable Magnetic base with fixture
  • Battery charger
  • Screw driver
