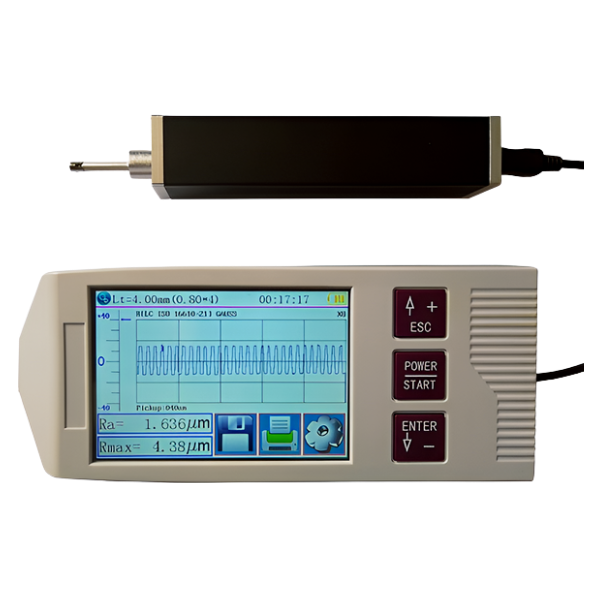

Portable Roughness Meter TR200 (Blue)

The surface roughness measuring instrument is a hand-held instrument suitable for the production site environment and mobile measurement needs. It can measure the surface roughness of various machined parts, calculate the corresponding parameters according to the selected measurement conditions, and display them on the display. All measurement parameters and contour graphics are displayed on the display. The instrument is easy to operate, comprehensive in functions, fast in measurement, stable in accuracy, and easy to carry. It can measure the main parameters of the latest international standards. This instrument fully and strictly implements international standards. The measurement parameters conform to international standards and are compatible with the standards of the United States, Germany, Japan, the United Kingdom and other countries. It is suitable for testing in workshop verification stations, laboratories, measuring rooms and other environments.

main feature:

• Mechatronic design, small size, light weight, easy to use.

• Adopt DSP chip for control and data processing, with fast speed and low power consumption .

• Large range, multi-parameter Ra, Rz, Rq, Rt.

• High-end machines add parameters such as Rp, Rv, R3z, R3y, RzJIS, Rs, Rsk, Rsm, Rku, Rmr .

• 128×64 OLED dot matrix display, digital/graphic display; high brightness without viewing angle.

• The display information is rich and intuitive, and can display all parameters and graphics .

• Compatible with ISO, DIN, ANSI, JIS national standards .

• Built-in lithium-ion rechargeable battery and charging control circuit, high capacity, no memory effect .

• There is a remaining power indicator icon to remind the user to charge in time .

• The charging process indication can be displayed, and the operator can know the charging level at any time .

• The continuous working time is more than 20 hours .

• Large-capacity data storage, which can store 100 sets of original data and waveforms.

• Real-time clock setting and display is convenient for data recording and storage.

• It has power-saving functions such as automatic sleep and automatic shutdown.

• Reliable anti-motor dead circuit and software design.

• Display measurement information, menu prompt information, error information, and various prompt information such as power on and off.

• All-metal shell design, strong, compact, portable, and high reliability.

• Chinese/English language selection .

• Can be connected to a computer and a printer .

• All parameters or any parameter set by the user can be printed.

• Optional surface sensor, small hole sensor, measuring platform, sensor sheath, extension rod and other accessories.

The standard configuration

select configuration
