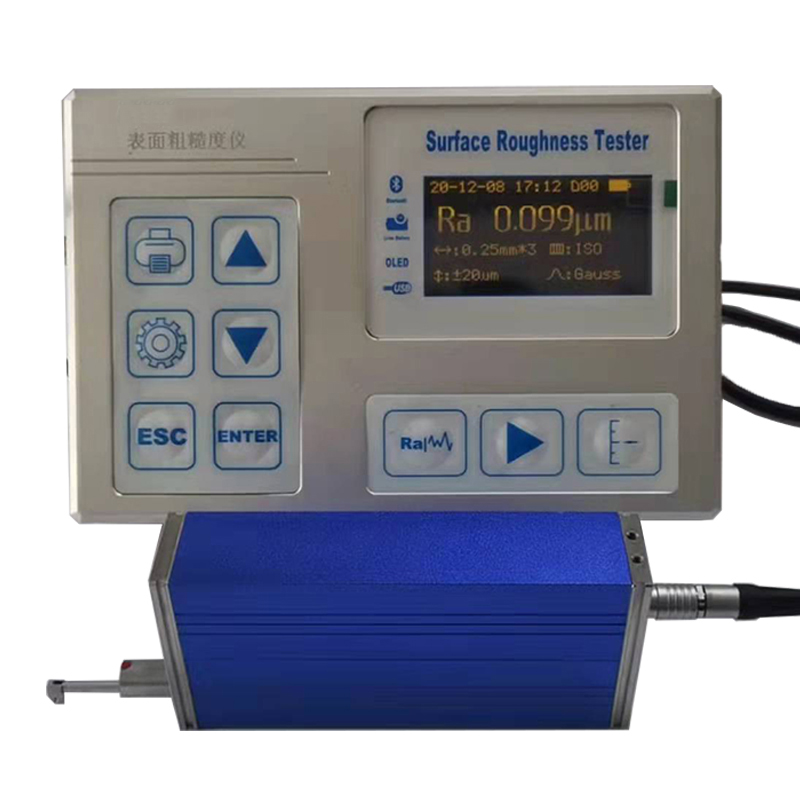

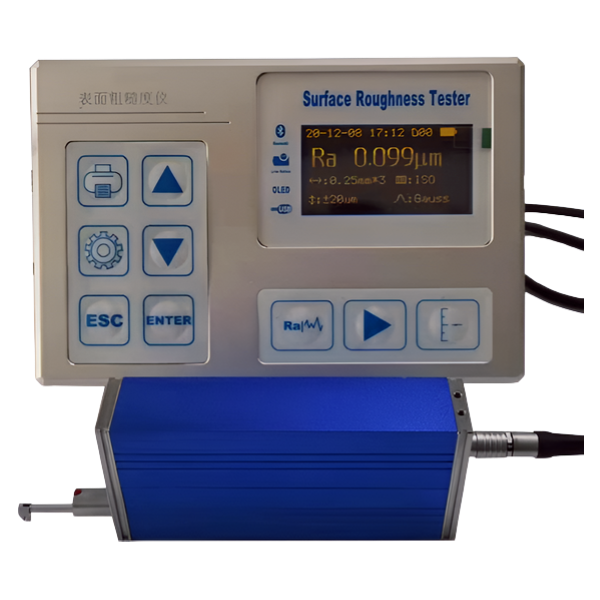

Ritek รุ่นTR-300เครื่องวัดความหยาบผิวแบบแยกส่วนแบบพกพา,Portable Split Type Surface Roughness Meter

The surface roughness measuring instrument is a hand-held instrument suitable for the production site environment and mobile measurement needs. It can measure the surface roughness of various machined parts, calculate the corresponding parameters according to the selected measurement conditions, and display them on the display. All measurement parameters and contour graphics are displayed on the display. The instrument is easy to operate, comprehensive in functions, fast in measurement, stable in accuracy, and easy to carry. It can measure the main parameters of the latest international standards. This instrument fully and strictly implements international standards.

The measurement parameters conform to the national standard of GB/T 3505 "Geometric Technical Specifications for Products Surface Structure Profile Method Surface Structure Terms, Definitions and Parameters", and GB/T 6062 "Technical Specifications for Product Geometric Quantities (GPS) Surface Structure Profile Method Contact (Touch Needle) nominal characteristics of instruments" and compatible with the standards of the United States, Germany, Japan, the United Kingdom and other countries.

It is suitable for a variety of machined parts, machining manufacturing, inspection, commodity inspection and other departments, especially for on-site inspection of large workpieces and production lines, as well as out-of-home inspection of inspection, measurement, commodity inspection and other departments, without causing damage to the workpiece.

The range of measurable workpieces: plane, outer circular surface, conical surface, inner hole, groove, curved surface, etc. (special surfaces need to be measured with suitable sensors)

Main feature:

l   Multi-parameter measurement: Ra, Rz, Ry, Rq, Rp, Rv, Rt, R3z, Rmax, RSk, RS, RSm, Rmr;

l   High precision inductive sensor

l   RC, PC-RC, GAUSS, DP four filtering methods;

l   Compatible with TSO, DIN, ANSI, JIS four standards;

l   OLED liquid crystal display, all parameters and graphics can be displayed;

l   Built-in standard RS232 interface, USB interface,

l   Two shutdown methods: manual shutdown, automatic shutdown;

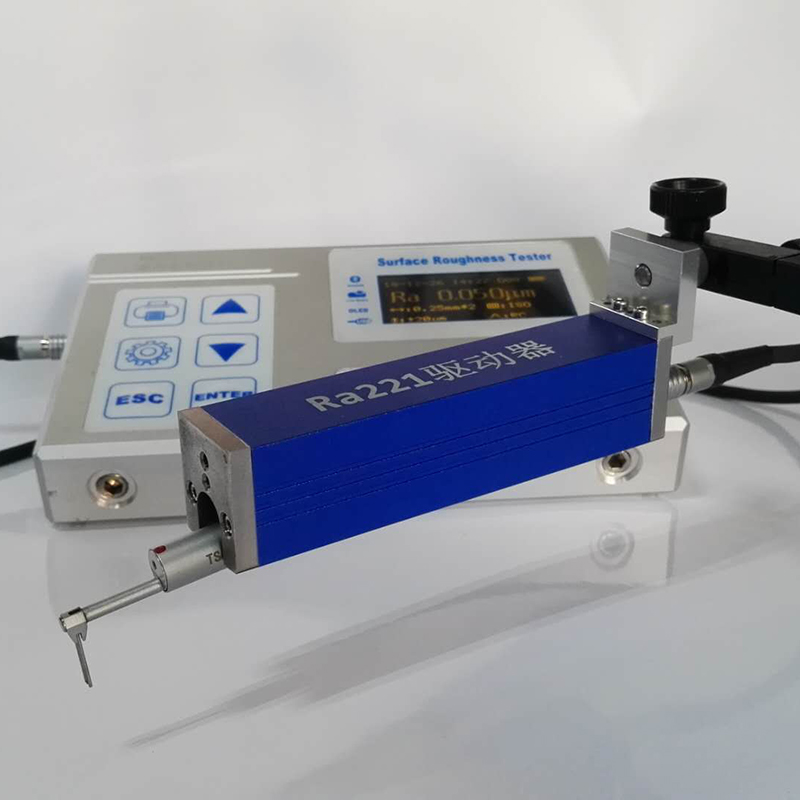

l   Split design, the driver is small in size and easy to use

The standard configuration

select configuration
