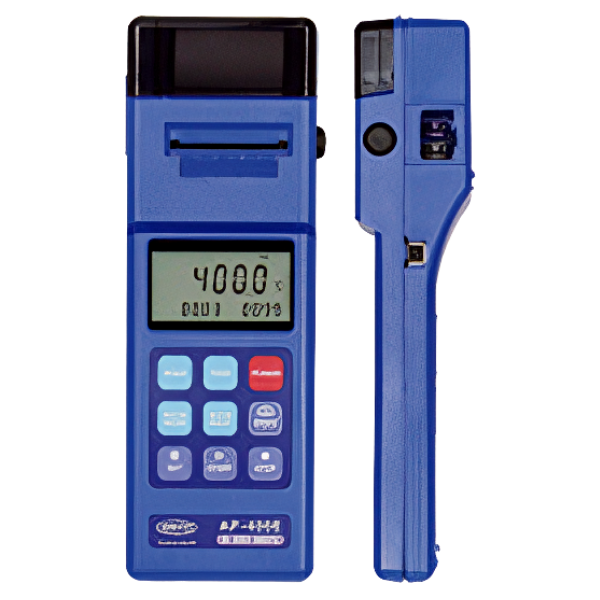

Model |
AP-400E |
AP-400K |
display |
7-segment LCD (liquid crystal) |
operation switch |
membrane switch |
Input connector |
ASP connector (thermocouple homogenous metal) |
Input *1 |
Thermocouple type E |
Thermocouple type K |
number of inputs |
1 |
range of measurement |
1°C decomposition |
-200 to 800℃ |
-200 to 1370℃ |
0.1°C resolution |
-104.9 to 504.9°C (automatically switches to 1°C resolution outside the measurement range) |
Measurement accuracy |
1°C decomposition |
0°C or higher: ±(0.1% of indicated value + 1)°C |
Below 0°C: ±(0.5% of indicated value + 1)°C |
0.1°C resolution |
0°C or higher: ±(0.05% of indicated value + 0.2)°C |
Below 0°C: ±0.5°C |
Reference junction compensation accuracy |
±0.2℃ (at 25℃±10℃) |
temperature coefficient |
±0.01%/°C of measurement range outside 25°C ±10°C environment |
signal source resistance |
500Ω or less |
operating conditions |
0 to 40°C, within 0 to 80% RH (no condensation) |
Storage conditions |
-20 to 50°C, within 0 to 85% RH (no condensation) |
Usage time |
See table below |
power supply |
Inside: 4 alkaline AA batteries (LR6) |
External: AC adapter (sold separately) |
sampling period |
See table below |
Linearization method |
Digital linearization method (compliant with JIS C 1602-2015) |
printing unit |
Character height 2.5mm (approximately 1000 lines printed per roll) |
Printing method |
Thermal serial dot method |
memory capacity |
100 data |
built-in battery |
Lithium battery (for clock backup) |
Battery life: about 5 years (stored at room temperature) |
External dimensions |
Approx. 68(W) x 201(H) x 42(D) mm (excluding protrusions) |
mass |
About 350g (including batteries) |
accessories |
Instruction manual, test report, warranty card |
Soft case, simple tool |
Alkaline AA battery (LR6) x 4 |
ACAP4 (1 box of printer paper) |
Compliant standard |
RoHS2 Directive |
