รหัสสินค้า | SKU-13435 |

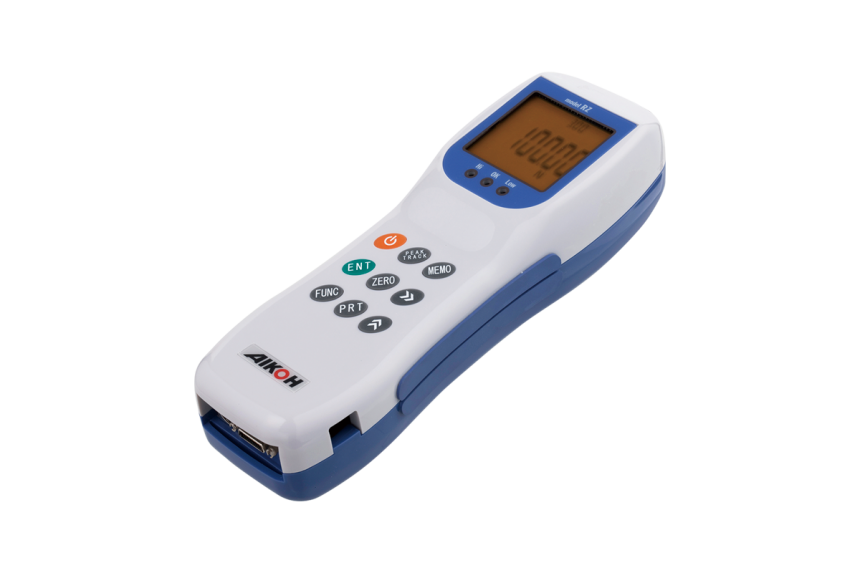

หมวดหมู่ | AIKOH-Digital force gauge(เครื่องมือวัดและทดสอบแรงแบบดิจิตอล) |
ราคาปกติ | |
ลดเหลือ | 0.00 บาท |
สถานะสินค้า | Pre-Order |
ลงสินค้า | 3 ส.ค. 2565 |
อัพเดทล่าสุด | 3 ส.ค. 2565 |
คงเหลือ | 1 ชิ้น |
จำนวน | ชิ้น |
Product Information |
Specification |
RZ-1 | RZ-2 | RZ-5 | RZ-10 | RZ-20 | RZ-50 | RZ-100 | |
Rated capacity | 10N (1Kgf) |
20N (2Kgf) |
50N (5Kgf) |
100N (10Kgf) |
200N (20Kgf) |
500N (50Kgf) |
1000N (100Kgf) |
Min. display unit | 0.001N (0.1gf) |
0.01N (1gf) |
0.1N (10gf) |
||||
Accuracy | ±0.2%F.S. | ||||||
Sampling cycle | 1 ms, 5 ms, 16 ms, 50 ms, 125 ms and 250 ms selectable | ||||||
Display update interval | 1, 2, 5, 10, 20 times/sec. Selectable | ||||||
Display | LCD, signed, 5 digits | ||||||
Output | USB output Analog voltage ±2V / F.S. Printer output Motorized stand control External connection hold |
||||||
Mass | Approx. 375g | ||||||
Power supply | Nickel-metal hydride battery, AC adapter Model 780(100VAC – 240VAC) | ||||||
Standard accessories |
※Hook of 011B for RZ-100 is different from standard hook,the wire diameter is Φ4 |
||||||
Options | Output cable, software RZ-3000, test stand, printer BL2-58SNWJC | ||||||
Optional cables | I/O cable RZ-OP-1, I/O cable RZ-OP-2, Mitutoyo DP-1VR printer cable RZ-OP-3, Sanei Electric line thermal printer cable RZ-OP-4 RZ-OP-1 : For Stand control function only RZ-OP-2 : For Stand control function, Analog output and Comparator output |
