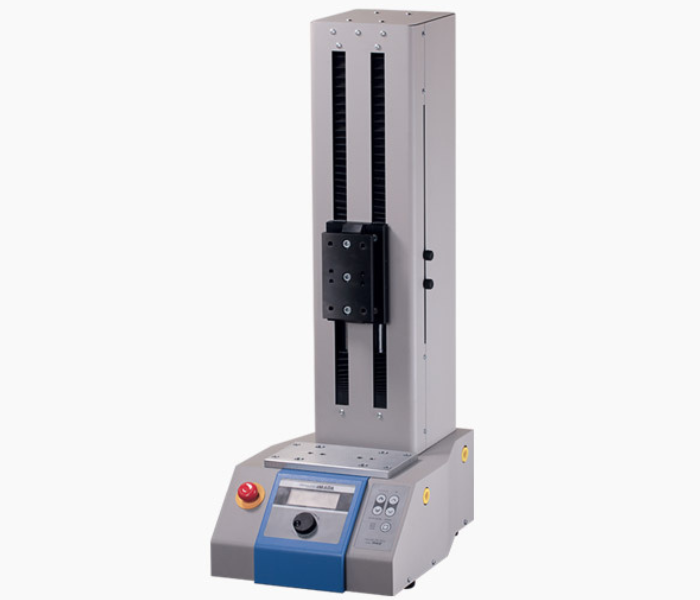

Imada รุ่นMX2-5000Nแท่นสแตนสำหรับยึดเครื่องทดสอบแรงดึงแรงกด,Motorized test stand(Approx.51kg),capacity:5000N,speed:0.5～300mm/min

Model

MX2-500N

MX2-1000N

MX2-2500N

MX2-5000N

Maximum load

500 N

1000 N

2500 N

5000 N

speed

Digital 10-300 mm / min
[10-20 mm / min: Setting 0.5 mm / min unit]
[20-100 mm / min: Setting 5 mm / min unit]
[100-300 mm / min: Setting 10 mm / min unit]

Digital
0.5-300 mm / min [0.5-20 mm / min: Setting 0.5 mm / min unit]
[20-100 mm / min: Setting 5 mm / min unit]
[100-300 mm / min: Setting 10 mm / min unit ] ]

Maximum sample
height _{(* 1)}

Approximately 235 mm

About 300 mm

About 320 mm

Approximately 380 mm

Flexibility

[Normal specifications] 0.5 mm or less

[Optional long stroke] 1.0 mm or less

[Option extension]
1.0 mm or less

Stroke
limit

Knob type vertical stroke limit

action mode

Manual mode / JOG mode / Cycle mode

function

Counter: Maximum 65535 times (measurement count setting / counting function)
Timer: Maximum 99 minutes 59 seconds 9 (0.1 second unit)

control

Emergency stop, load control _{(* 2)} , overload prevention _{(* 2 * 3)} , external input / output

Operating environment
temperature and humidity

0 ° C-40 ° C
35-70% (no condensation)

Power-supply voltage

AC100-240V, 50 / 60Hz  _{(Specify from 100, 120, 230V. Accessories are different.)}

power consumption

50W

150W

size

w220 x D380 x H562 mm

w280 x D410 x H660 mm

w280 x D410 x H644 mm

w295 x D444 x H823 mm

weight

Approximately 18.0 kg

Approximately 19.0 kg

Approximately 26.0 kg

About 51.0 kg

accessories

Instruction manual, power cord, spare fuse, tools

Instruction manual, power cord, spare fuse, tool, yellow cap, transport handle

GF-1 (Chuck mounting plate)

GF-2 (chuck mounting plate), high load type force gauge mounting plate

GF-2 (chuck mounting plate), standard force gauge mounting plate

Available
options
_{(* 4, 5, 6)}

-L: -L: Stroke 200mm extension-
2L: Stroke 400mm extension _{(* 7)}
-CN: External signal input
-S:
Length gauge -FA: Displacement sensor built
-in -V45: Speed 1.5-45mm / min
-V90: Speed
3-90mm / min -V450: Speed 15-450mm / min
-V600: Speed 20-600mm / min
-V900: Speed 30-900mm / min

-L: Stroke 300mm extension-
CN: External signal input -
S: Length measuring instrument
-FA: Displacement meter built
-in-V75: Speed 2.5-75mm / min
-V150: Speed 5-150mm / min
-V750: Speed 25-750mm / min
-V1000: Speed 35-1000mm / min

-L: Stroke 300mm extension-
CN: External signal input -
S: Length gauge-
FA: Displacement meter built
-in-V75: Speed 2.5-75mm / min
-V150: Speed 5-150mm / min

-EXT: 200mm Strut extension _{(* 8)}
-CN: External signal input
-S: Length measuring instrument
-FA: Displacement meter built-in

Mountable
force gauge
_{(* 9)}

Mechanical force gauge: FB, PS, PSM series
Digital force gauge: DST, DSV, ZTS, ZTA series (1000N or less)
Load cell: DPU series (500N or less _{* 10} )

Mechanical force gauge: PSH series
Digital force gauge: ZTS, ZTA series (2500N or more)
