Horiba รุ่น WQ-310D-S เครื่องวัดค่าออกซิเจนในน้ำแบบดิจิตอล,Optical Dissolved Oxygen Meter Field Type Multi-Digital Water Quality Meter Set LAQUA

Horiba รุ่น WQ-310D-S เครื่องวัดค่าออกซิเจนในน้ำแบบดิจิตอล,Optical Dissolved Oxygen Meter Field Type Multi-Digital Water Quality Meter Set LAQUA
รหัสสินค้า SKU-13289
หมวดหมู่ เครื่องวัดคุณภาพน้ำแบบพกพา(Pocket Water Quality Meters),Horiba
ราคาปกติ 140,000.00 บาท
ลดเหลือ 0.00 บาท
สถานะสินค้า Pre-Order
ลงสินค้า 13 ก.ค. 2565
อัพเดทล่าสุด 12 ส.ค. 2567
คงเหลือ 1 ชิ้น
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

Optical DO sensor. Excellent performance and long life.

Optical type adopted by JIS / ISO.
* Factory wastewater test method JIS K 0102: 2016 / International Organization for Standardization ISO 17289

Since it is an optical type (emission phase measurement method), it is easy to handle in various situations. Achieves good response without being affected by flow velocity.

Atmospheric calibration bottle is included as standard. Atmospheric calibration is possible immediately by reducing errors due to humidity effects. Also ideal for sensor storage.

Automatic salinity correction (when used with COND sensor) ・ Automatic atmospheric pressure correction is possible.

The stable state of measurement is notified by the LED of the sensor and the 😊 mark on the meter.

Uses color graphic Blanview® LCD

Efficiently collects external light inside the liquid crystal display. We have realized a screen that is easy to see not only in the dark but also in direct sunlight.

* Blanview is a registered trademark of Alters Technology Co., Ltd.

Sensor holder / hook structure

The sensor can be attached to the meter body.
It is easy to carry and easy to handle.

Meter stand function

Equipped with a foldable stand on the back. Even if it is installed on the ground, the screen is easy to see and it is easy to operate.

Push-pull lock type connector

Detachable with one touch. The sensor can be replaced smoothly.

Waterproof / dustproof / shockproof design

Reliable waterproof function: IP67 equivalent (does not break down even if immersed in water at a depth of 1 m for about 30 minutes)

The double molding structure, which is made by coating polycarbonate with a soft resin, enables a body that is strong against impact and easy to grip.

Main unit data recording: Up to 10,000

Equipped with MicroUSB port

Can be connected to a PC using a MicroUSB cable (commercially available).
In addition, a USB-connectable battery (commercially available) allows measurement without worrying about the battery capacity.

Wireless transmission of saved measurement data

Seamless fieldwork from measurement to analysis.
Switch to wireless communication mode → Start Web browser → Select data → Browse by CSV file
* This product is equipped with an SD card with wireless LAN function.
* Wired communication is also possible with a commercially available MicroUSB cable.

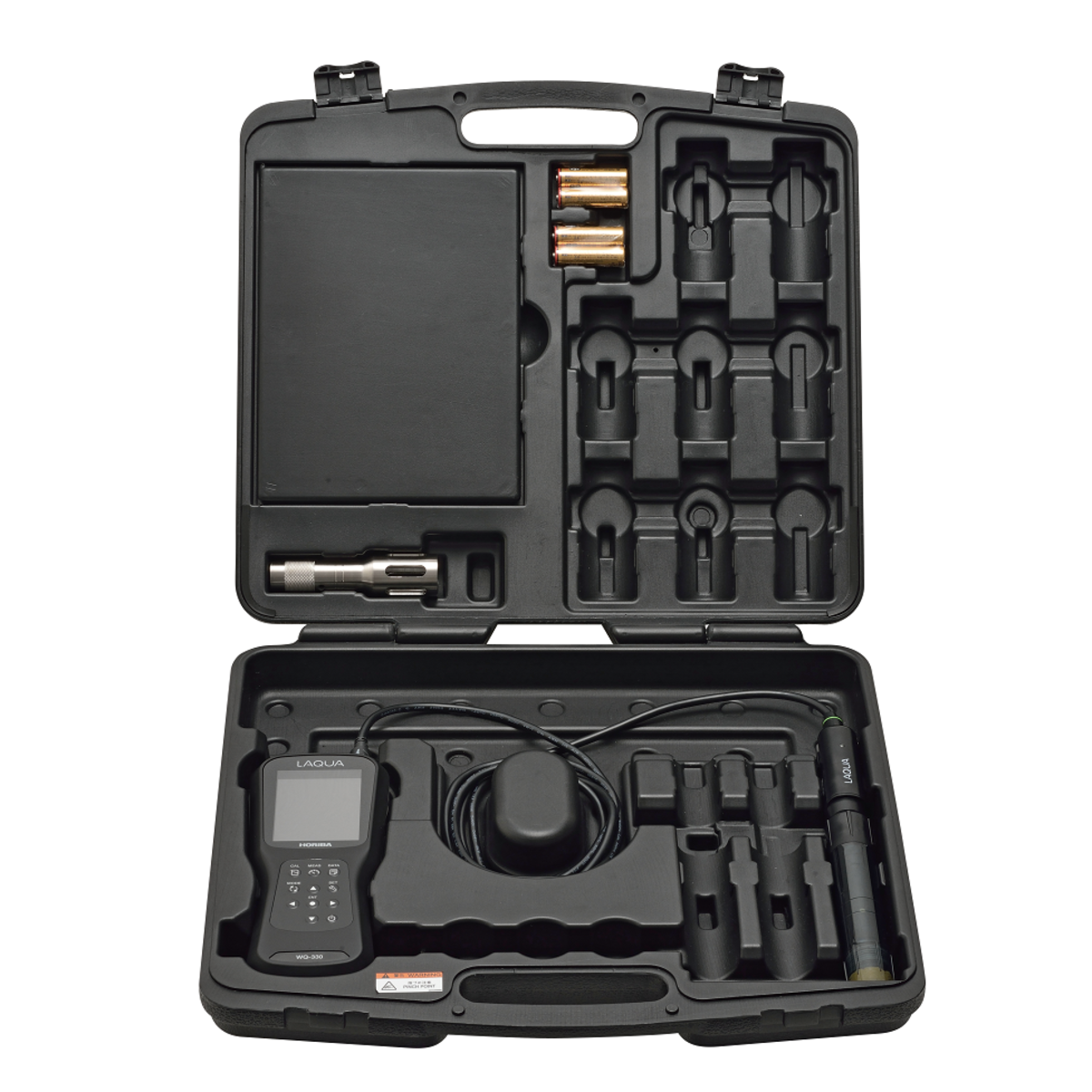

set content:
● Carrying case
● Meter (1ch model): WQ-310J
● Optical DO sensor type: 300-D-2
● Atmospheric calibration bottle
● Protective cap
● Instruction manual
● Battery (AA type)


Measurement item DO (mg / L) / DO (%) / O 2 / Temperature
DO range of measurement [Mg / L] 0.00-20.00mg / L
[%] 0.0-200.0%
resolution 0.01mg / L, 0.1%
accuracy※ [mg / L] ± 0.2mg / L [%] ± 2%
Salinity correction Automatic correction from salinity measured by electrical conductivity sensor
or manual: 0.0-40.0 PPT
Atmospheric pressure correction Automatic correction from the barometric pressure sensor installed in the meter
or manual: 10.0-199.9kPa
Calibration score 2 points
2 range of measurement 0.0-50.0%
resolution 0.1%
accuracy ± 0.5%
temperature Concentration measurement range ℃: -30.0 to +130.0
* DO sensor operating temperature range: 0 to 50 ℃
resolution 0.1 ℃
Accuracy (instrument reproducibility) ℃: ± 0.5
Calibration score 1point
Sensor cable length 2m
Number of channels 1
memory 10,000 points
Stable judgment function Autostable / Autohold / Instantaneous value measurement
Meter output Micro USB (B): for PC connection, USB power supply
phono: for printer connection
Meter input Micro USB (B): for PC connection, USB power supply
push-pull connector: for sensor connection
screen Color graphic TFT-LCD (3.5 inches)
Waterproof / dustproof grade IP67 equivalent
power supply 4 AA batteries
Battery life 100 hours or more (screen brightness: 3, power saving mode: ON, sensor not connected, alkaline battery used)
Meter size 215 (L) x 90 (W) x 34 (H) mm
Meter weight Approximately 400g (with batteries) / Approximately 320g (without batteries)
