Horiba รุ่น WQ-310C-S เครื่องวัดค่าความนำไฟฟ้าในน้ำ,Electric Conductivity Meter Field Type Multi-Digital Water Quality Meter Set LAQUA

Horiba รุ่น WQ-310C-S เครื่องวัดค่าความนำไฟฟ้าในน้ำ,Electric Conductivity Meter Field Type Multi-Digital Water Quality Meter Set LAQUA
รหัสสินค้า SKU-13287
หมวดหมู่ เครื่องวัดคุณภาพน้ำแบบพกพา(Pocket Water Quality Meters),Horiba
ราคาปกติ 140,000.00 บาท
ลดเหลือ 0.00 บาท
สถานะสินค้า Pre-Order
ลงสินค้า 13 ก.ค. 2565
อัพเดทล่าสุด 12 ส.ค. 2567
คงเหลือ 1 ชิ้น
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

Designed for ease of use.

  • Sensor holder / hook structure The
    sensor is attached to the meter body. Collectively combine multiple sensors.
    It is easy to carry and can be handled well even with 3ch.
  • Color graphic Blanview ® LCD is
    used to efficiently collect outside light inside the LCD. We have realized a screen that is easy to see not only in the dark but also in direct sunlight.
    * Blanview is a registered trademark of Alters Technology Co., Ltd.
  • Push-pull lock type connector
    Detachable with one touch. The sensor can be replaced smoothly.
  • Waterproof / dustproof / shockproof design
    Reliable waterproof function * 1 . In addition, the double molding * 2 structure enables a body that is strong against impact and easy to grip.
    * 1: Equivalent to IP67 (does not break down even if immersed in water at a depth of 1 m for about 30 minutes)
    * 2: Polycarbonate coated with soft resin

  • Can be connected to a PC using a MicroUSB cable (commercially available) equipped with a MicroUSB port . In addition, a USB-connectable battery (commercially available) allows measurement without worrying about the battery capacity.
  • Meter stand function
    A foldable stand is mounted on the back. Even if it is installed on the ground, the screen is easy to see and it is easy to operate.

Wireless transmission of measurement data *

  • Seamless fieldwork from measurement to analysis.
    Switch to wireless communication mode → Start Web browser → Select data → Browse by CSV file
    * This product is equipped with an SD card with wireless LAN function.
    * Wired communication is also possible with a commercially available MicroUSB cable.

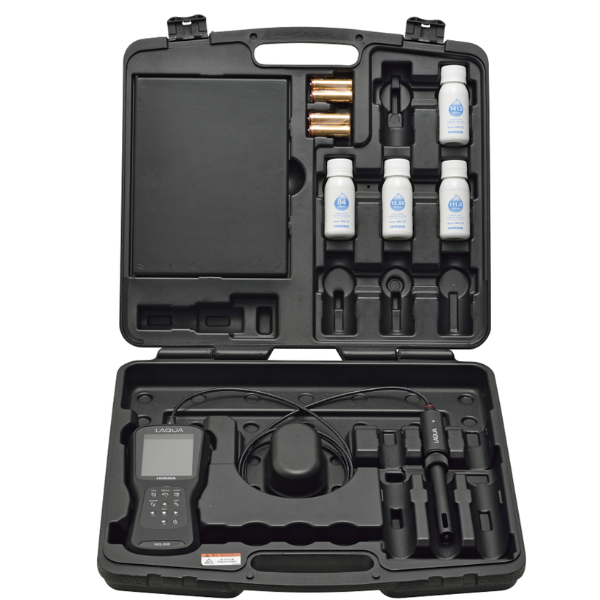

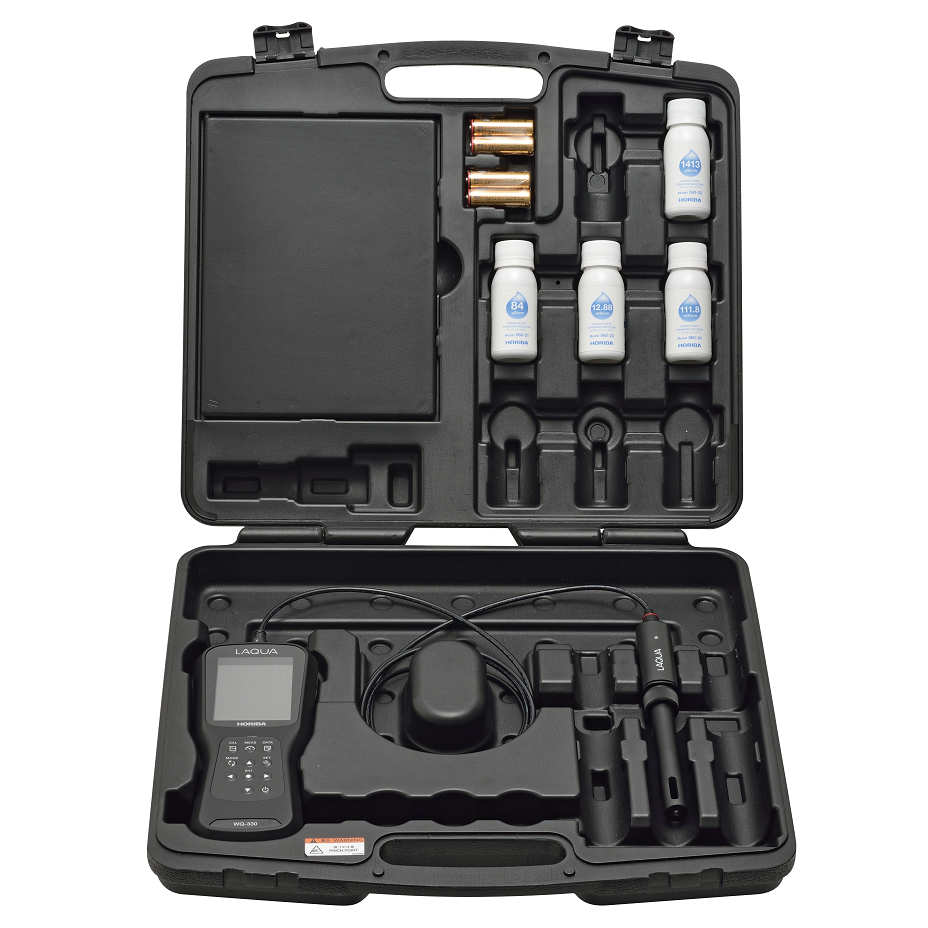

WQ-310C-S set



set content:

  • Carrying case: CC-WQ-300
  • Meter: WQ-310J
  • COND sensor head: 300-C-2
  • COND cartridge: 300-4C-C
  • COND standard solution (60 ml): 560-C
    84 μ, 1413 μ, 12.88 m, 111.8 m (S / cm)
  • instruction manual
  • Batteries (AA)

Measurement item

Electrical conductivity (conductivity) / salinity / TDS (total amount of dissolved solids) / resistivity / temperature

Conductivity

range of measurement

[ΜS / cm]
0.000 to 0.199
0.200 to 1.999
2.00 to 19.99
20.0 to 199.9
200 to 1999

[MS / cm]
2.00 to 19.99
20.0 to 199.9
200 to 2000
[μS / m]
0.0 to 19.9
20.0 to 199.9
200 to 1999

[MS / m]
2.00 to 19.99
20.0 to 199.9
200 to 1999
[S / m]
2.00 to 19.99
20.0 to 200.0

resolution

4 significant digits (automatic range change)

Accuracy (instrument reproducibility)

± 0.5% of each range full scale
200m S / cm (20.0 S / m) or more: ± 1.5%

Reference temperature

15-30 ℃

Temperature coefficient

0.00-10.00% / ℃

Calibration score

4 points (automatic) / 5 points (manual)

unit

S / cm, S / m

salt

Concentration measurement range

0.00-80.00PPT 0.000% -8.000%

resolution

0.01PPT, 0.001%

Accuracy (instrument reproducibility)

The larger of ± 0.5% or 0.01 PPT of the reading

Salinity mode

NaCl, seawater (UNESCO1978)

Calibration score

1point

TDS
(total amount of dissolved solids)

range of measurement

0.01mg / L-200,000mg / L

resolution

4 significant digits, minimum resolution display 0.01

Accuracy (instrument reproducibility)

The larger of ± 0.5% or 0.1 mg / L of the reading

TDS mode

Factor (0.40-1.00), EN27888, 442, NaCl

Resistivity

range of measurement

[Ω ・ cm]
0.1 ~ 199.9
200 ~ 1999
[kΩ ・ cm]
2.00 ~ 19.99
20.0 ~ 199.9
200 ~ 1999

[MΩ ・ cm]
2.00 to 19.99
20.0 to 200.0
[Ω ・ m]
0.001 to 1.999
2.00 to 19.99
20.0 to 199.9
200 to 1999

[KΩ ・ m]
2.00 to 19.99
20.0 to 199.9
200 to 2000

resolution

4 significant digits (automatic range change)

Accuracy (instrument reproducibility)

± 0.5% of each range full scale
20.0 MΩ ・ cm (200 kΩ ・ m) or more: ± 1.5% of full scale

temperature

Temperature measurement range

℃: -30.0 to +130.0
* Electrical conductivity sensor head operating temperature range: 0 to 60 ℃

resolution

0.1 ℃

Accuracy (instrument reproducibility)

℃: ± 0.5

Calibration score

1point

Sensor cable length

2m

Number of channels

1

memory

10,000 points

Stable judgment function

Autostable / Autohold / Instantaneous value measurement

Meter output

Micro USB (B): for PC connection, USB power supply
phono: for printer connection

Meter input

Micro USB (B): for PC connection, USB power supply
push-pull connector: for sensor connection

screen

Color graphic TFT-LCD (3.5 inches)

Waterproof / dustproof grade

IP67 equivalent

power supply

4 AA batteries

Battery life

100 hours or more (screen brightness: 3, power saving mode: ON, sensor not connected, alkaline battery used)

Meter size

215 (L) x 90 (W) x 34 (H) mm

Meter weight

Approximately 400g (with batteries) / Approximately 320g (without batteries)
