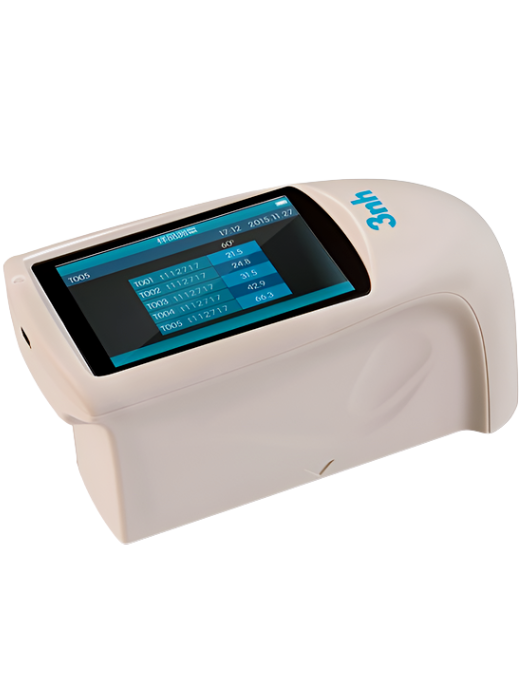

3NH HG268 Tri Gloss Meter 20 60 85 degree with GQC6 Software

3NH HG268 Tri Gloss Meter 20 60 85 degree with GQC6 Software
รหัสสินค้า SKU-12650
หมวดหมู่ •เครื่องวัดความเงาของสี(Gloss meter)
ราคาปกติ 45,000.00 บาท
ลดเหลือ 0.00 บาท
สถานะสินค้า Pre-Order
สภาพ สินค้าใหม่
ลงสินค้า 10 มิ.ย. 2565
อัพเดทล่าสุด 10 มิ.ย. 2565
คงเหลือ 1 ชิ้น
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay


HG268 Tri Gloss Meter 20 60 85 degree with GQC6 Software

HG268 tri gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457. HG268 conforms to JJG696 first class glossmeter working requirement, corresponding with CIE 1931(2°) under CIE C light source.



HG268 tri gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.





Features:



1.       20, 60 and 85° in one: from high to low gloss - have the specified angle on hand

2.       Concise appearance, feel good

3.       Display 5 sets of measurement data, good for comparison

4.       Built-in lithium ion rechargeable battery

5.       Basic model measurement can meet basic glossiness testing requirements

6.       Connect to PC, more extend functions

7.       One button for all angles measurement at the same location

8.       Comply with international standards

9.       Stable performance, easy to read data.




HG268 Tri-angle Gloss Meter




Model:

HG268 tri gloss meter



Measuring Angle

20°/60°/85°
Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457



Measuring Area (mm)

20°: 10x10    60°: 9x15    85°: 5x36



Measuring Range

20°:0~1000GU   60°:0~1000GU   85°:0~160GU



Division Value

0.1GU



Measurement Range

Repeatability

Reproducibility

0-10GU            10-100GU      100-1000GU
± 0.1GU           ± 0.2GU           ± 0.2%GU
± 0.2GU           ± 0.5GU           ± 0.5%GU



Measurement Standard

Conform with JJG696 first class glossmeter working requirement



Chromaticity Corresponding

Corresponding with CIE 1931(2°)  under CIE C light source



Errors

±1.5 , ± 1.5%



Measuring Time

0.1s



Dimension

L*W*H : 160mm*75mm*90mm



Weight

350g



Language

Chinese/English



Battery

3200mAh Li-ion Battery ,>10000 times(within 8 hours)



Display

TFT 3.5 inch



Interface

USB/RS-232



Storage

Basic mode: 1000



Software

GQC6 Quality Control Software with QC report printing functions and more extended functions.



Operation Temperature

 0~40℃(32~104°F)



Storage Temperature

 -20~50℃(-4~122°F)



Humidity

<85% relative humidity,  no condensation



Standard Accessories

Power Adapter, USB cable, User Manual, GQC6 software CD (except HG60S), Calibration Plate



Optional Accessories

Miniature Printer



Note

The specifications are subject to change without notice.
