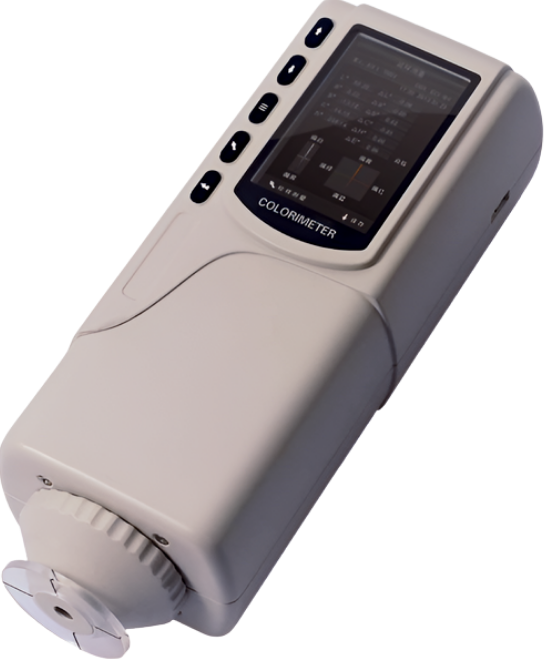

3NH NR110 Precision Colorimeter

Since 1998, from import to domestic, 3nh NR110 precision colorimeter is an iconic milestone in color test industry.

NR110 precision colorimeter features with 8/d structure that is very precise. This cheap colorimeter is spoken highly of by many customers, and the small size 4mm measurement aperture makes it popular used in many applications, such as fabrics, paper, plastic parts, building materials.



NR110 Precison Colorimeter Product Advantages

 a.  Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.



b.  Double Locating: Illuminating locating and precise cross locating.

c.  Switchable Double Measurement End Face: Large stable end face and small concave-convex end face.

d.  New Integrating Sphere Optical Path Design: Eliminating the stray light of main optical path and auxiliary optical path. Possessing the highest measurement stability and   precision.

e.  4mm Measuring Aperture.

f.   Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.

g.  Configure CQCS3 software. Connect PC computer to realize more functions.

h.  Having got SCM Metrological Certification, CE Certification, and ISO9001 Quality Management System Certification.

i.   Hand-head structure: small and convenient; make the measurement easier.

j.   Exquisite appearance: adopts traditional and fashionable aesthetic designs.

k.  Spending huge sums on high-end mold. Product consistency approaches 100%.

l.   High cost performance: large output, good quality, cheap products.






Illuminating/Viewing Geometry

8/d

Measuring Aperture

Φ4mm

Detector

Silicon photoelectric diode

Locating

Illuminating Locating/Cross Locating

Measurement End Face

Large stable end-face and small concave-convex end-face

Color Space

CIEL*a*b*C*h* CIEL*a*b*

CIEXYZ

Color Difference Formula

△E*ab △L*a*b* △E*C*h*

Light Source

D65

Light Source Device

LED blue light excitation

Errors Between Each Equipment

≤0.80ΔE*ab

Storage

100pcs standards 20000pcs samples

Repeatability

Standard deviation within ΔE*ab 0.08

Average of 30 measurements of standard white plate

Language

English/Chinese

Weight

450g

Dimension

205×67×80 mm

Power source

Rechargeable lithium-ion battery 3.7V@3200mAh

Lamp Life

5 years, more than 1.6 million measurements

Charging Time

8 hours--100% electricity

PC Software

CQCS3 Software

Printer (optional)

Miniature thermal printer
