● Adopting the linear voltage regulator method with excellent noise reduction characteristics
● Simultaneous display of 4-digit voltage and current values
● Storage function on the panel
● With remote voltage sensing and compensation function
● With overvoltage protection and overcurrent Protection · Overheating protection function
● Easy access using embedded WEB server
Specifications;
|

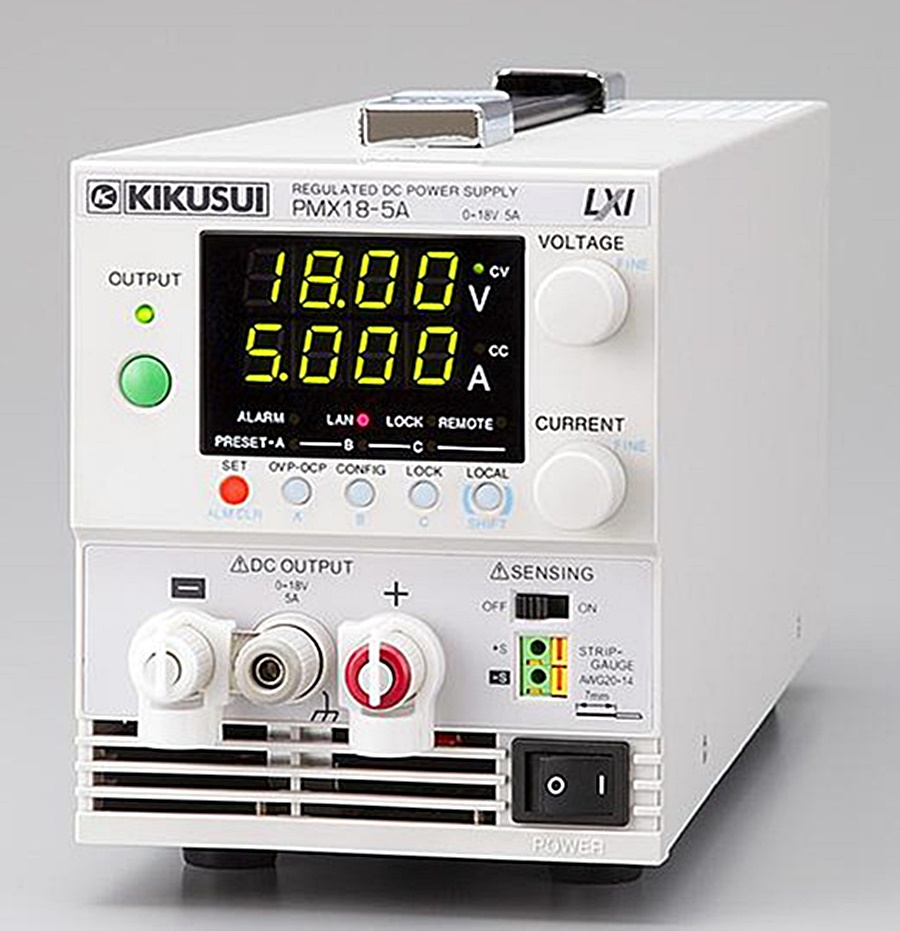

| model |
PMX18-5A |
PMX35-3A |
| AC input |
| Nominal Input Rating |
100Vac*1, 50~60Hz, single phase |
| Input voltage range |
±10% |
| Input frequency range |
47Hz~63Hz |
| Current (Max) |
3.1A |
| Inrush current (Max) |
Below 60Amax |
| output |
| rated |
The output voltage |
18.00V |
35.00V |
| Output current |
5.000A |
3.000A |
| Output Power |
90W |
105W |
| Voltage |
Settable range |
0V~18.90V |
0V~36.75V |
| set resolution |
0.05V |
0.1V |
| Setting accuracy |
±(0.2% of set+0.1 of fs) |
| Power Fluctuation |
±1mV |
±3mV |
| load fluctuation |
±5mV |
±4mV |
| Transition response |
50us |
50us |
| Ripple noise (rms) |
0.5mV |
0.5mV |
| command delay time |
80ms |
| Rise Time |
at rated load |
Within 150ms |
| when no load |
Within 150ms |
| fall time |
at rated load |
Within 300ms |
| when no load |
Within 300ms |
| Remote sensing maximum compensation voltage (one-way) |
0.6V |
| Temperature coefficient (TYP value) |
100ppm/℃ |
| current |
Settable range |
0A~5.25A |
0A~3.15A |
| set resolution |
0.02A |
0.01A |
| Setting accuracy |
±(0.3% of set+0.1% of fs) |
| Power Fluctuation |
±10mA |
±5mA |
| load fluctuation |
±5mA |
±5mA |
| Ripple noise (rms) |
2mA |
1mA |
| Temperature coefficient (TYP value) |
200ppm/℃ |
| interface |
| Protocol software |
IEEE Std 488.2-1992 |
| command language |
SCPI Specification 1999.0 |
| RS232C, USB, LAN |
USB TMC-USB488\LXI 1.4 Class C |
| generally |
| weight |
about 6kg |
about 6kg |
| Size (maximum size) |
107W x 124(150)H x 315(350)Dmm |
| environmental conditions |
working environment |
Indoor use, overvoltage type II |
| Operating temperature |
0℃~+40℃ |
| Working humidity |
20%rh~85%rh (no condensation) |
| storage temperature |
-25℃~+70℃ |
| save humidity |
Below 90%rh (no condensation) |
| high |
Below 2000m |
| cooling method |
Forced air cooling with fans |
| Ground Polarity |
Can be negatively grounded or positive grounded |
| voltage to ground |
±250Vmax |
| Withstand voltage |
Between input and FG |
1500Vac, no abnormality after applying voltage for 1 minute |
| input-output |
2000Vac, no abnormality after applying voltage for 1 minute |
| Between output and FG |
500Vac, no abnormality after applying voltage for 1 minute |
| Insulation resistance |
Between input and FG |
500Vdc, 30MΩ or more |
| input-output |
500Vdc, 30MΩ or more |
| Between output and FG |
500Vdc, 30MΩ or more |
| safety |
Complies with the requirements of the following directives and standards Low Voltage Directive 2006/95/EC EN61010-1 (Class I, Polltuion degree 2) |
| Electromagnetic Compatibility (EMC) |
Compliance with the requirements of the following directives and standards EMC Directive 2004/108/EC EN61326-1 (Class A) EN55011 (Class A, Group 1) EN61000-3-2 EN61000-3-3 Applicable Articles Used when connecting to this product Cables and wires are below 3m |
| accessories |
Power Cord: 1, Packing List: 1, Quick Reference (1 in Japanese, 1 in English), Safety Manual: 1, CD-ROM: 1 |
|
