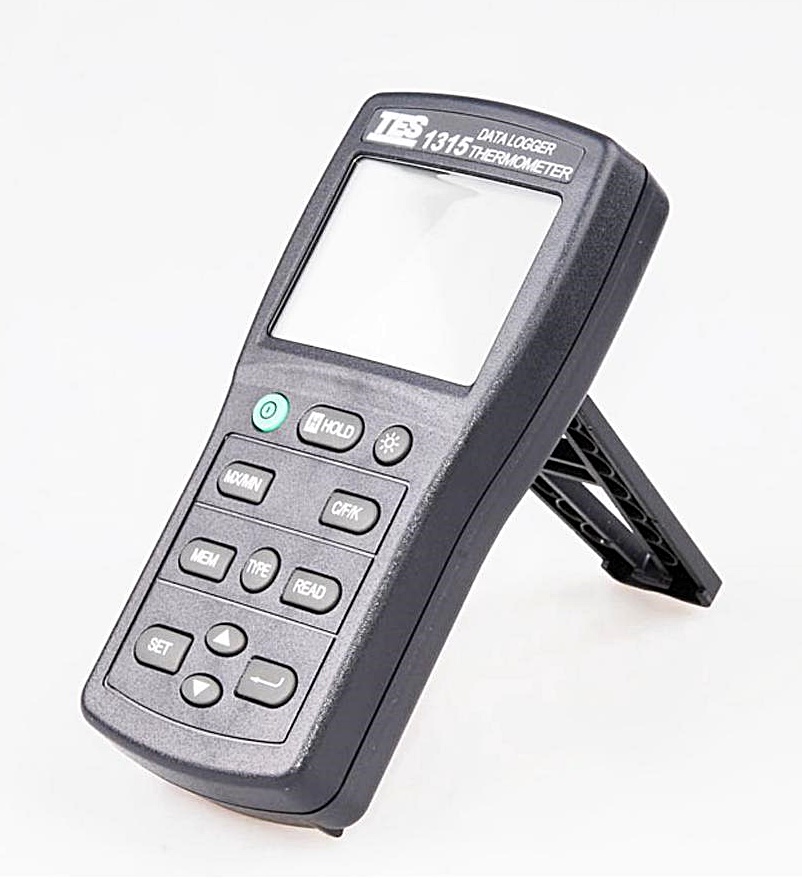

TES รุ่นTES-1315เครื่องวัดและบันทึกข้อมูลDigital Thermometer Datalog ger,with thermocouple K,J,E,T,R,S,N type.Meas.range:-150～1370°C

Measuring Range

K - Type : -200℃ to +1372℃ (-328℉ to +2501℉)
J - Type : -210℃ to +1200℃ (-346℉ to +2192℉)
E - Type : -150℃ to +1000℃ (-238℉ to +1832℉)
T - Type : -250℃ to +400℃ (-418℉ to +752℉)
R and S - Type : 0℃ to +1767℃ (+32℉ to +3212℉)
N - Type : -200℃ to +1300℃ (-328℉ to +2372℉)

Display Resolution

0.1℃ / ℉ / K < 2000°
1.0℃ / ℉ / K ≦2000°

Measurement Accuracy
(According to ITS-90)

K, J, E, T, and N-Type : ± [0.05% of reading +0.3℃ (0.6℉)]
[below -100℃ (-148℉) : add 0.15 % of reading for K-, J-, E-, and N-Type ; and 0.45% of reading for T-Type]
R-and S-Type : ± [0.05% of reading + 0.4℃ (0.8℉)]

Temperature Coefficient

0.01% of reading + 0.03℃ per ℃ (0.05 ℉ per ℉) outside the specified +18℃ to 28℃ (+64℉ to +82℉) range
[LCD ranging : below -100℃ (-148℉) : add 0.04% of reading for K-, J-, E, and N- Type; and 0.08% of reading for T- Type]

Maximum Differential
Common Mode Voltage

1V (Maximum voltage difference between T1 and T2)

Input Protection

30V maximum input voltage on any
Combination of input Connector

Sampling Rate

1 time/sec

Operating/Storage Conditions

0℃ ~ 40℃ < 80% RH ,
-10℃ ~ 60℃ < 70%RH

Power Source

6 pcs size AAA Battery

Battery Life

Approx. 300hours. (not including backlight and beeper)

Size

152(L) ×72(W) ×37(H)mm

Weight

Approx. 300g

Accessories

1. Instruction manual, Battery
2. Software for WINDOWS, RS-232 Cable, 9 pin to 25 pin Gender changer.
