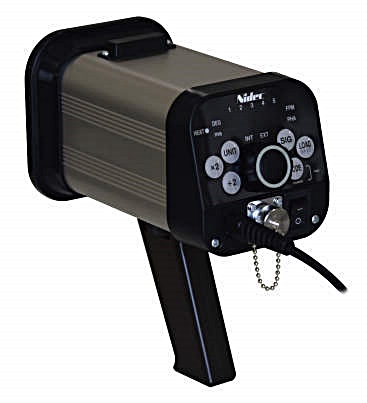

NidecSHIMPO รุ่นDT-3011Nเครื่องวัดความเร็วรอบแบบดิจิตอลDigital stroboscope with built-in rechargeable battery,AC100-115V,Meas.range:30～35000fpm

Internal oscillation emission; number of issues

30-35000fpm

Internal oscillation emission: Resolution

30-5000.0: 0.1fpm
-8000.0: 0.2fpm
-10000.0: 0.5fpm
-35000.0: 1.0fpm

Internal oscillation emission: Phase change function

Yes (PHA mode)

Internal oscillation emission: Jump function

The emission frequency can be changed to 2 times or 1/2 times the current frequency with the touch of a button.

Internal oscillation emission: Limit function

Yes (upper limit of the number of light emission can be set)

Internal oscillation emission: Integer function

Yes (with or without decimal point can be set)

Internal oscillation emission: Delay emission

Range: 30 to 35000 fpm
Angle setting: 1 ° unit from 0 to 359 °
Time setting: 0.01 ms unit from 0.00 to 999.99 ms
1000.0 ms unit from 1000.0 to 194.4 ms

External synchronous emission: Input signal

H level: 2.5-12V
L level: 0-0.5V
Pulse width: 50μs or more
* Input impedance 10kΩ or more

External synchronous emission: Speed measurement function

27-35020fpm

External synchronous flash: Delayed flash

Range: 27 to 35020fpm
Angle setting: 0 to 359 ° in 1 ° unit
Time setting: 0.00 to 999.99ms in 0.01ms unit
100.0 to 2216.0ms in 0.1ms unit

display

6 digit red 7 segment LED

Setter

Rotary encoder, tact switch

Lamp; flash light source

Xenon lamp

Lamp; lamp input

15W

Luminous timer

Continuous lighting or light emission stop after set time (1 to 120 min)

Memory function

Save settings when the power is off

Power supply for sensor

DC12V 40mA

External pulse output

12V voltage signal Pulse width approx. 400μs

Power supply

[DT-3011N]
Power cable approx. 2.4m AC100-115V 50 / 60Hz
[DT-3015N]
Dedicated AC adapter (AC100-240V 50 / 60Hz)
Charging
time: Approx. 2hr Discharging time: Approx. 1.25hr

Operating ambient temperature

0-40 ℃

accessories

[DT-3011N]
Grip
external signal input / output connector (
8pin ) [DT-3015N]
Dedicated AC adapter
External signal input / output connector (8pin)
