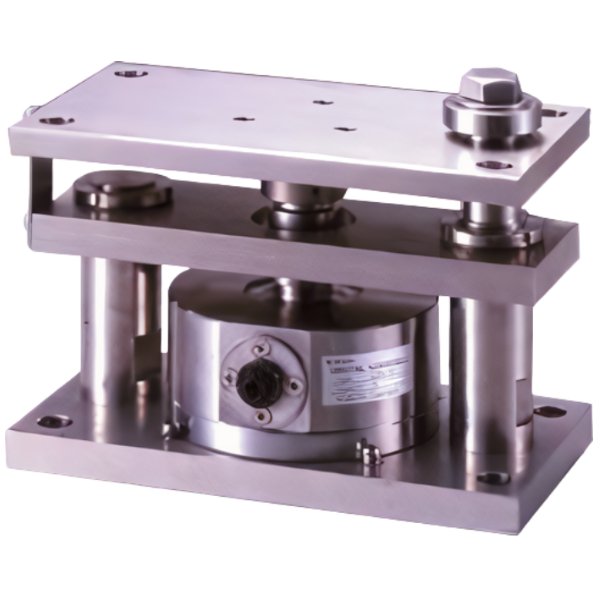

LU-BD (compressed) |
- Application: Hopper, Tank, Platform Scale
- Equipped with escape prevention device (left, right, rising)
- IP67 dustproof, waterproof structure, All Stainless Steel
- Capacity: 200, 300, 500kg / 1, 2, 3, 5, 10 ton
|
|
|

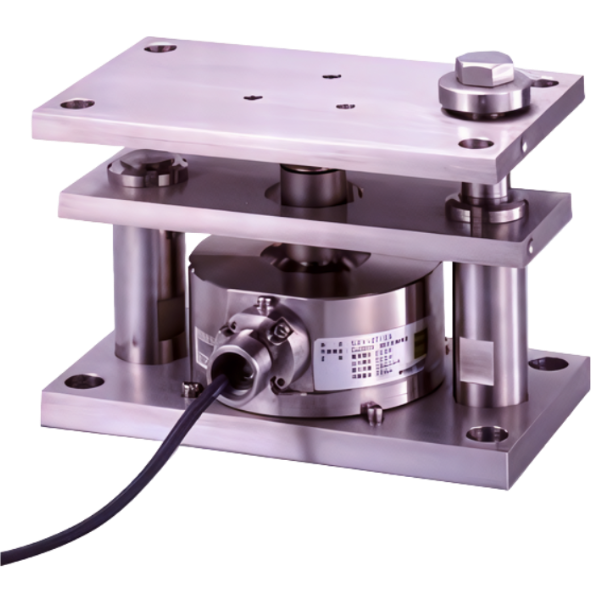

LU-BD-EX
(compressed, explosion-proof) |
- Application: Flammable Hopper Scale, Tank Scale, Platform Scale
- Equipped with escape prevention device (left, right, upward)
- IP67 dustproof, waterproof structure, All Stainless Steel
- Explosion proof grade Ex d IIB T4
- Capacity: 200, 300, 500kg / 1, 2, 3, 5 , 10 tons
|
|
|

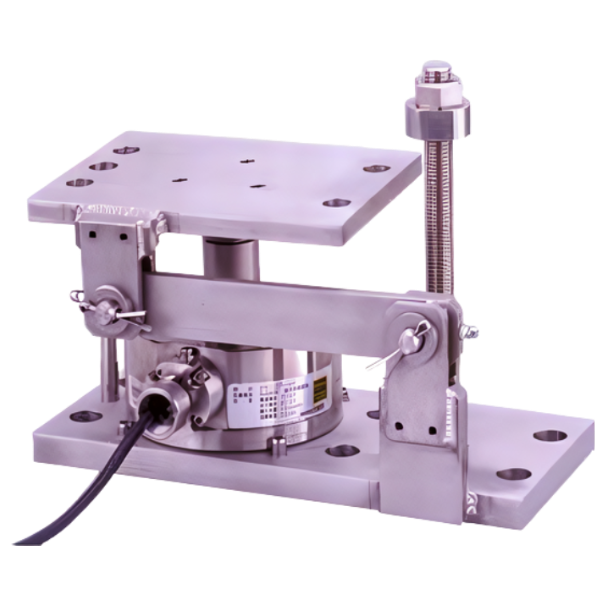

LU-FD
(compression, shaking fixed type) |
- Application: Hopper Scale, Tank Scale,
- Platform Scale
- Plate-type check rod that does not shake sideways, IP67 dustproof, waterproof structure
with escape prevention (elevation) device , All
- Stainless Steel Capacity: 200, 300, 500kg / 1, 2, 3, 5, 10 tons
|
|
|

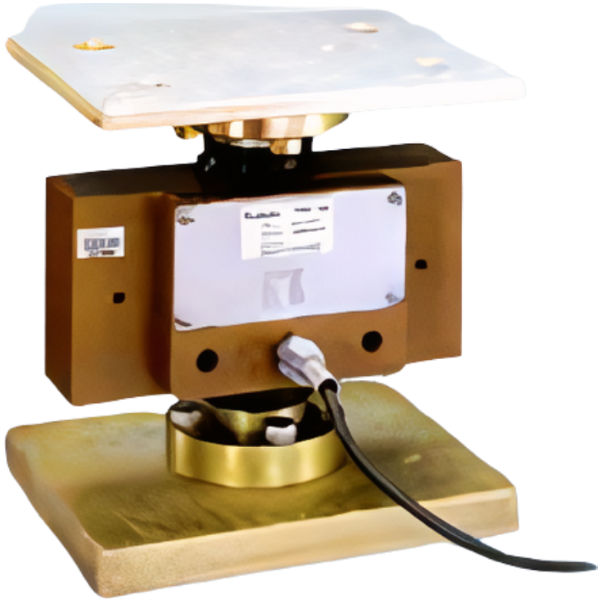

LU-AD (compressed) |
- Application: Truck Scale, Hopper Scale, Silo Scale
- IP67 dustproof, waterproof structure, Stainless Steel,
Zinc Plate
- Capacity: 10, 25, 40, 100 ton
|
|
|

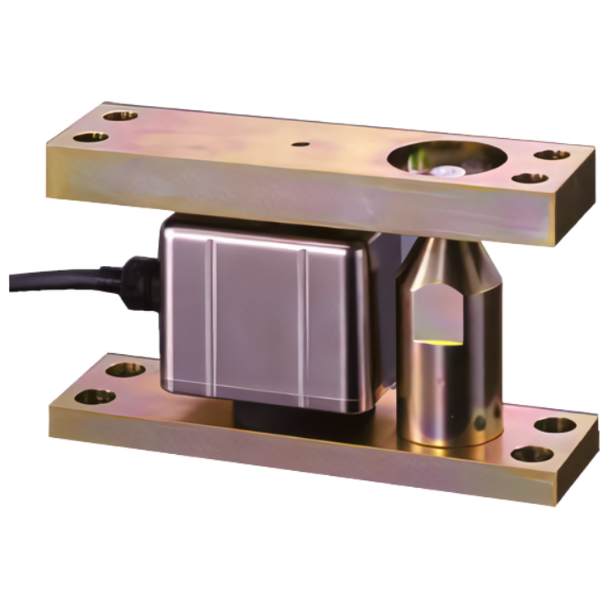

LE-VD
(compressed type, for level measurement) |
- Optimal for weight type level measurement, hopper, tank scale,
anti-vibration, anti-floating device attached, IP65 dust-proof and drip-proof structure, Stainless Steel,Zinc Plate
- Capacity: 500kg / 1, 2, 5 ton
|
|
|

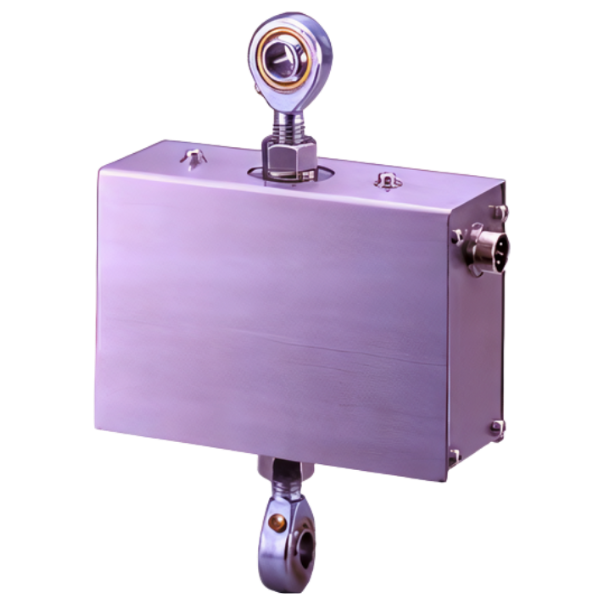

TB-XD (tensile type)
|
- Application: Hopper Scale upper and lower rod-end attached, output calibration completed
- Capacity: 100, 200, 300, 500 kg / 1, 2, 4 ton
|
|
|

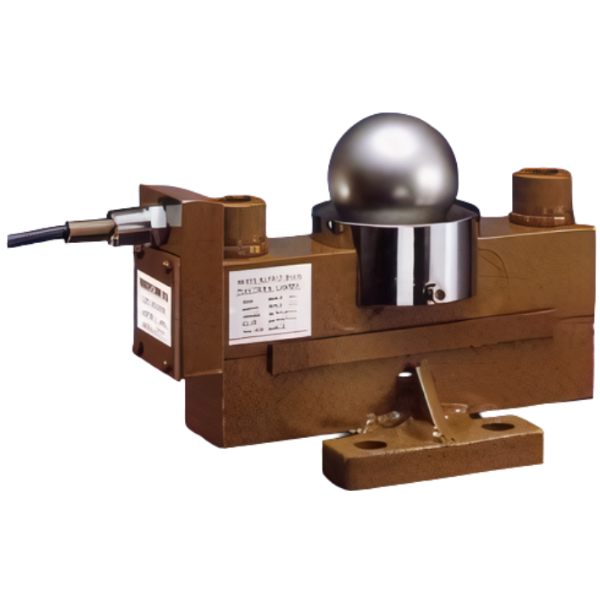

LU-C, LU-D
(Shear Beam type) |
- Application: Truck Scale, Tank Scale Dust-proof, waterproof structure
- Material: Special steel
- Capacity: 10, 20, 25, 30, 40, 50 tons
|
|
|

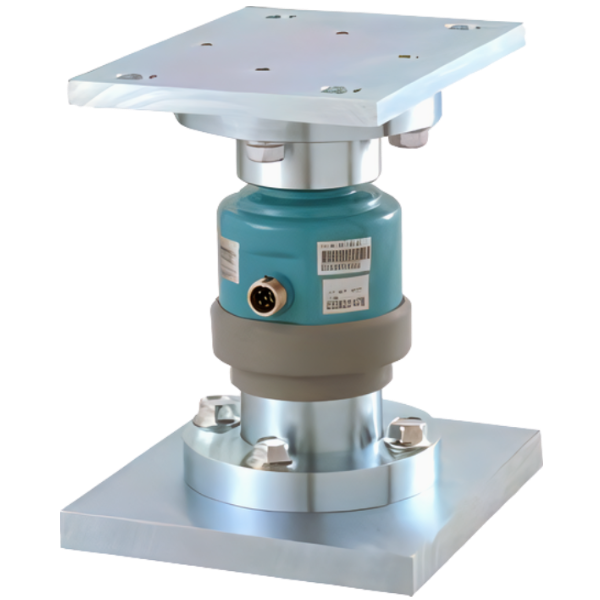

LU-E (compressed) |
- Application:Truck Scale Durability, excellent reliability, dustproof, waterproof structure
- Material: Special steel
- Capacity: 25 ton
|
|
|
L-BX
(Cantilever Beam type)
|
- Application: Various scale
sealed structure
- Material: Aluminum alloy
- Capacity: 10, 20, 30, 50, 100, 150, 200, 300, 600 kg,1, 1.5, 2, 3, 4 ton
|
|
|
L-BP
(Cantilever Beam type) |
- Application: Excellent durability on various scales , fully sealed structure
- Material: Special steel
- Capacity: 10, 20, 30, 50, 100, 200, 300, 500 kg,
1, 2 ton
|
|
|
L-BP-EP
(Explosion proof beam type) |
- Application: Explosion-proof scale
Pressure-resistant explosion-proof structural
- material: Special steel
- Capacity: 100, 200, 300, 500kg, 1, 2, 3 ton
|
|
|
B-XL (One point type) |
- Application:Platform,Scale,Special Coating,Dust-proof, waterproof structure, 4-ear deviation response structure
- Material: Aluminum alloy
- Capacity: 120, 300 kg
|
 |
T-BX (Tension type) |
- Application: Hopper Scale
upper and lower rod-end attachment
- material: Aluminum alloy (* special steel for 2 and 4 tons)
- Capacity: 100, 300, 500 kg, 1, 2, 4 tons
|
|
