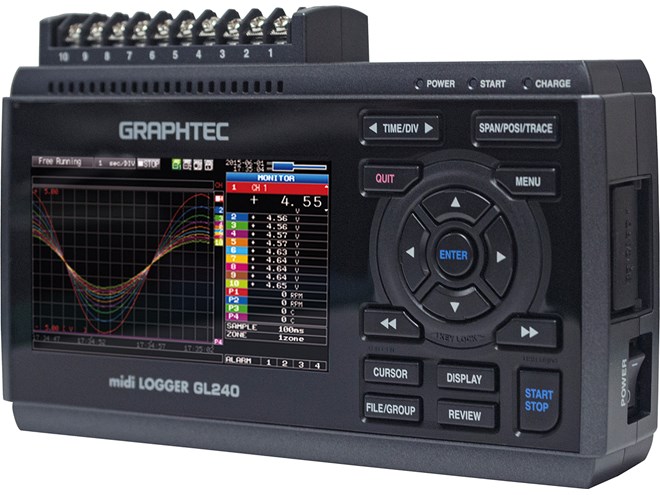

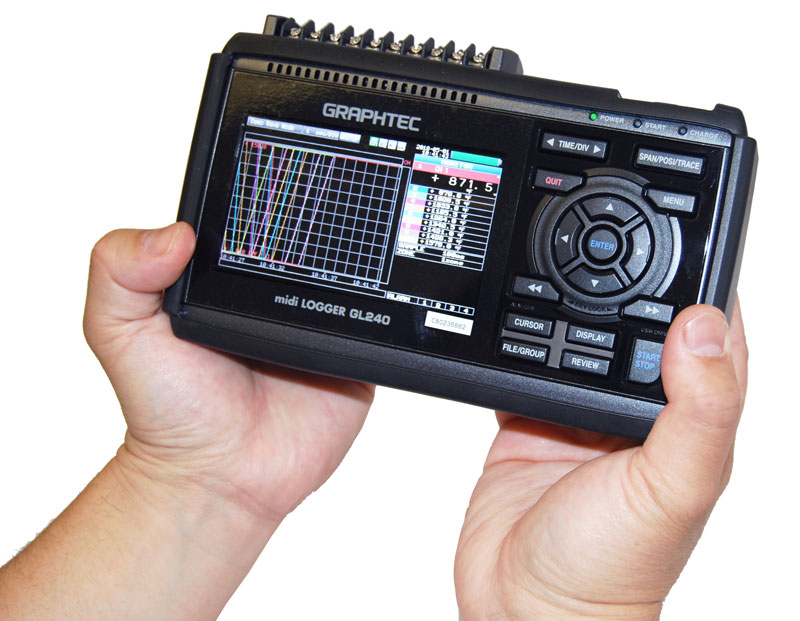

Graphtec รหัส GL240 เครื่องบันทึกข้อมูลGraphtec GL240 data logger midi
| รหัสสินค้า | SKU-07187 |
| หมวดหมู่ | เครื่องวัดอุณหภูมิและโพรบ(Thermometer l Thermocouple) |
| ราคาปกติ | |
| ลดเหลือ | 0.00 บาท |
| สถานะสินค้า | Pre-Order |
| ลงสินค้า | 7 มิ.ย. 2564 |
| อัพเดทล่าสุด | 16 ก.ย. 2568 |
| คงเหลือ | 0 ชิ้น |
เลิกจำหน่าย
รายละเอียดสินค้า
Insulated multi-channel handy logger midi LOGGER GL240
■ Wireless LAN support for wireless & remote monitoring
■ All channel isolated multifunction input support
■ Sampling speed up to 10ms
GL240 body specifications
| item | Contents | |
|---|---|---|
| Number of analog input channels | 10ch | |
| External input / output (* 1) | input | Trigger input (1ch) or external sampling input (1ch), logic input 4ch or pulse input (4ch) Input voltage range: 0 to + 24V (single-wire ground input) Input signal: Non-voltage contact (a contact, b contact, NO, NC), open collector, voltage input Input threshold voltage: Approx. + 2.5V hysteresis: Approx. 0.5V (+ 2.5V to + 3V) |
| output | Alarm output (4ch) Output type: Open collector output (5V pull-up resistor 10kΩ) <Maximum rating of output transistor> ・ Collector-GND voltage: 30V ・ Collector current: 0.5A ・ Collector loss: 0.2W |
|
| Sampling cycle | 10ms ~ 1h (10ms ~ 50ms is voltage only, there is a limit on the number of channels), external (* 1) | |
| TIME / DIV | 1s-24h | |
| Trigger / alarm function | Trigger repeat | Off / On |
| Trigger type | Start: Data recording starts when the trigger is established Stop: Data recording stops when the trigger is established |
|
| Trigger settings | Start: Off / Level / Alarm / External / Time / Day of the week / Fixed time Stop: Off / Level / Alarm / External / Time / Day of the week / Fixed time |
|
| Trigger judgment type | Combination: Analog logic or pulse "AND" or "OR" Analog judgment: Rise (↑) / Fall (↓) / Window IN / Window Out Logic judgment: Pattern Pulse judgment: Rise (↑) / Fall (↓) ) ・ Window IN ・ Window Out |
|
| Pulse input | Rotation speed mode | In the mode rotation speed, which counts the number of pulses for each sampling interval and converts it to the rotation speed for 1 minute by multiplying it, the number of pulses for one rotation is also set. 50/500/5000/50k / 500k / 5M / 50M / 500M RPM / FS |
| Accumulation mode | Mode 50/500/5000/50k / 500k / 5M / 50M / 500MC / FS that integrates and displays the number of pulses for each sample interval from the start of measurement |
|
| Instant mode | Mode to display the number of pulses for each sample interval The integrated value for each sample interval is reset 50/500/5000/50k / 500k / 5M / 50M / 500MC / FS |
|
| Maximum number of pulse inputs | Maximum input frequency: 50kHz Maximum count: 50kC / sampling (16Bit counter) |
|
| Calculation | Calculation type | Four rules and statistics between ch |
| Statistical operation type | Average value, peak value, maximum value, minimum value, effective value | |
| Search function | function | A function to search for necessary points for recorded data |
| Search type | Channel pulse logic level alarm search | |
| PC I / F | USB2.0 (high speed), wireless LAN (when optional is installed) | |
| Storage medium | Built-in memory | GL240: SD1 approx. 4GB (built-in fixed) (* 2) GL240-SD: SD1 slot approx. 4GB (SD memory card included, removable from slot) (* 2) |
| External memory slot | SD2 slot (* 3) SD memory card: SDHC compatible, maximum approx. 32GB memory can be used (* 2) | |
| Memories | Main unit setting conditions, measurement data, screen copy | |
| Data storage function | Recording destination | Main memory (SD1) or SD memory card (SD2) |
| Recorded data | Settings, screen data, measurement data, integration bar graph data (page) | |
| Data backup function | Backup interval (* 4) | Off ・ 1 ・ 2 ・ 6 ・ 12 ・ 24 hours |
| Backup destination (* 4) | SD1 (main unit memory), SD2 (SD memory card), FTP | |
| File format (* 4) | GBD / CSV | |
| Checksum function * Valid only for GBD files |
OFF: No checksum is added to the data. ON: Checksum is added to the data. Checksum can be confirmed when playing back data on the main unit or GL-Connection |
|
| Recording function | OFF / Ring recording / Relay recording / Ring recording: When the number of recording points is exceeded, data is recorded while deleting old data (Recording points: 1000 to 2000000) * When ring recording is ON, the recordable capacity is 1 of the free space. It becomes / 3. -Relay recording: Continuous recording by dividing files in 2GB units without missing data |
|
| Playback data | GBD / CSV format data file (only data recorded with GL240) | |
| Scaling function | ・ 4 points are set for each channel ・ Temperature range scaling function is available |
|
| Recording function | -Checking recorded data (1 screen / 2 screens can be switched) -SD memory card replacement -Save between cursors GBD-Functions both when saving CSV format data files |
|
| display | size | 4.3 inch TFT color liquid crystal display (WQVGA: 480 x 272 dots) |
| Display character | Japanese / English / French / German / Chinese / Korean / Russian / Spanish | |
| Display screen | Waveform + digital screen, full waveform screen, digital + calculation screen, enlarged digital screen, total bar graph screen ・Switch with dedicated key (toggle operation) ・ Enlarged digital screen has CH number and display CH specified ・ By changing TIME / DIV No waveform rewrite |
|
| usage environment | 0-45 ° C, 5-85% RH (0-40 ° C when battery-powered / 15-35 ° C when charging) | |
| Power supply | AC adapter | AC100-240V / 50-60Hz |
| DC input | DC8.5-24V | |
| Battery pack | DC7.2V (2900mAh) (battery pack option) | |
| power consumption | 36VA or less (AC adapter used, LCD ON, battery pack charging, AC100V) | |
| External dimensions [W x D x H] (approx.) | 188 x 117 x 42 mm | |
| Mass [Weight] (approx.) | 500 g (AC adapter, battery not included) | |
| Vibration resistance | Equivalent to Class A Auto Parts | |
(* 1) GL input / output cable (B-513) is required.
(* 2) The maximum recording file is 2GB per file.
(* 3) The SD2 slot cannot be used when the GL wireless LAN unit (B-568) is installed in the SD2 slot.
(* 4) Please use firmware Ver.1.43 or later to save in CSV format.
If the ring recording / external sampling function is On, the backup function cannot be used.
Analog input section specifications
| item | Contents | |||||||
|---|---|---|---|---|---|---|---|---|
| Analog input terminal shape | M3 screw type terminal (square flat washer) | |||||||
| Input method | Scan method with photomos relay, all CH insulation, balanced input | |||||||
| Measurement range | Voltage |
20 ・ 50 ・ 100 ・ 200 ・ 500mV, 1 ・ 2 ・ 5 ・ 10 ・ 20 ・ 50 ・ 100V, 1-5V FS |
||||||
| thermocouple | K, J, E, T, R, S, B, N, W (WRe5-26) | |||||||
| Humidity | 0 to 100% (voltage 0 to 1V scaling conversion) * B-530 (option) used | |||||||
| filter | Off, 2, 5, 10, 20, 40 (moving average is performed as many times as shown on the left) | |||||||
| Measurement accuracy * 2 (23 ° C ± 5 ° C) ・ 30 minutes or more after power is turned on ・ Sampling 1s (10ch) ・ Filter ON (10) ・ GND grounding |
Voltage | ± 0.1% of FS | ||||||
| Temperature thermocouple |
type | Measurement temperature range (TS: measurement temperature) | Measurement accuracy | |||||
| R / S | 0 ℃ ≤ TS ≤ 100 ℃ | ± 5.2 ℃ | ||||||
| 100 ℃ <TS ≦ 300 ℃ | ± 3.0 ℃ | |||||||
| R: 300 ° C <TS ≤ 1600 ° C | ± (0.05% of rdg + 2.0 ℃) | |||||||
| S: 300 ° C <TS ≤ 1760 ° C | ± (0.05% of rdg + 2.0 ℃) | |||||||
| B | 400 ℃ ≤ TS ≤ 600 ℃ | ± 3.5 ℃ | ||||||
| 600 ℃ <TS ≤ 1820 ℃ | ± (0.05% of rdg + 2.0 ℃) | |||||||
| K | -200 ℃ ≤ TS ≤ -100 ℃ | ± (0.05% of rdg + 2.0 ℃) | ||||||
| -100 ℃ <TS ≤ 1370 ℃ | ± (0.05% of rdg + 1.0 ℃) | |||||||
| E | -200 ℃ ≤ TS ≤ -100 ℃ | ± (0.05% of rdg + 2.0 ℃) | ||||||
| -100 ℃ <TS ≤ 800 ℃ | ± (0.05% of rdg + 1.0 ℃) | |||||||
| T | -200 ℃ ≤ TS ≤ -100 ℃ | ± (0.1% of rdg + 1.5 ℃) | ||||||
| -100 ℃ <TS ≤ 400 ℃ | ± (0.1% of rdg + 0.5 ℃) | |||||||
| J | -200 ℃ ≤ TS ≤ -100 ℃ | ± 2.7 ℃ | ||||||
| -100 ℃ <TS ≤ 100 ℃ | ± 1.7 ℃ | |||||||
| 100 ° C <TS ≤ 1100 ° C | ± (0.05% of rdg + 1.0 ℃) | |||||||
| N | -200 ℃ ≤ TS <0 ℃ | ± (0.1% of rdg + 2.0 ℃) | ||||||
| 0 ℃ ≤ TS ≤ 1300 ℃ | ± (0.1% of rdg + 1.0 ℃) | |||||||
| W | 0 ℃ ≤ TS ≤ 2000 ℃ | ± (0.1% of rdg + 1.5 ℃) | ||||||
| Reference contact compensation accuracy ± 0.5 ° C | ||||||||
| A / D converter | method | ⊿∑ method | ||||||
| resolution | 16 Bit (effective resolution: 1 / 40,000 of ± range) | |||||||
| Input resistance | 1 MΩ ± 5% | |||||||
| Allowable signal source resistance | 300Ω or less | |||||||
| Maximum input voltage | Between input terminal +/- | 20mV to 1V range (60Vp-p) 2V to 100V range (110Vp-p) |
||||||
| Between input terminal / input terminal | 60Vp-p | |||||||
| Between input terminal / GND | 60Vp-p | |||||||
| Withstand voltage | Between input terminal / input terminal | 350Vp-p 1 minute | ||||||
| Between input terminal / GND | 350Vp-p 1 minute | |||||||
(* 2) When the thermocouple used is T, K: 0.32Φ, and others: 0.65Φ.
PC application software specifications
| item | Contents |
|---|---|
| Model name | GL100_240_840-APS |
| Supported OS | Windows10 / Windows8.1 / Windows8 / Windows7 / Windows Vista |
| function | Main unit control, real-time data recording, conversion |
| Number of groups | 4 group MAX |
| Number of channels per group | Up to the maximum of connected devices |
| Maximum number of channels | 1000ch MAX |
| Setting range | Amp settings, recording settings, trigger / alarm settings, report settings, etc. |
| Recorded data | Real-time data (CSV, GBD binary) SD memory card data (CSV, GBD binary) |
| Display content | Analog waveform, logic waveform, pulse waveform, digital value |
| Display mode | YT display, digital display, statistics / history display, XY display between cursors (only during playback), total bar graph display |
| File conversion | Between cursors, all data, thinning function |
| Monitoring function | Send an email to a specified address with alarm monitoring |
| Statistics / history display | Displays the maximum, minimum, and average values during measurement |
| Report function | Daily / monthly report files can be created |
GL wireless LAN unit specifications
| item | Contents |
|---|---|
| Model name | B-568 |
| Communication method | Wifi |
| Installation location | Installed in SD CARD2 slot * When a wireless LAN unit is installed, an SD memory card cannot be installed in the SD CARD2 slot. |
| Wireless LAN standard | IEEE802.11b / g / n |
| GL100-WL connection number | One |
| function | Communication distance: Approximately 40m (depending on obstacles and surrounding environmental conditions) Access point: GL100-WL control (up to 1 unit), data recording station: PC control, data transfer to PC. Control and data transfer from smartphones and tablets Common to access point stations WPS: Push button method / PIN method Encryption function: WEP64, WEP128, WPA-PSK / WPA2-PSK (TKIP / AES) |
