Imada รุ่น PSH-50K เครื่องวัดแรงดึงแรงกดแบบหน้าปัด , Mechanical force gauges (Push Pull Gauges) , Capacity: 50kgf ,Resolution: 0.5kgf

Analog dynamometers for direct tensile and compression tests. Precise, simple and robust, they do not require maintenance. They are handheld dynamometers that are reliable over time thanks to the first-choice construction materials: the only ones to be made with a die-cast and painted aluminum casing. They have mechanical operation without batteries and are intrinsically safe in hostile environments. The PSH model is made with an increased casing for high forces. The robust construction of the PSH series dynamometers makes them ideal for industrial environments and allows the calibration to be maintained stable for very long periods. The design is studied for manual use via practical handles or for mounting on stands or translators.

Available in various scales with a capacity from 50kg to 300kg, they are ideal for tensile and direct compression tests. They have a precision of ±0.1% FS and offer continuous reading of the measured values or peak storage via a side button that blocks the indicator on the maximum value reached. The circular ring of the dial allows you to adjust the zeroing of the indicator needle to compensate for the weight of any accessories, grips or to compensate for small variations in the load due to the position of use. The locking system of the pointer allows the reading of transient phenomena or the peak load.

• Easy handling with less risk of malfunctions or glitches caused by external circumstances such as noise or static electricity due to the rugged mechanical construction
• High precision and capacity model which is ideal for precise test
• Measures both compression and tension force
• Captures peak value easily using switchable peak hold function
• Assists accurate measurement with tare ring to adjust zero

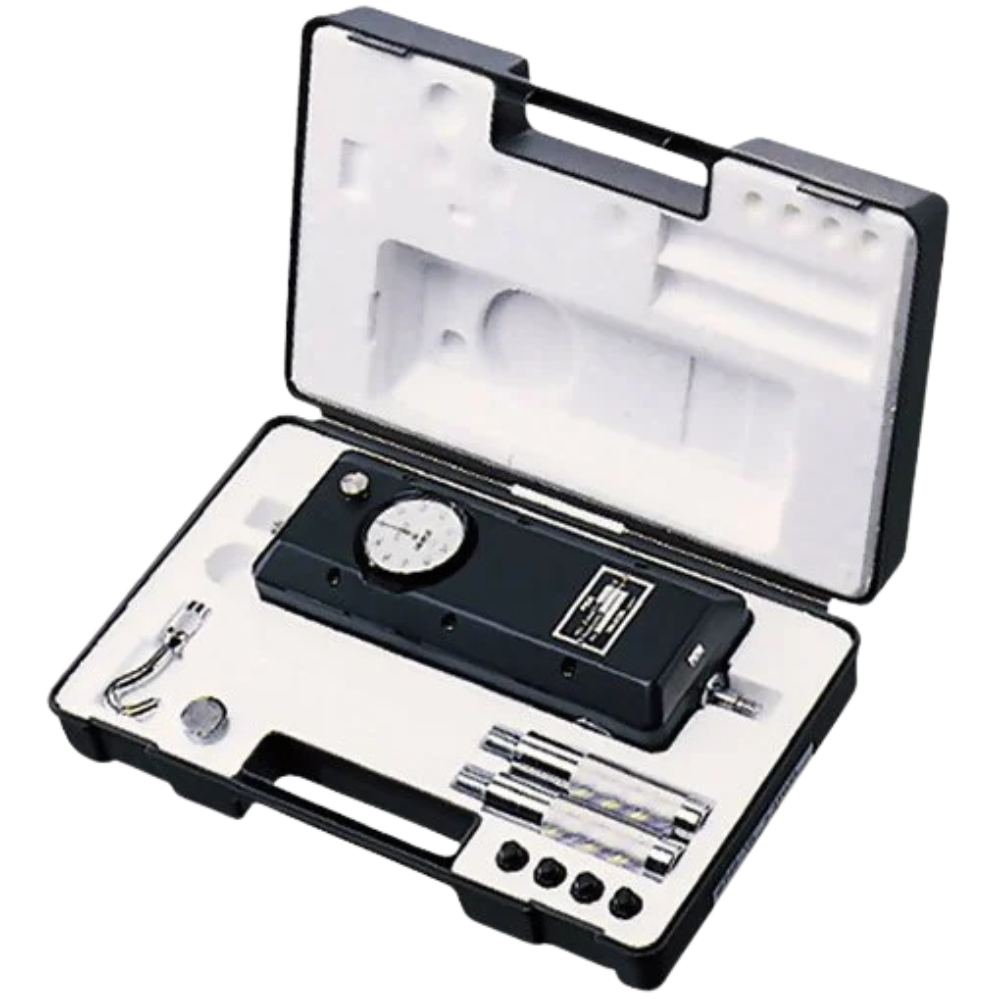

• Transport case made of rigid shock-proof plastic
• Internal padding in shaped polystyrene
• Extension for the measuring terminal
• Conical tip
• Indented tip
• Flat-head tip
• Chisel
• tip Small hook
• tip Large hook tip
• Large fork tip
• Handles
• 4 Fixing screws
